MP–129 Water-Saver
350545 2–11
CONNECTING THE ELECTRICAL CABLES (MP-129 C & D)
Refer to Figure 2–5 and wiring diagram 531181 (included in the water-saver
package).

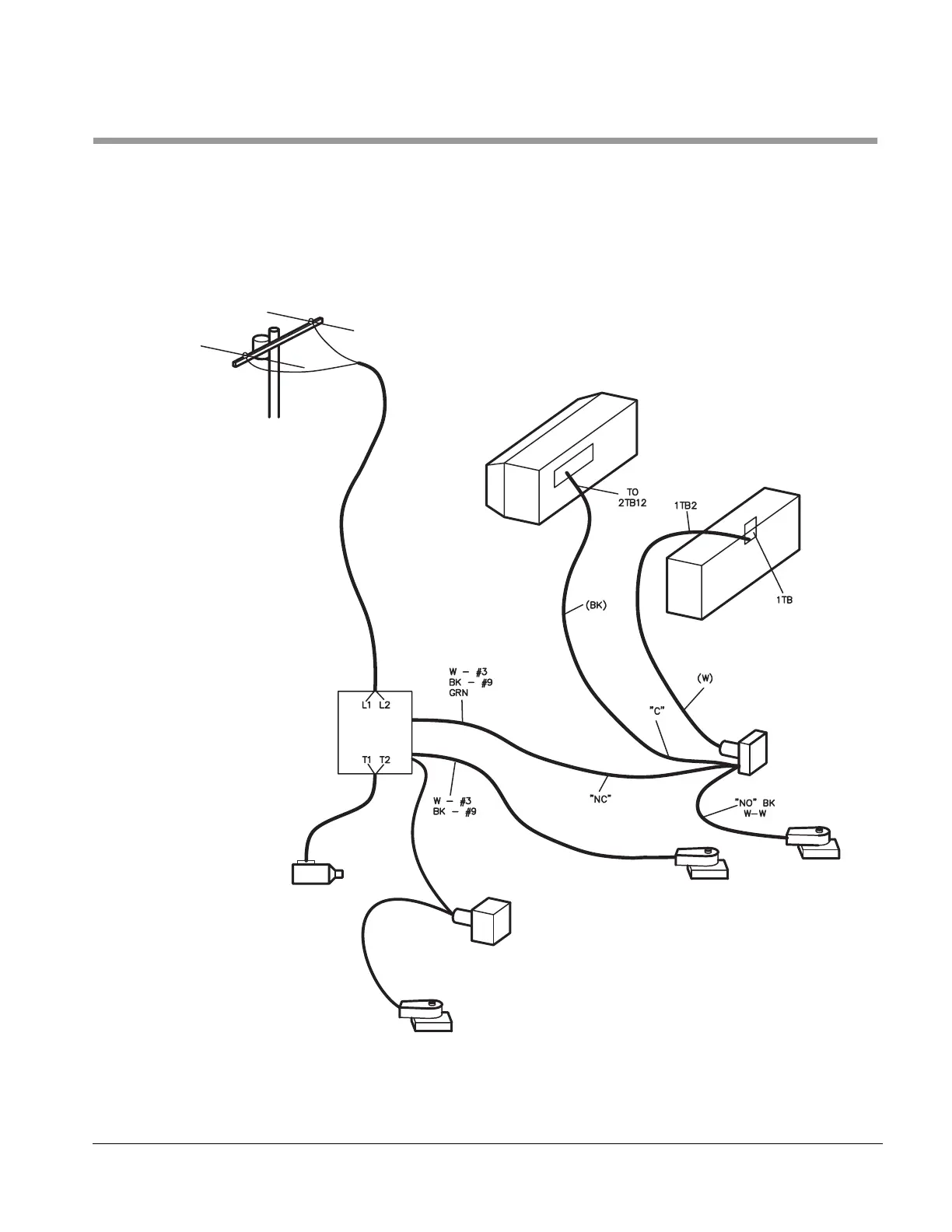

Figure 2–5. CABLE CONNECTIONS (MP-129 C & D)
M/C 4233 – 42" (MP-129C)
M/C 4233 – 76" (MP-129D)
Solenoid Valve
1SV
Temperature
Switch
1S
Pump Motor
Pressure
Switch
1PS
Motor Start
Relay
11A
120 VAC
Power Supply
Sterilizer
Control Box
2A
Sterilizer
Power Box
1A
350545-AA
Solenoid Valve
20SOL
Solenoid Valve
6SOL
