MDE-4699L Applause™ Media System Installation, Service, and Parts Manual · June 2017 Page 5-23
Applause Media System Site Server and Control Center CRIND Type Settings Service
3 Select the check box for any Applause enabled CRIND type on site and click Continue.

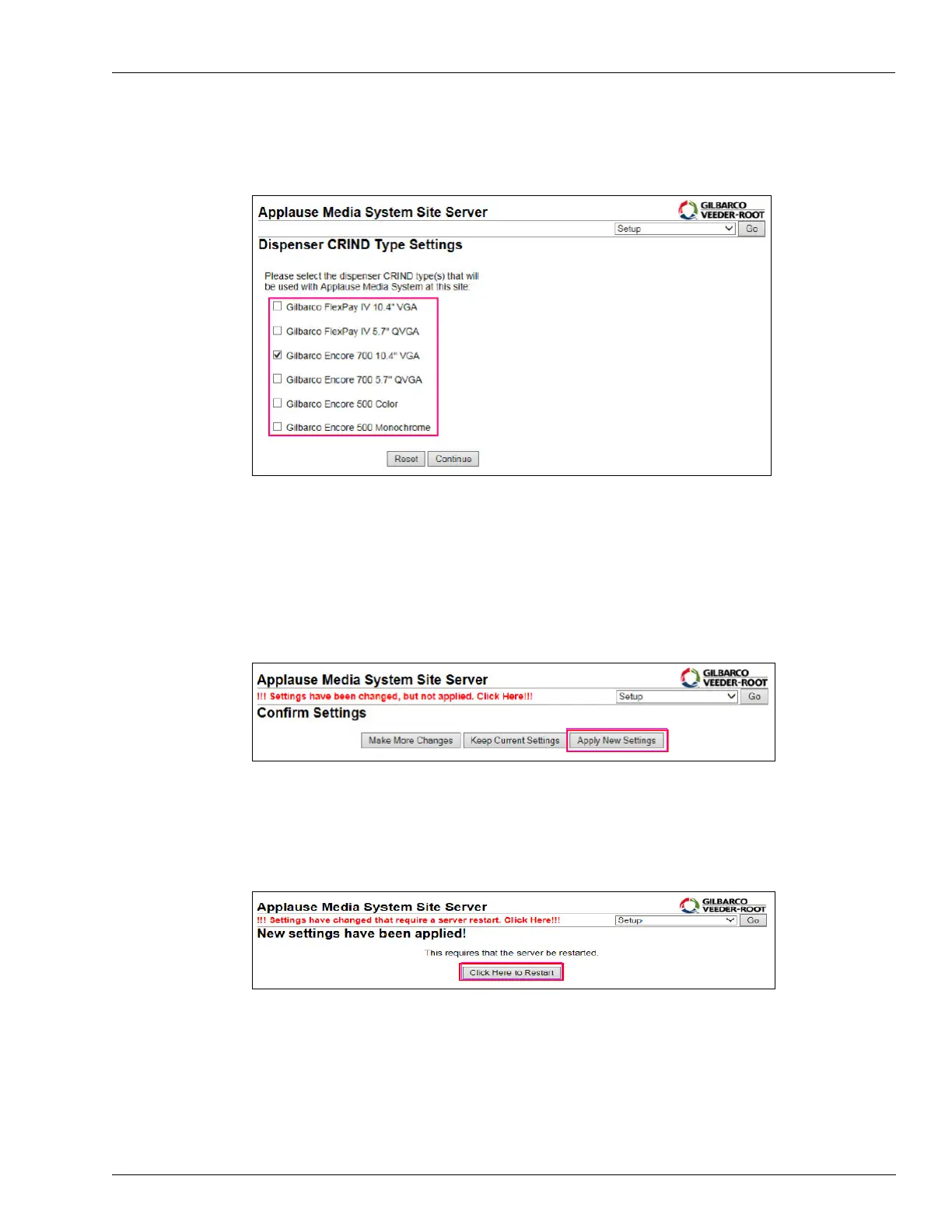

Figure 5-25: Dispenser CRIND Type Settings
Note: For the newly released FlexPay IV 10.4” screen, select “Gilbarco FlexPay IV 10.4”
VGA” and for FlexPay II 10.4” screens select “Gilbarco Encore 700 10.4” VGA”.
4 On applying the changes, the message “!!!Setting shave been changed, but not applied!!!” as
shown in Figure 5-26 will be displayed. Click Apply New Settings t
o continue.
Figure 5-26: Applying New Settings
5 Once the message “!!! Settings have changed that require server restart. Click Here!!!” is
displayed, click Click Here to Restart (see Figure 5-27).
Figure 5-27: Confirm Settings
