Introduction Physical Connectivity

Page 1-6 MDE-5369E FlexPay™ IV (with Omnia) Programming and Service Manual · April 2020

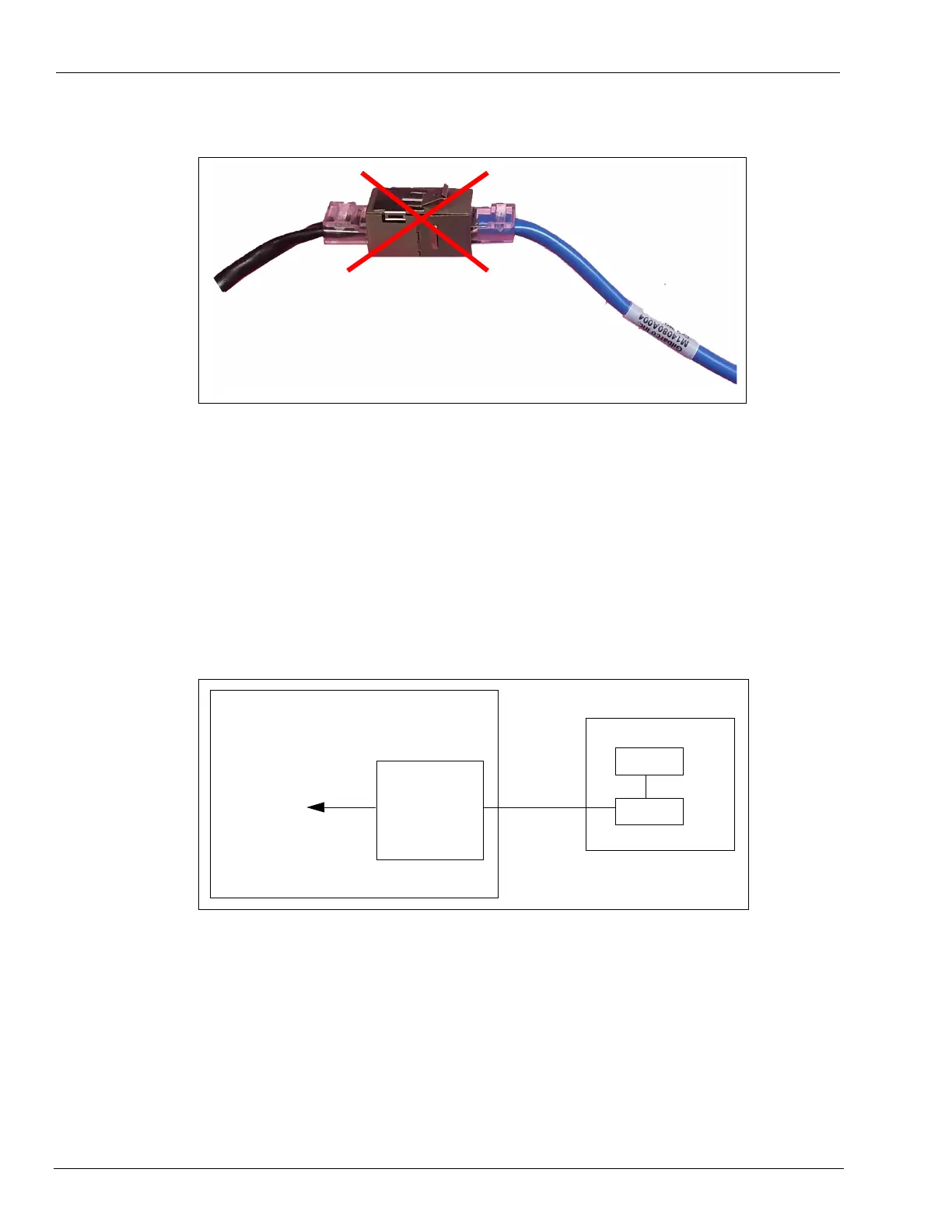

Figure 1-4: Do Not Use Couplers

Using Pre-existing FlexPay Connect v1

Sites equipped with FlexPay Connect v1 do not require any hardware upgrade in the

backroom. These sites can continue to use the existing BRCM.

Replace the Ethernet cable with the M14080A004 Cable provided in the kit to connect to the

pre-existing DCM.

Note: DCM3 is not compatible with a

BRCM (GLRE).

Figure 1-5: Using Pre-existing FlexPay Connect v1 - Backroom Hardware

BRCM

DCM1

CAT5

Dispenser

To Router

Backroom

Two-wire

CAT5

Omnia

BRCM &

TBM2
