Media Configuration for Applause Media System Omnia PCB
MDE-5369E FlexPay™ IV (with Omnia) Programming and Service Manual · April 2020 Page 5-23
Media Configuration for Applause Media System
To view, modify, and test the Applause Media System configuration on dispensers equipped
with FlexPay IV and Omnia, proceed as follows:
1 Select the Media tab on the left sidebar of the web page.

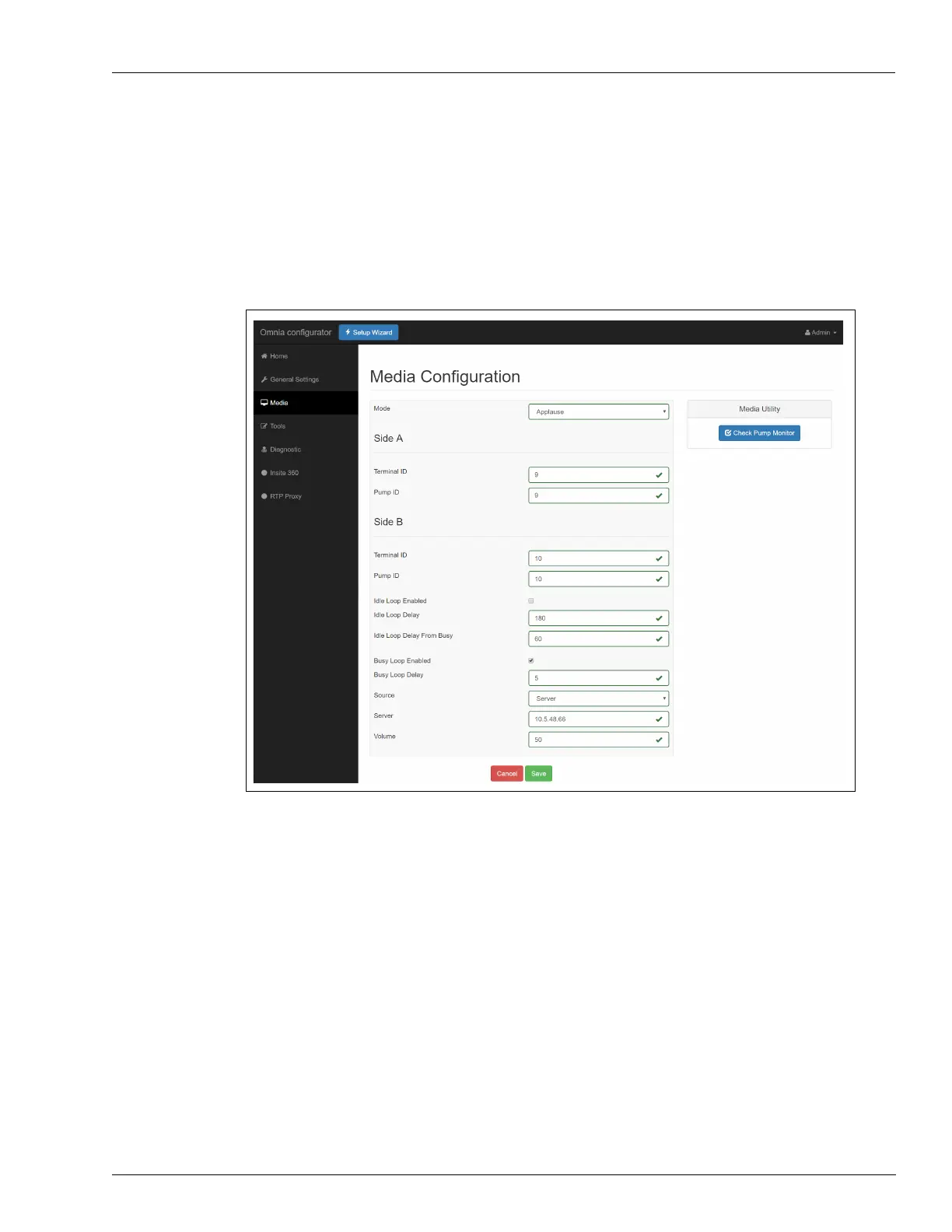

Figure 5-33: Media Configuration for Applause Media System
2 Click Save.
3 Click Check Pump Monitor in the Media Utility section.
Note: Side A/B A/V, Idle and Busy tests were r
emoved and replaced with “Diagnostic A/V
tests” in version 03.02 and higher. For more information, refer to “Omnia Diagnostic”
on page 5-45.
