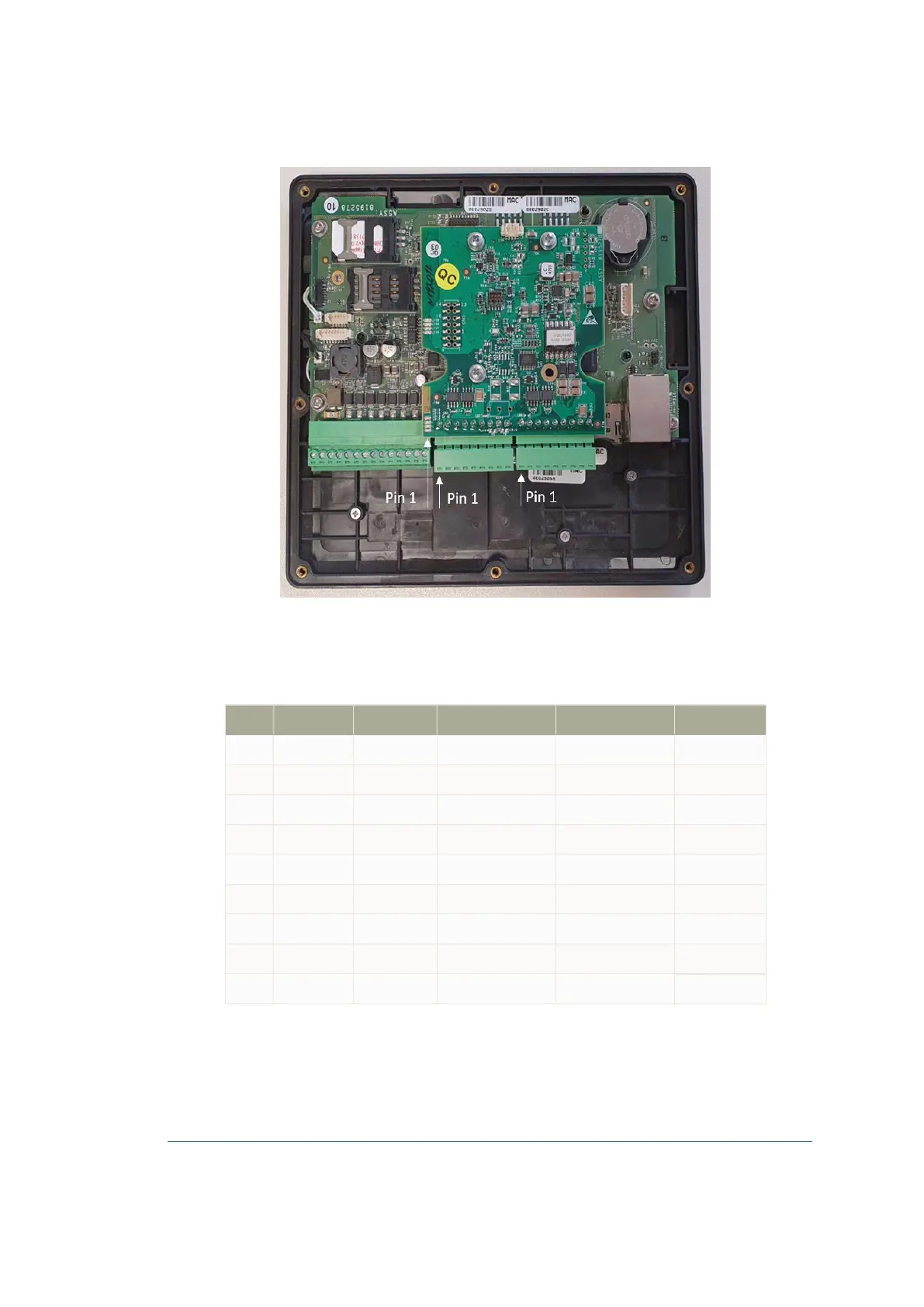

Figure 2-8 - MPI-CBoard

2.4.3.4. PI 4xTK

Pin Channel Function Description Comm. Interface Comm. Type

1 CH1 CH1_TTC Talks to console

2 CH1 CH1_TTD Talks to dispenser

3 CH1 CH1_G GND

4 n.c. n.c. n.c.

5 CH2 CH2_TTC Talks to console

6 CH2 CH2_TTD Talks to dispenser

7 CH2 CH2_G GND

8 n.c. n.c. n.c.

9 Earth Protection Earth

Table 2-18 - PI4xTK - CN1

14 OrPAY1000 Installation and Setup Manual
