Pin Channel Function Description Comm. Interface Comm. Type

1 CH3 CH3_TTC Talks to console

2 CH3 CH3_TTD Talks to dispenser

3 CH3 CH3_G GND

4 n.c. n.c. n.c.

5 CH4 CH4_TTC Talks to console

6 CH4 CH4_TTD Talks to dispenser

7 CH4 CH4_G GND

8 n.c. n.c. n.c.

9 Earth Protection Earth

Table 2-19 - PI4xTK - CN3

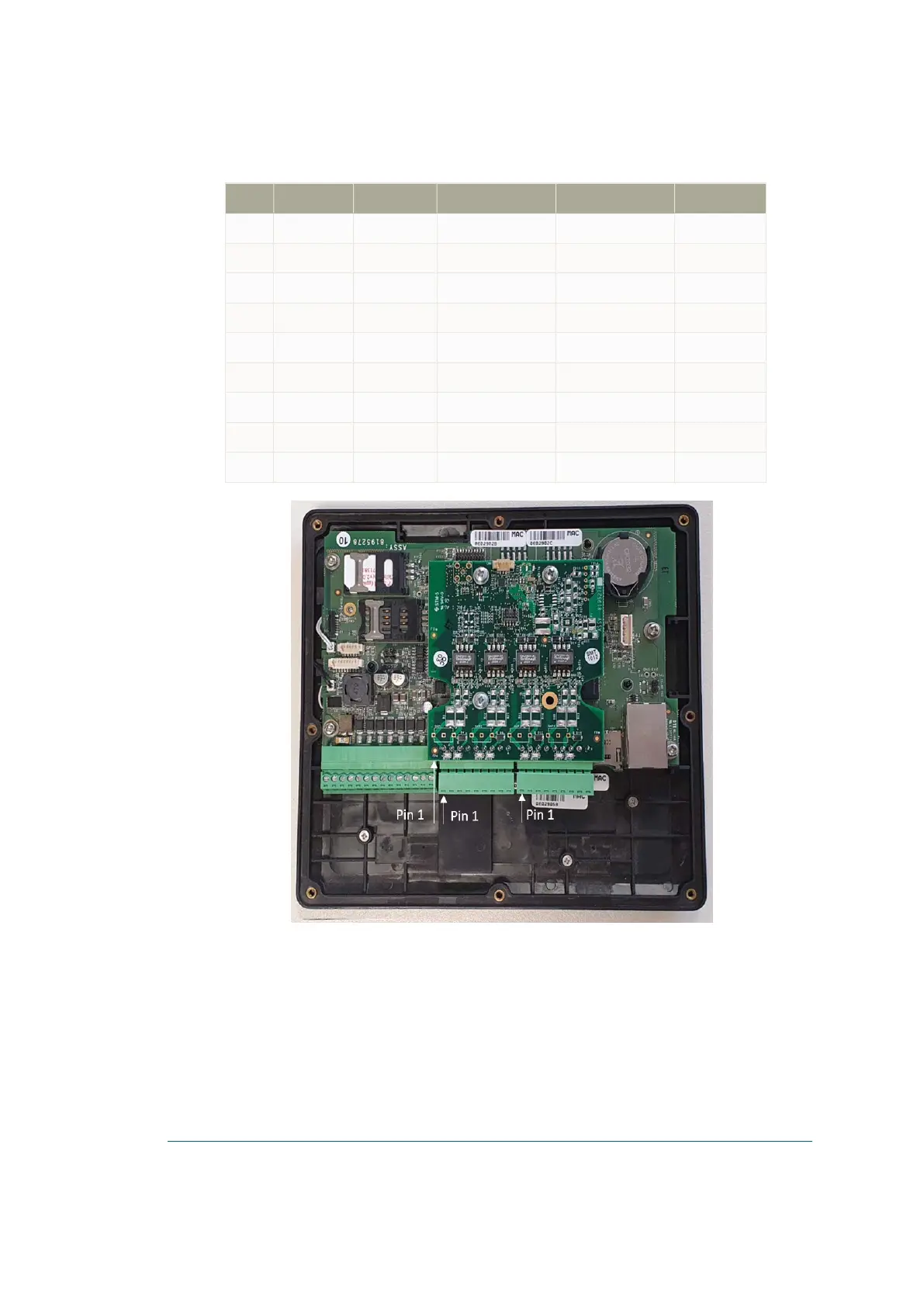

Figure 2-9 - TokheimBoard

OrPAY1000 Installation and Setup Manual 15
