GILBARCO VEEDER-ROOT Orpak OrPAY1000 User Manual

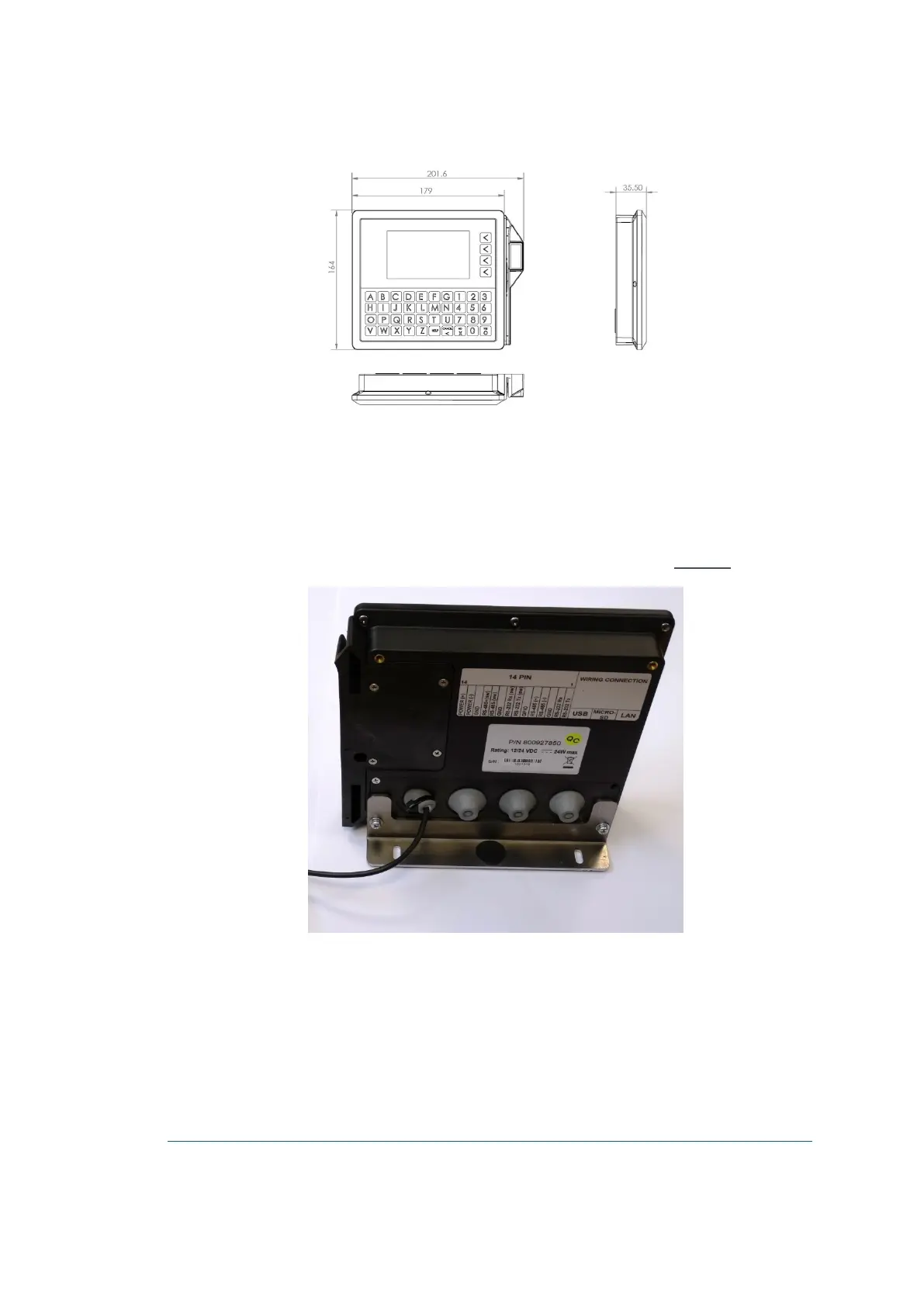

Figure 3-1 - Dimensions
Hinging
Design an enclosure and/or door to house the OrPAY1000. This will ensure there is a clearance between the
OrPAY1000 housing and the opening. Right-side hinging is recommended by Orpak.
OrPAY1000 can be installed on top of the pump or hang on the wall (or pump). To install OrPAY1000 on top
of the pump you need an L-bracket and to mount it on the wall you need a surface mounting bracket.
The following displays OrPAY1000 attached on top of the pump with an L-bracket (see Figure 3-2):
Figure 3-2 - OrPAY1000 on top of Pump with L-Bracket
Fire
The enclosure must be designed to meet the requirements of ISO/EN 60950-1 for fire enclosures.
ATEX (Explosive Atmospheres)
21 OrPAY1000 Installation and Setup Manual
