GKB 4CH/8CH VFire Server
18
n POS system
Connect the RS-485 connector to POS system via the appropriate cable. The
system supports the POS systems which can be connected to the following
printers – Epson-TM200, Epson-TMU295, Epson-TMU300, Epson-TMU675,
Epson-TMT882, Epson-RPU420, and Epson-MD332S. Please make sure to
setup the RS-485 port (Section 6.9) accordingly.

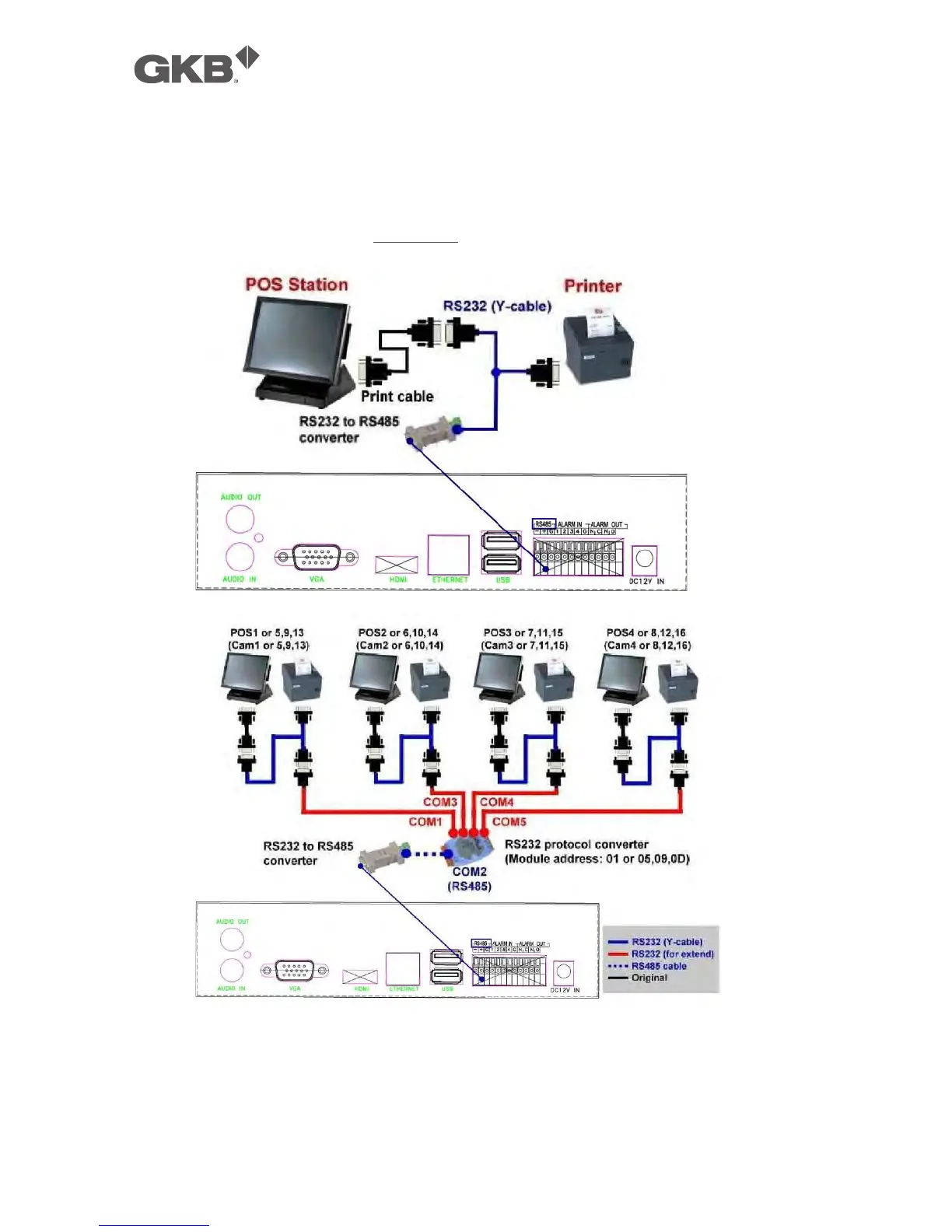

Top figure: 1-to-1; bottom figure: RS-232/Multiple, 1-to-many
