GKB 4CH/8CH VFire Server
15
3. Installations
The installations described below should be made by qualified service personnel
or system installers.
3.1 Basic Connections

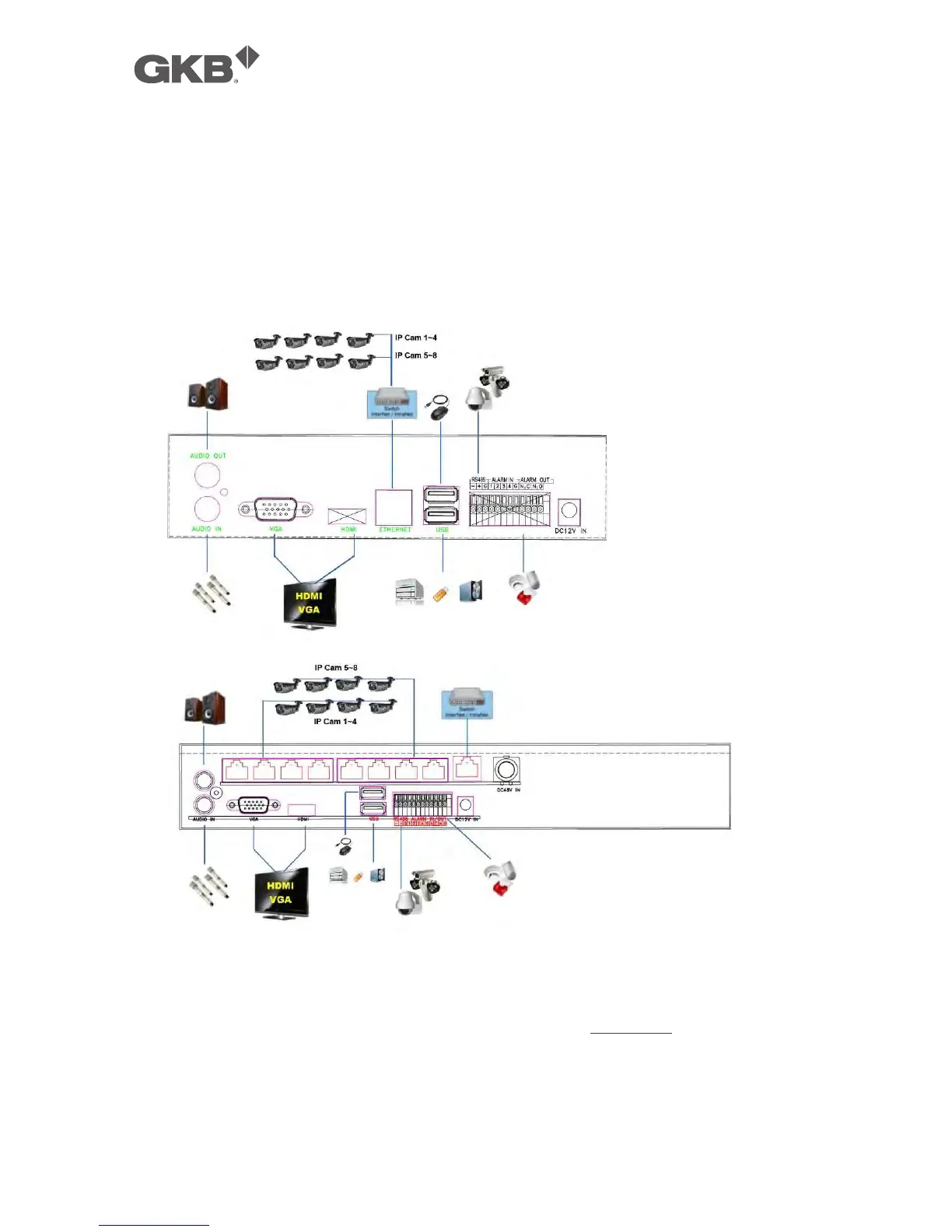

Please refer to the following diagram for the connections.
n Cameras
Connect the IP-CAM to the upper Ethernet ports for PoE models or to the LAN
connected to the lower Ethernet port for non-PoE models. Please make sure
to setup the related configurations as described in Section 6.1.
n Main monitor
Connect the main monitor output connector (VGA/HDMI) to a surveillance
TV/VGA monitor. The TV/VGA monitor displays selected live or recorded
To Next Page
