GKB 4CH - Back Panel

GKB 4CH/8CH VFire Server
10

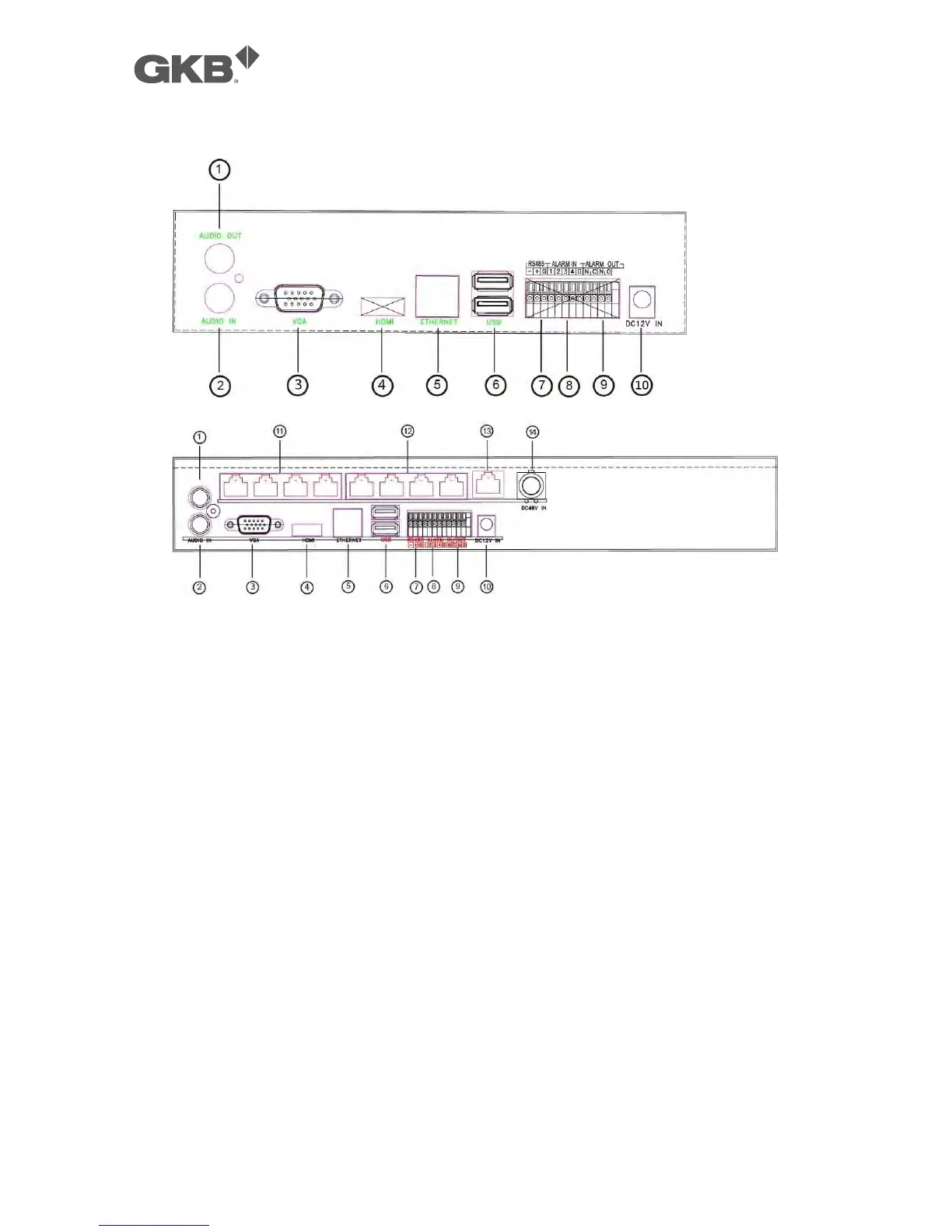

2.2 Back Panel
1. Audio Output Connector (AUDIO OUT)
The connector supplies line-out audio signal to external devices such as
speakers. Recorded audio will be supplied from AUDIO OUT during playback.
2. Audio Input Connectors (AUDIO IN)
The RCA connector accepts line-in audio signals supplied from external devices
such as microphone amplifiers.
3. Main Monitor Output VGA Connector (VGA)
Connect VGA monitor to the optional D-SUB 15-pin female connector for main
monitor display.
4. HDMI Connector
Connect HDMI monitor to the HDMI connector for main monitor display.
5. Ethernet Connector
Connect this unit to a 10/100Base-T Ethernet network through this port. Please
note this connector is useless if PoE module is used (11-14).
6. USB Connectors
Connect to USB 2.0 compatible mouse, pen drive, etc.
