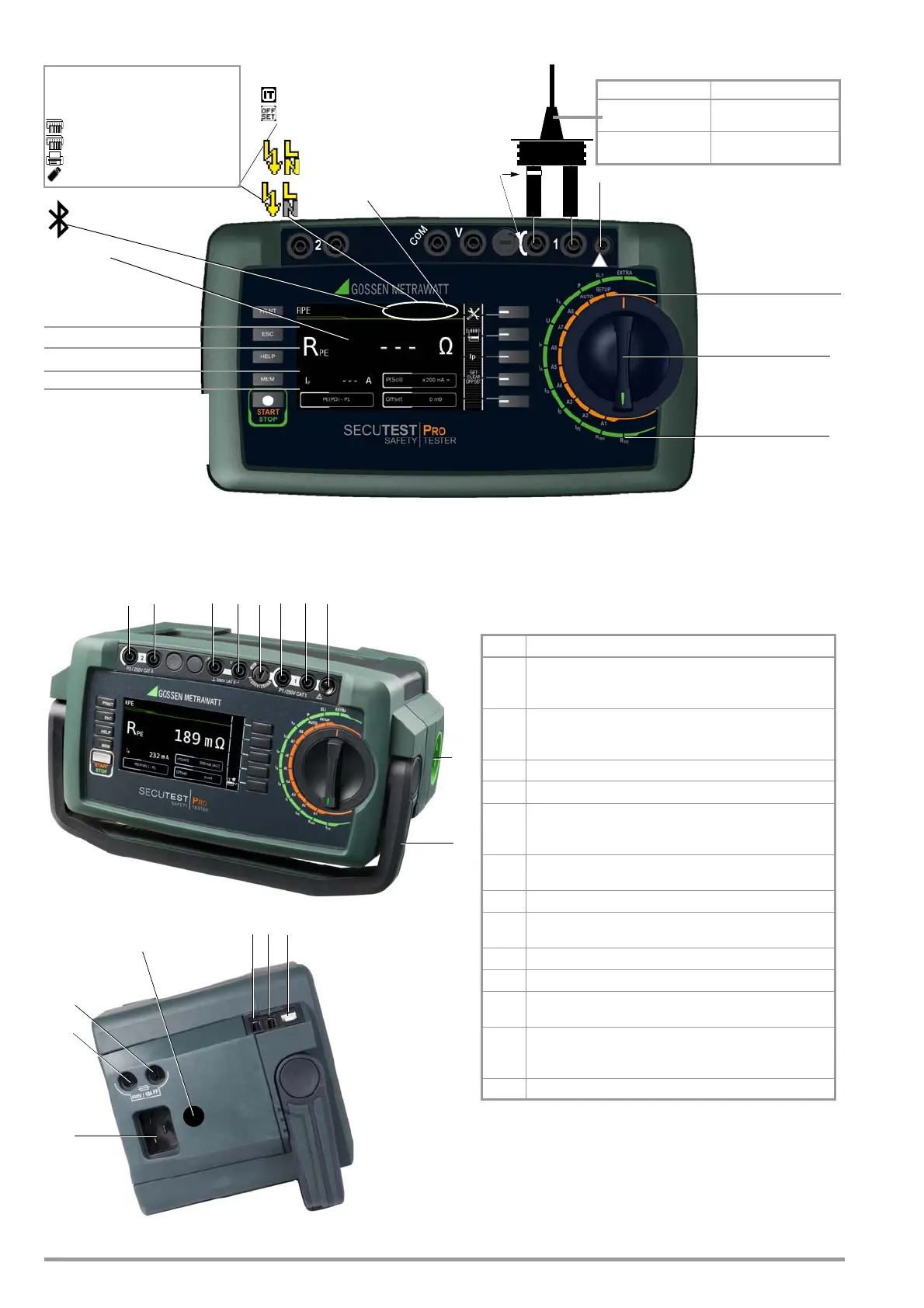

Controls
Connections
These operating instructions describe an instrument with software version FW3.0.0.
Rotary selector switch
LCD panel
Single measurements
Sequences A1 ... A8, AUTO
(automatic test sequences)
MEM: database functions
ESC: back
Fixed Function Keys
HELP: help images
START: start/stop
– Single measurement
– Test sequence
Finger Contact
PRINT: print via USB
Rotary switch level:
Rotary switch level:
Softkeys
Test Probe
!
Supply power connection SECUTEST CLIP (Z745H)
White identified
and fused high
current path
– For keyboard *
– For Barcode/RFID scanner *
– For printer
– For USB flash drive
Display of symbols for devices
connected to the USB master
interface (see below)
Display of special symbols:
– Measurement at IT system active
– Offset for RPE active
* The receiver must be plugged in here for wireless entry devices.
** Only displayed in case of active connection to another Bluetooth device
Bluetooth
®
** (feature M01)
Parameters: see page 86
®
Probe Type Applications
Strain relief sleeve,
black
Test current: 200 mA / 10 A
max. 16 A
SK2-25A (Z746C)
Strain relief sleeve, green
Test current: 200 mA / 25 A
max. 25 A
Mains to test socket
Mains to test socket
N interrupted
orange
green
1
SECUTEST BASE10/PRO (feature G01)
2
A list of suitable devices is included in the appendix (see section 14)
No. Meaning
1
2
nd
test probe P2 for 2-pole measurement
(only with SECUTEST PRO or instrument with
feature H01)
2
Voltage measuring inputs
(only with SECUTEST PRO or instrument with
feature I01)
3
Fuse link for probe input P1
4
Test probe connection (P1)
5
Connection (jack socket) for supplying power to
the SECUTEST CLIP (Z745H), see also operating
instructions for leakage current clamp meter
6
Country-specific standard socket (test socket)
for connecting devices under test
7
Carrying handle and tilt stand
8
Country-specific socket for mains power via inlet
plug
9
Fuse link 1 for the mains connection
10
Fuse link 2 for the mains connection
11
Additional fuse link
for 10 A
1
protective conductor test
12
USB master for connecting keyboard, barcode/
RFID scanner
2
, printer
2
and USB flash drive
2
(must be FAT32 formatted – not NTFS)
13
USB slave for connection to a PC
3 454
6
7
9
10
8
11
12 13
2211
