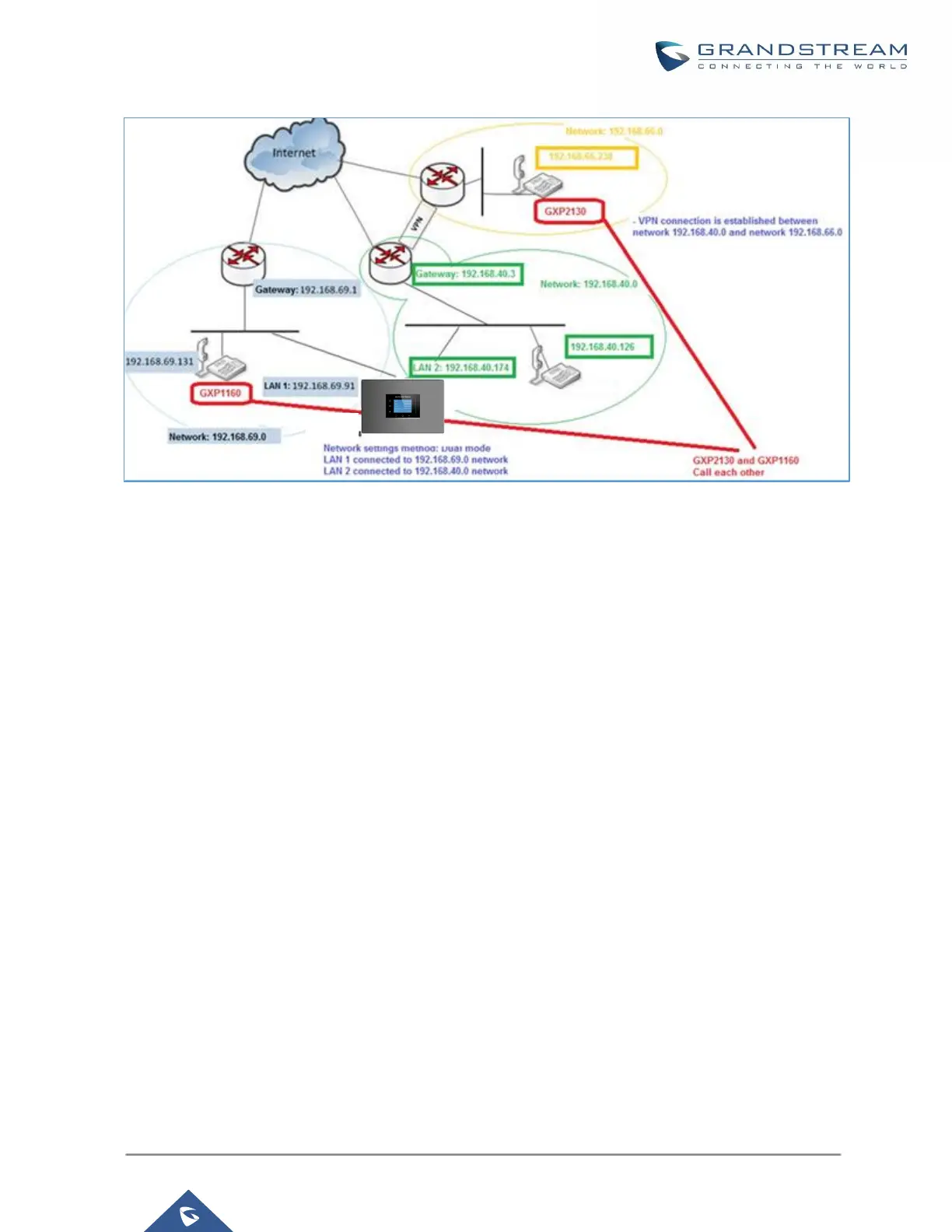

Figure 22: UCM6304A Static Route Sample
The network topology of the above diagram is as below:
 Network 192.168.69.0 has IP phones registered to UCM6304A LAN 1 address
 Network 192.168.40.0 has IP phones registered to UCM6304A LAN 2 address
 Network 192.168.66.0 has IP phones registered to UCM6304A via VPN
 Network 192.168.40.0 has VPN connection established with network 192.168.66.0
In this network, by default the IP phones in network 192.168.69.0 are unable to call IP phones in network
192.168.66.0 when registered on different interfaces on the UCM6304A. Therefore, we need configure a static
route on the UCM6304A so that the phones in isolated networks can make calls between each other.
