GRAUPNER mz-32 HoTT User Manual

Page 13 of 49 S1024.mz-32-V2.1-EN

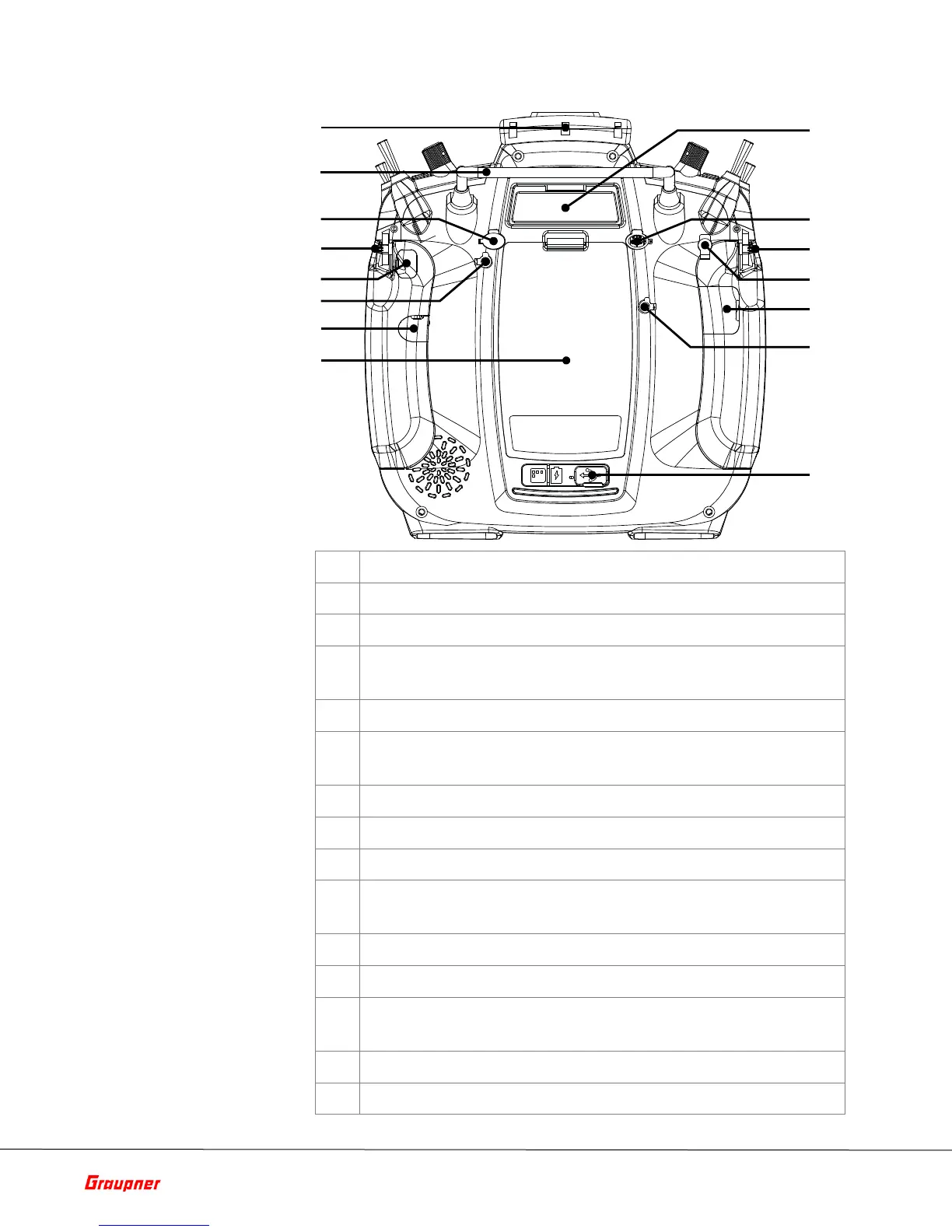

Transmitter Backside
1 Battery case cover
2 Gimbal tension screw for horizontal control function
3 no function
4
Gimbal tension screw for vertical control. Lower
screw is for tension of the control stick
5 Proportional rotary control LV2
6
Inner screw adjusts brake force
Outer screw adjusts ratchet's strength
7 Transmitter handle
8 Foldable transmitter antenna
9 Cover flap for audio, COMM, DATA and DSC connection
10
Inner screw adjusts brake force
Outer screw adjusts ratchet's strength
11 Proportional rotary control LV1
12 Gimbal tension screw for horizontal control function
13
Gimbal tension screw for vertical control. Lower
screw is for tension of the control stick
14 no function
15 Cover of the USB connection
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
