Digital Switches
The mz-32 HoTT transmitter features 64 digital switches. These can be
found in the “Special” menu and can be defined, activated and switched in
the submenu “Digital Switch”. In addition, each of these 64 Digital Switches
can be arbitrarily placed as a widget on one of the widget pages and
operated from there.
Available switching functions are:
• ON/OFF switching function
• Pulsating switching function
• Momentary switching function (0- 10 seconds)
On the receiver side, these digital switches can be assigned to the
respectively desired switching channel. Mapping a digital switch to a
receiver channel can be done in the “RF Set” menu or directly on the
receiver using the “Telemetry” Setting & Data View ASCII menu.
Note
This function is only available with receivers that have been updated with
the current firmware release.
When setting digital switches verify that only the intended receiver where
such assignment is to be made is active. No other receiver should be active.
Assigning Digital Switches in RF Set
1. Bind the receiver you wish to assign to a digital switch and verify no
other receiver is active.
2. Switch to the submenu “RF Set” of the basic menu.
3. Select the receiver you would like to use by tapping on the blue field
which is the active receiver.
4. By tapping the blue field with the receiver type a selection window
appears.
5. Tap the channel number for which you would like to assign a digital
switch.

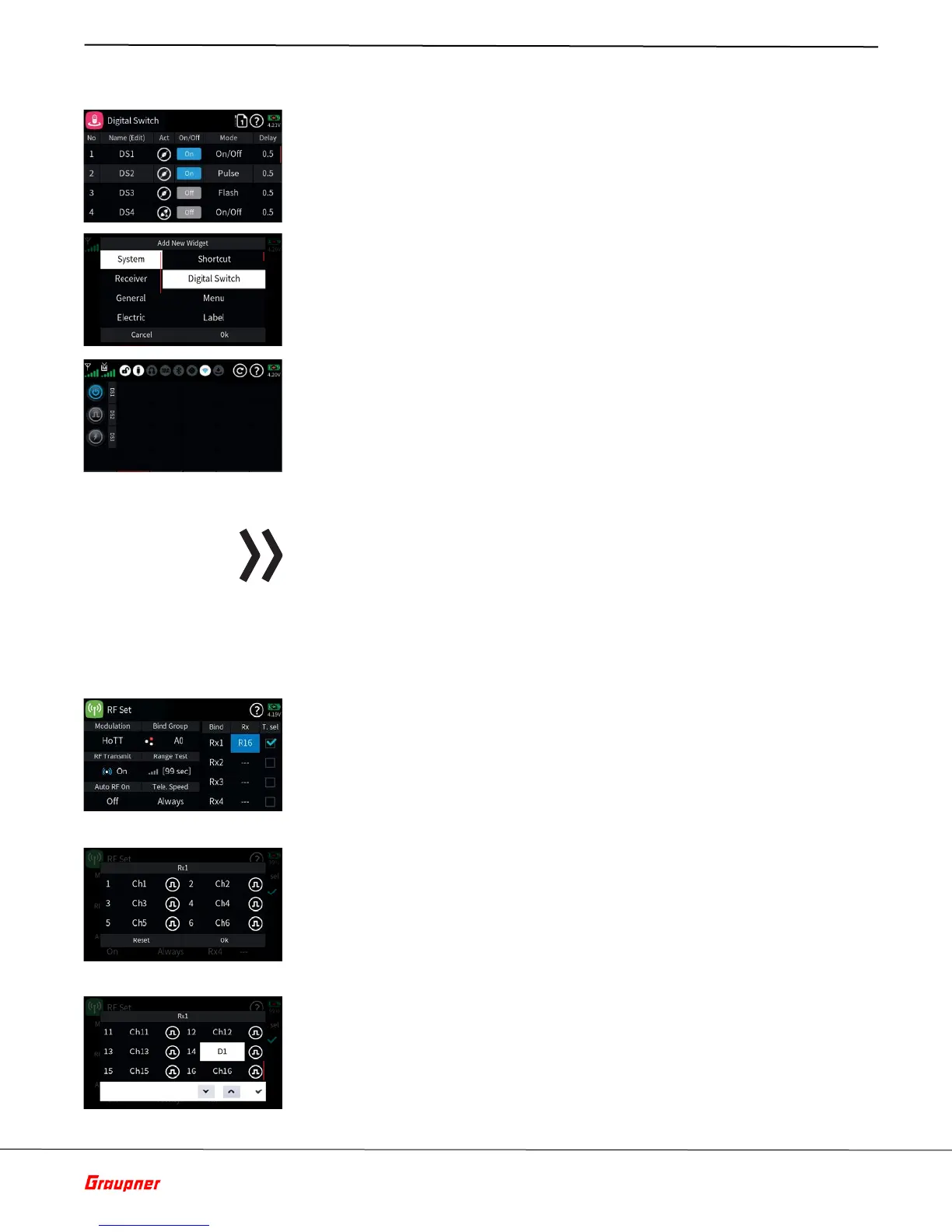

The tapped field is displayed inverted and a control panel is displayed
at the bottom (see left figure).
6. Use the “”- or “” buttons to assign the desired Digital Switch to the
selected receiver channel.
In the illustration on the left, for example, the digital switch “D1” is
selected at the receiver connection 14 of the receiver (the bound
receiver is a GR-32, 16 channel receiver but you can use any HoTT
