Page 29 of 49 S1024.mz-32-V2.1-EN
Range Test
When the range test starts, the output of the transmitter is significantly
decreased. A practical functional test can therefore be performed at less
than 100 m or 300 ft. After the end of the range test, the transmitter
switches back to full output power and the range test signal tone stops.
If necessary, ask someone for help.
1. Verify that the receiver and transmitter are communicating properly
and that all control surfaces are functional.
2. Place the model on a flat surface (cement, mowed lawn or ground)
with the receiver antenna at least 15 cm or 6 in above ground.
3. Hold the transmitter at hip level at a slight distance from your body.

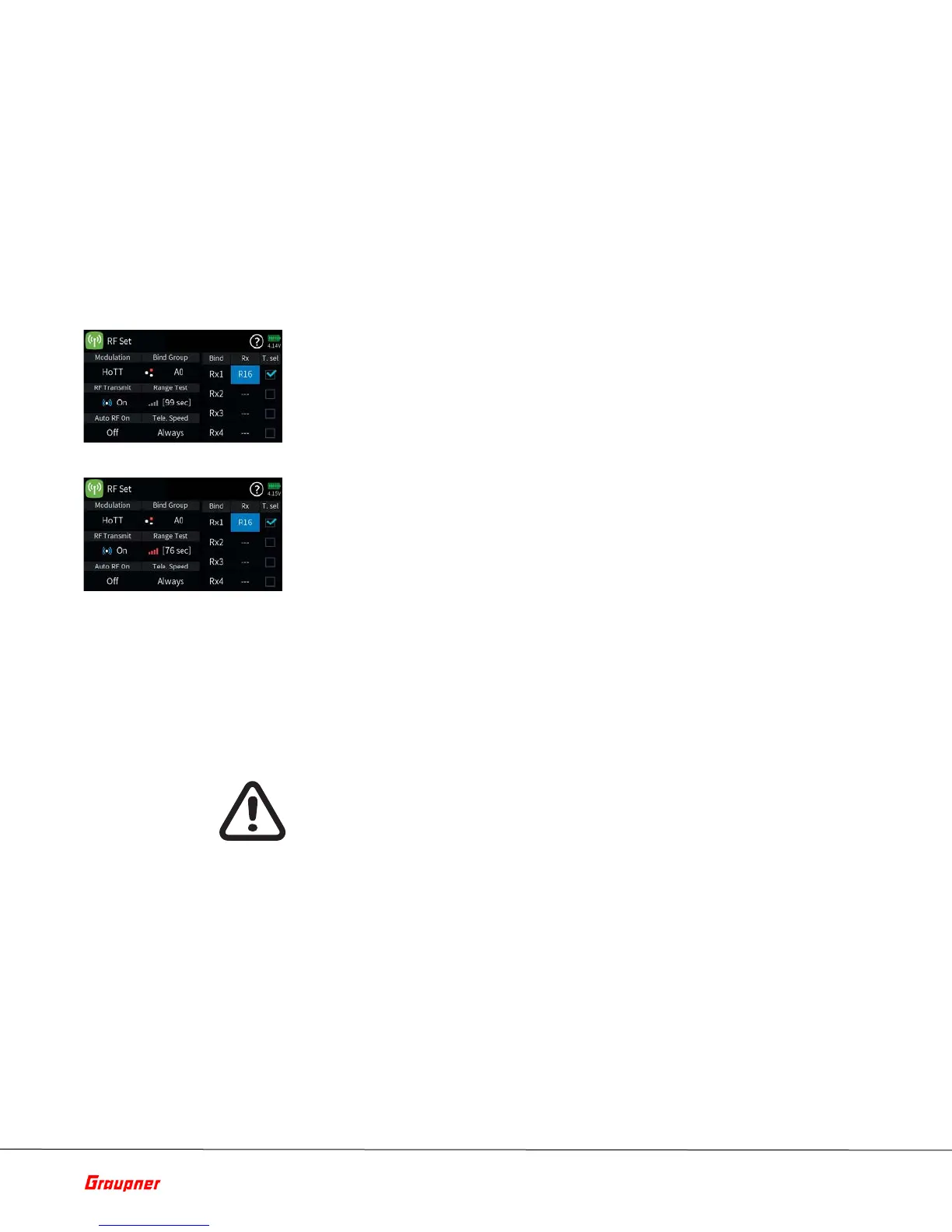

4. Start the range test in the "RF Set" menu by tapping the icon in the
“Range Test” field.
5. The time display begins to count down and a beep will sound
throughout the entire range test.
6. Move away from the model within the given 99 seconds range test
and move the control sticks while maintaining visual contact.
7. If you notice an interruption in the connection at any time within a
distance of about 50 m or 160 ft, try to reproduce it. Try to re-position
the receiver antenna and repeat the range test.
8. If possible, switch on an existing motor, to additionally check the
interference resistance.
9. Carry out the extended range test before starting up your model,
simulating all the control movements occurring in practice. To
guarantee a safe model operation, the range must always be at least
50 m or 160 ft on the ground.
CAUTION
Never start a range test on the transmitter during normal model operation!
