Both the control characteristics in the submenu Control Set in the basic
menu as well as virtually all mixer programming is essentially done in the
same way. The corresponding procedure is shown below with reference to
the throttle curve.
However, the settings shown have a purely demonstrative purposes only
and do not represent real throttle behavior!
Selecting a Curve
1. Enter the desired submenu.
Here is an example of the submenu “Control Set”.

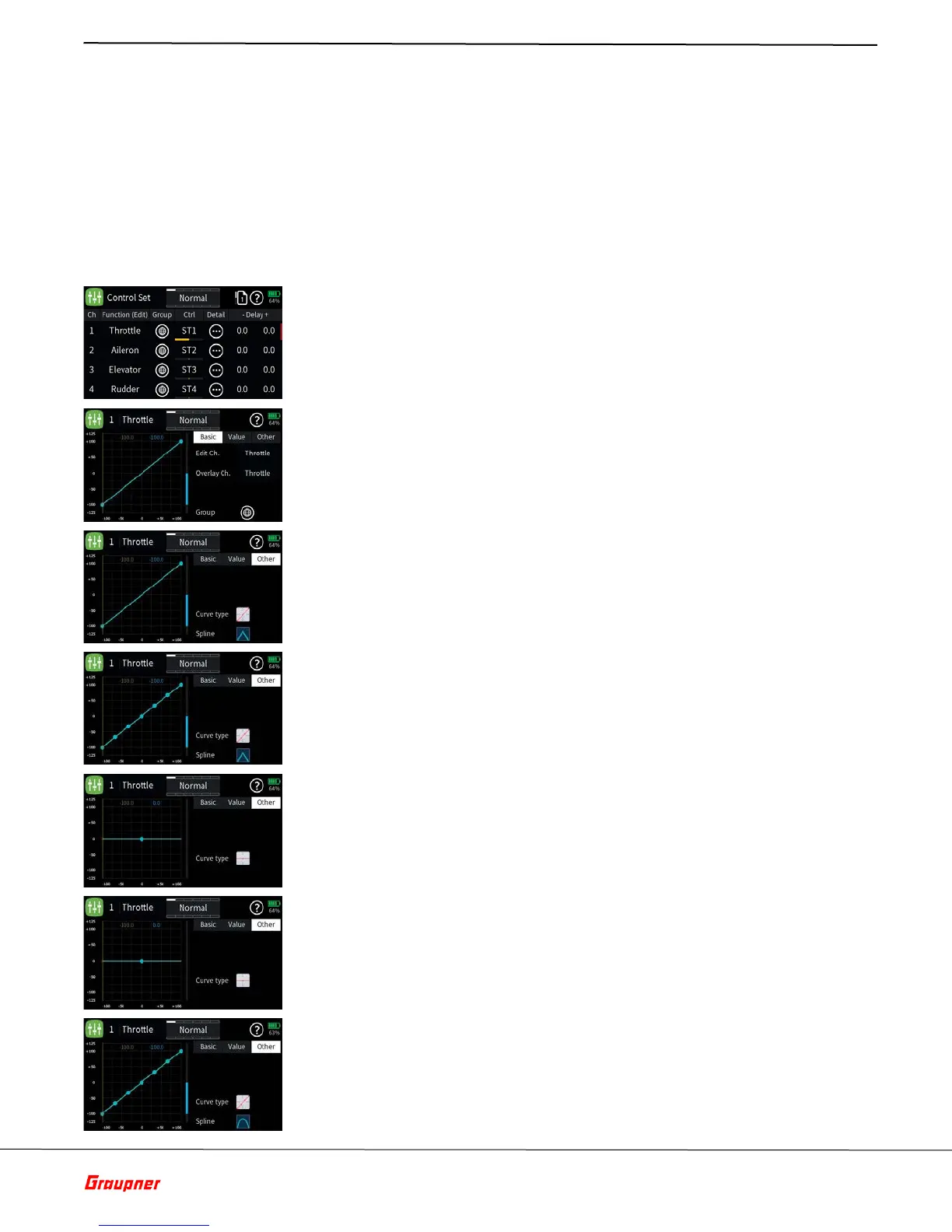

2. On the desired channel touch the detail icon in the “Detail” column
for example, throttle.
The display shown on the left will show which is the Basic menu.
3. Tap on the “Other” field in the upper right corner.
The display shown on the left will show which is the Other menu
4. Tap on the “Curve type” icon to select a curve.
Each tap will show a different curve type
The choices are:
• A linear characteristic without points between the endpoints. This
characteristic corresponds to the standard setting.
• A linear characteristic with 5 points evenly distributed between
the endpoints. This characteristic is to be selected as the basis of
non-linear characteristics.
• A horizontal curve with a single point in the middle of the control.
The horizontal characteristic curve can only be moved vertically
and used, for example as a control offset for a channel for throttle
curves or flight controller settings.
5. If needed you can tap on the “Spline” icon which determines if the
curve should be “square” or “curved”.
