Description of the machine
2. Rear view of the machine
Each connection meets one of the following safety levels:
- Dangerous voltage.
- SELV (Safety extra-low voltage).

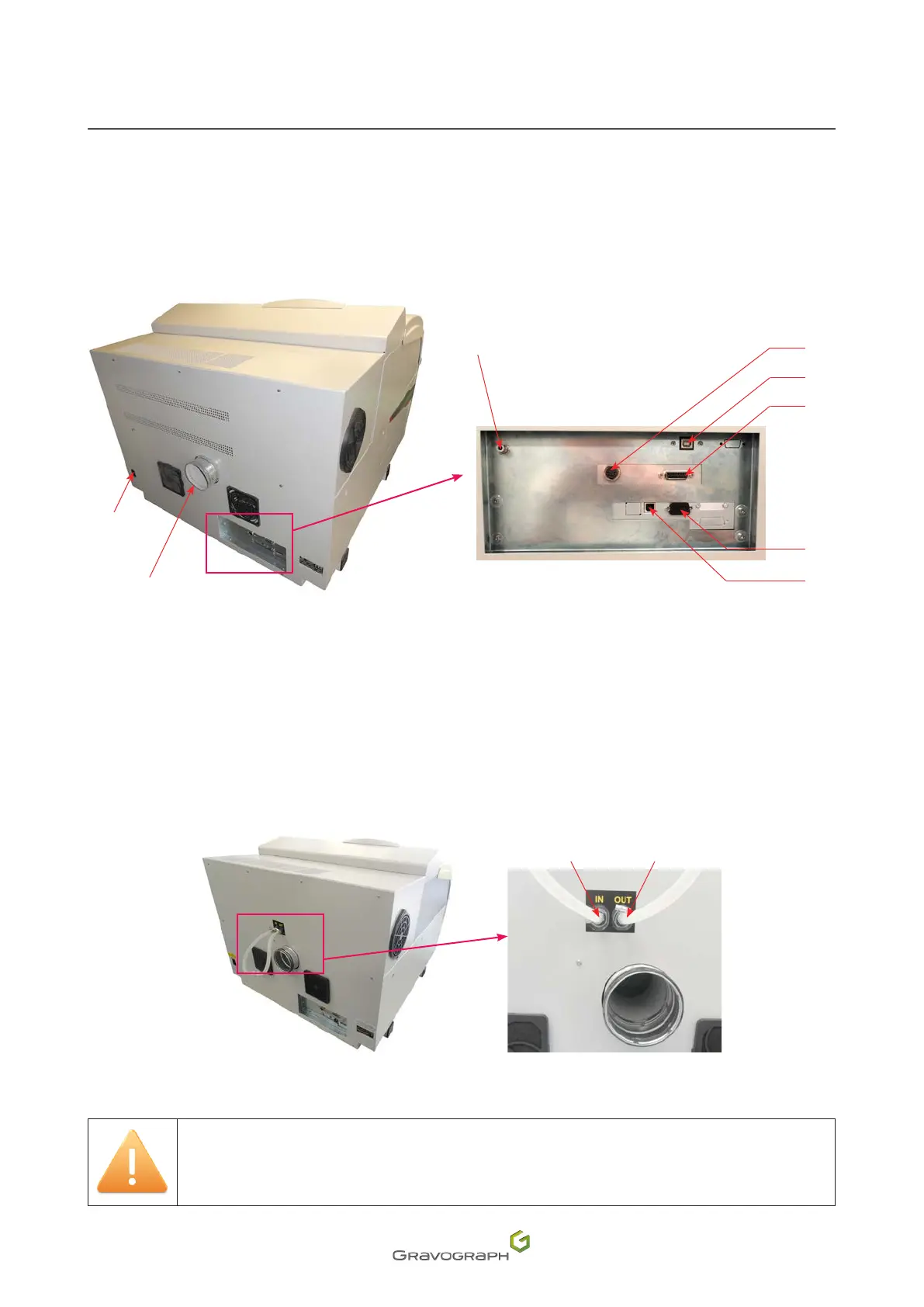

View of connectors
4
6
2
7
8
1
3
5
For all machines:
1. Power inlet / outlet - Dangerous voltage
2. Opening for air evacuation hose to air extraction system
3. Pneumatic connection for tube - Air assist
4. Input/outputlink:Airextractionsystem-SELV
5. Port: USB - SELV: Print and Cut
6. Standardinput/outputlink-SELV
7. Do not use (The protective cap should not be removed under any circumstances.)
8. Port: USB - SELV: PC
only for ENERGY machines:
9 10
9. Hot water outlet (OUT) leading to the water chiller.
10. Cooledwaterintake(IN)comingfromthewaterchiller.
To avoid the risk of electrocution, always unplug the power cable before removing the
protective cover.
