GRAVOGRAPH LS900 XP - Connections and Installation; Water Chiller Power Supply Connection

38
M_LS900 XP IQ Energy_EN_B
J. Connections - Installation
1. Power supply connection Water chiller (only for ENERGY machines)
2

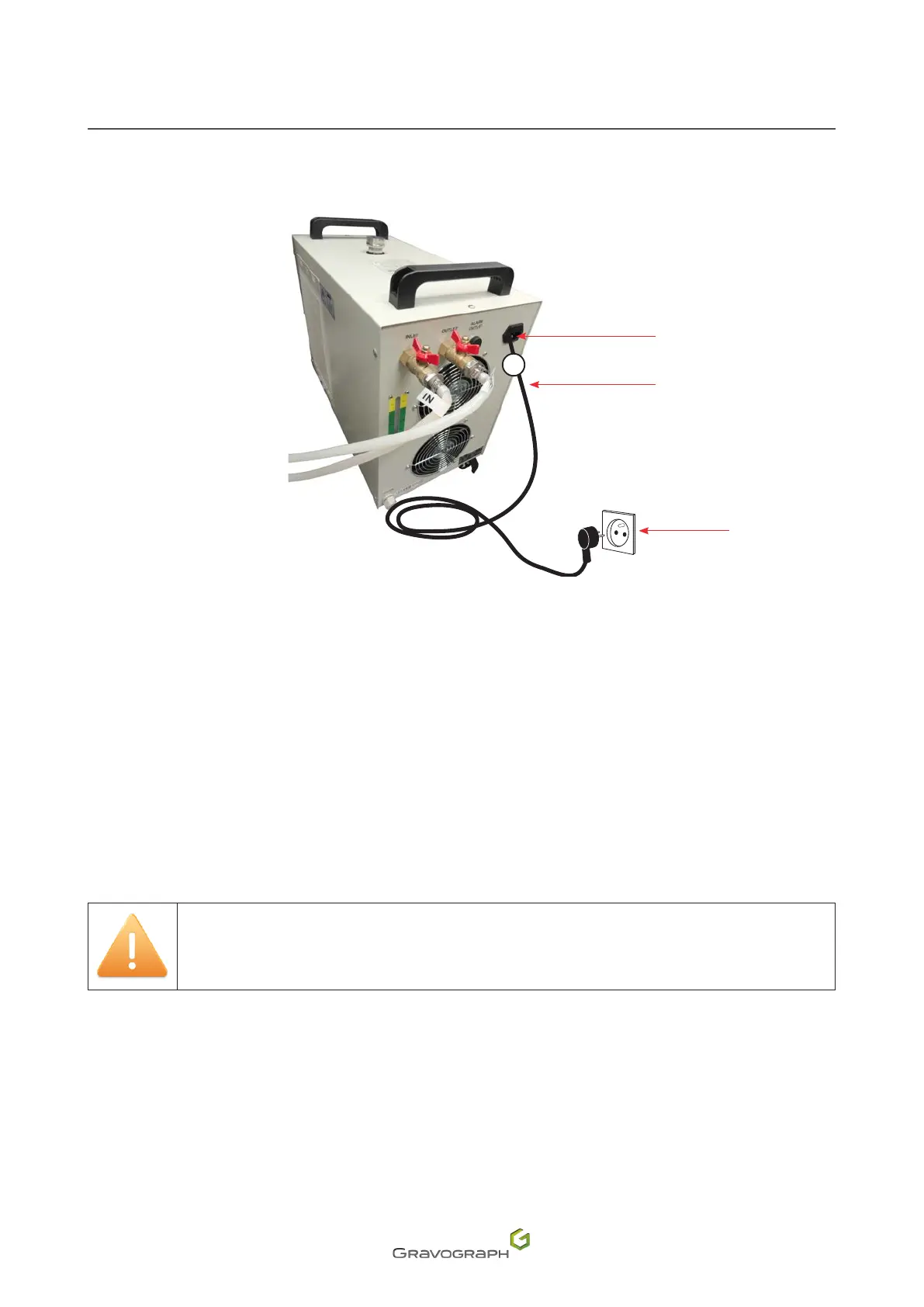

1. Power inlet / outlet - Dangerous voltage
2. Power cable
3. Mains outlet
1. Connect the power cord to the chiller socket and then plug into the mains socket.
To cut the power supply to the chiller in the event of a major problem, unplug the power cord or actuate the
general stop button on the chiller.
 Switching on the chiller
Place the switch in the "I" position (On).
• The pump starts up immediately. The green indicator light illuminates and no alert is sounded.
• The screen displays the current water temperature.
Always switch on the chiller before the machine.
Check that the water cooling circuit is operating properly. Check that water cannot leak
onto the electronic components of the machine.
