M_LS900 XP IQ Energy_EN_B

K. Connections - Installation

1. Unblockingthehead(shippingposition)

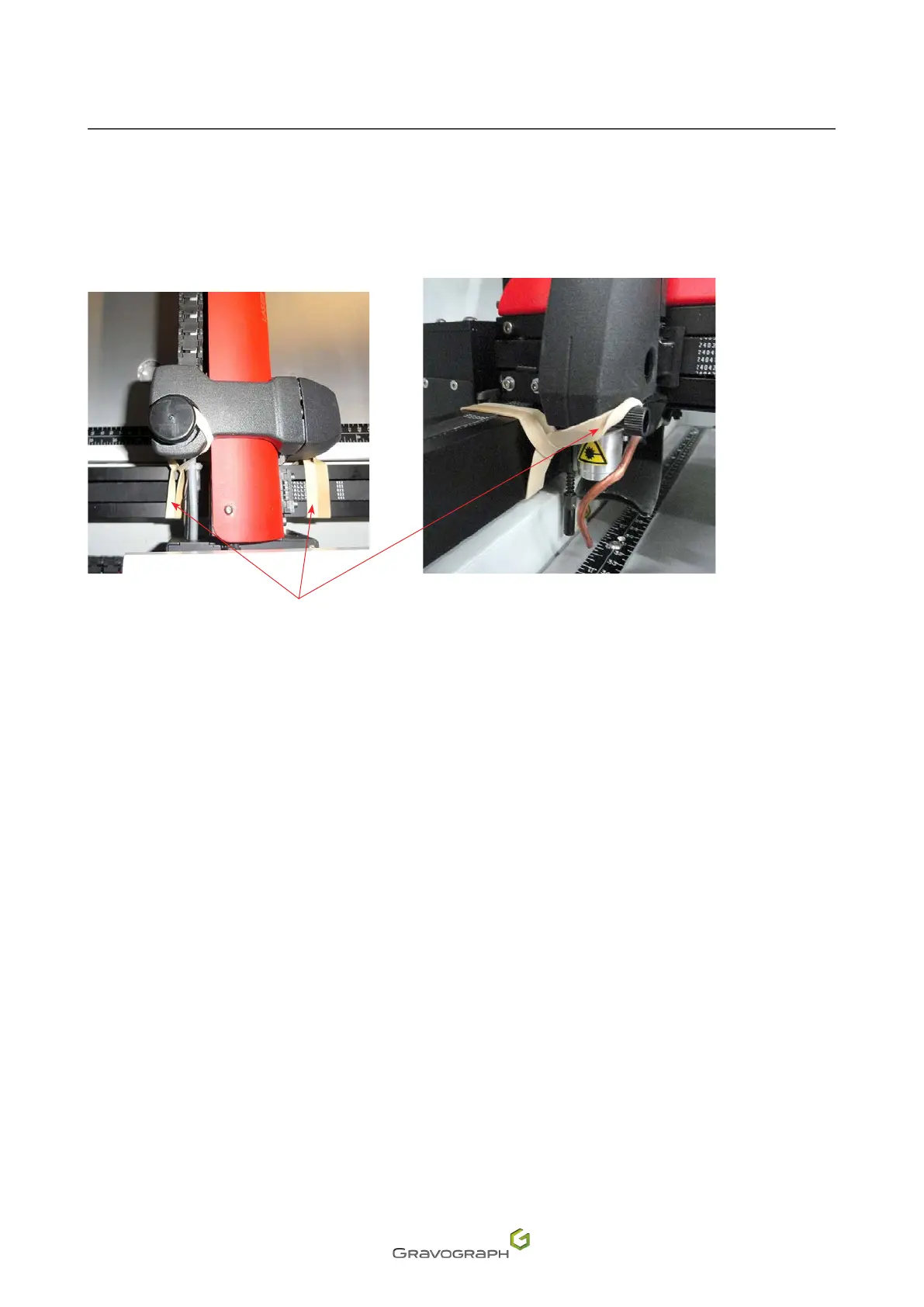

To protect the head during shipping, it is immobilized using 2 elastic band(s). Remove them before operating

the machine.

Elastic band(s)
