GRAVOGRAPH LS900 XP - Air Assist (Option: Air Compressor)

32
M_LS900 XP IQ Energy_EN_B
Recommendations for installation
4. Air assist (option: Air compressor)
Theoperationoftheairassistsystem(blownair)requirestheuseofanaircompressor(notsupplied).
Con󰘰guration:Air󰘱owrate:12.4l/mn(Minimum)
Use the compressed air hose supplied to connect the machine to the air compressor.
2
1

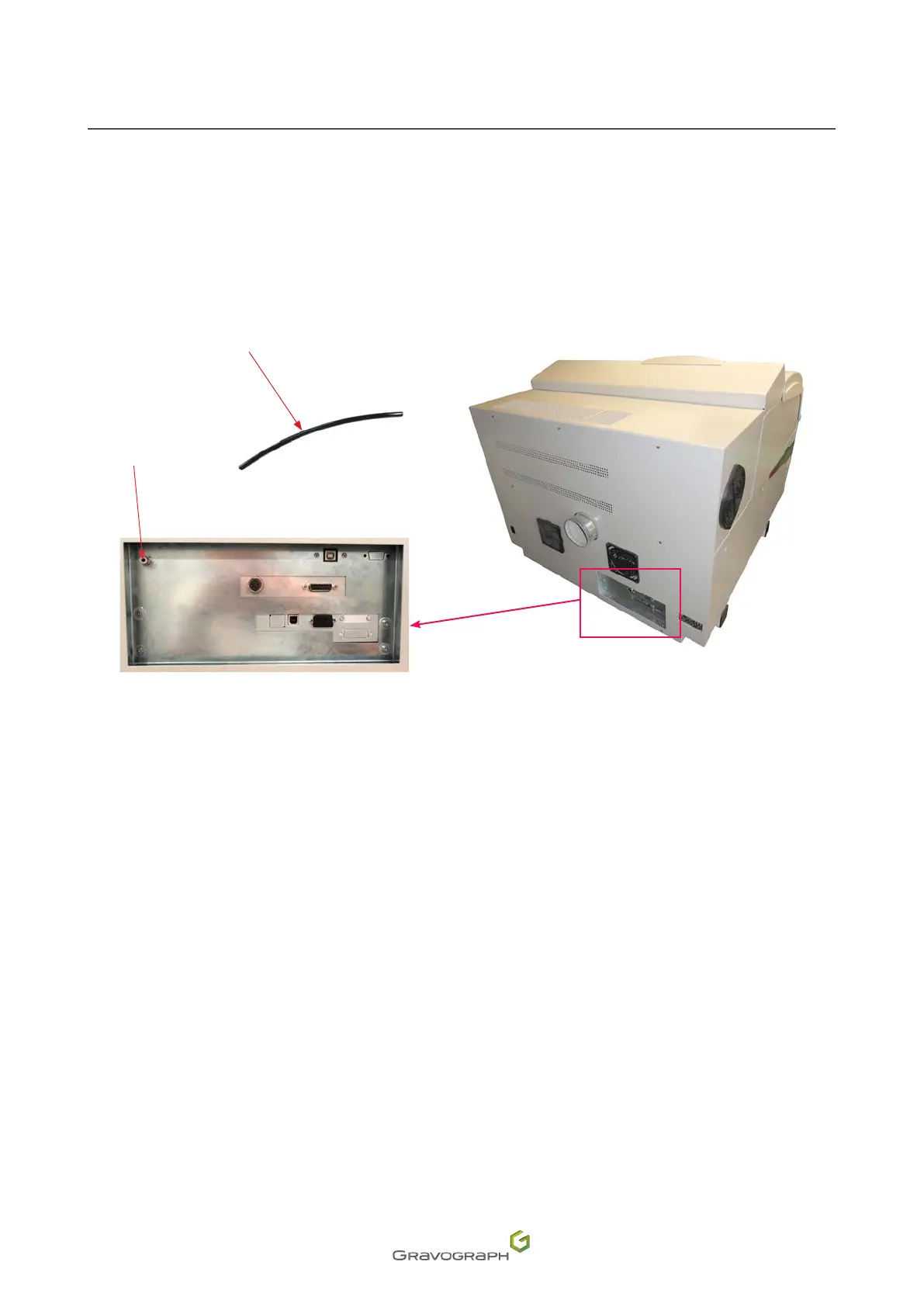

1. Compressed air hose for air assist (Length: 100 mm (3.937 in) - Tube diameter: 4 mm (0.157 in))
2. Pneumatic connection for tube - Air assist
