N. Adaptable accessories
Listofaccessoriesavailableuponrequest

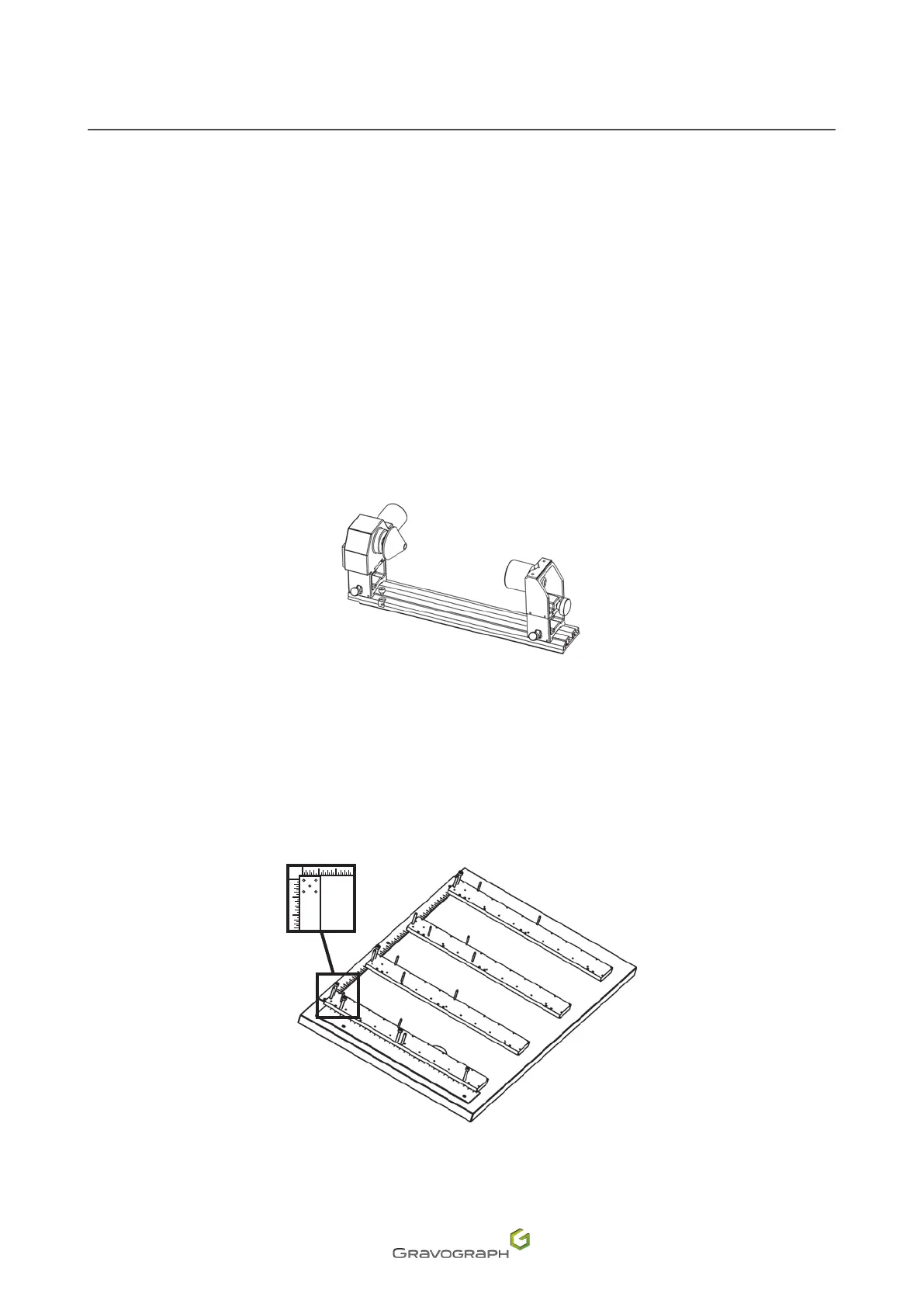

1. Cylinder attachment
Usedtomarkcylindricalpartsthankstoarotarymarkingdevice.Thisaccessoryisdesignedtoholdglasses,
mugs, cups, etc.
Thisequipmentissuppliedwith:
• Mount(s) (x 2)
• 1 cone(s) attached to the motorized end of the element
• 1 inverted cone(s) attached to the adjustable end of the element
This accessory is placed on the engraving table.
Installation - Use: Refer to the manual.
2. Cuttingoutkit
Used to support the material to be cut at a distance from the surface of the engraving table to minimize the area
ofcontactwiththesurface.Thecuttingoutkitcomprises4removableplate(s),pins(supports)andendstops.
The plate to be cut out rests on the pins positioned in advance on 2, 3 or 4 of the removable plates which are
arranged on the engraving table according to the dimensions of the part. In all cases place 5 pins (supports)
at the location of ZRef (top left corner).
The cutting table redirects the exhaust air over and under the material to clear the engraving area of fumes.
