GRAVOGRAPH LS900 XP - Water Chiller Connection and Filling

34
M_LS900 XP IQ Energy_EN_B
Recommendations for installation
7. Connecting/disconnectingthewaterchiller-Fillingthetank(onlyforENERGY
machines)
 Initial installation (if necessary)

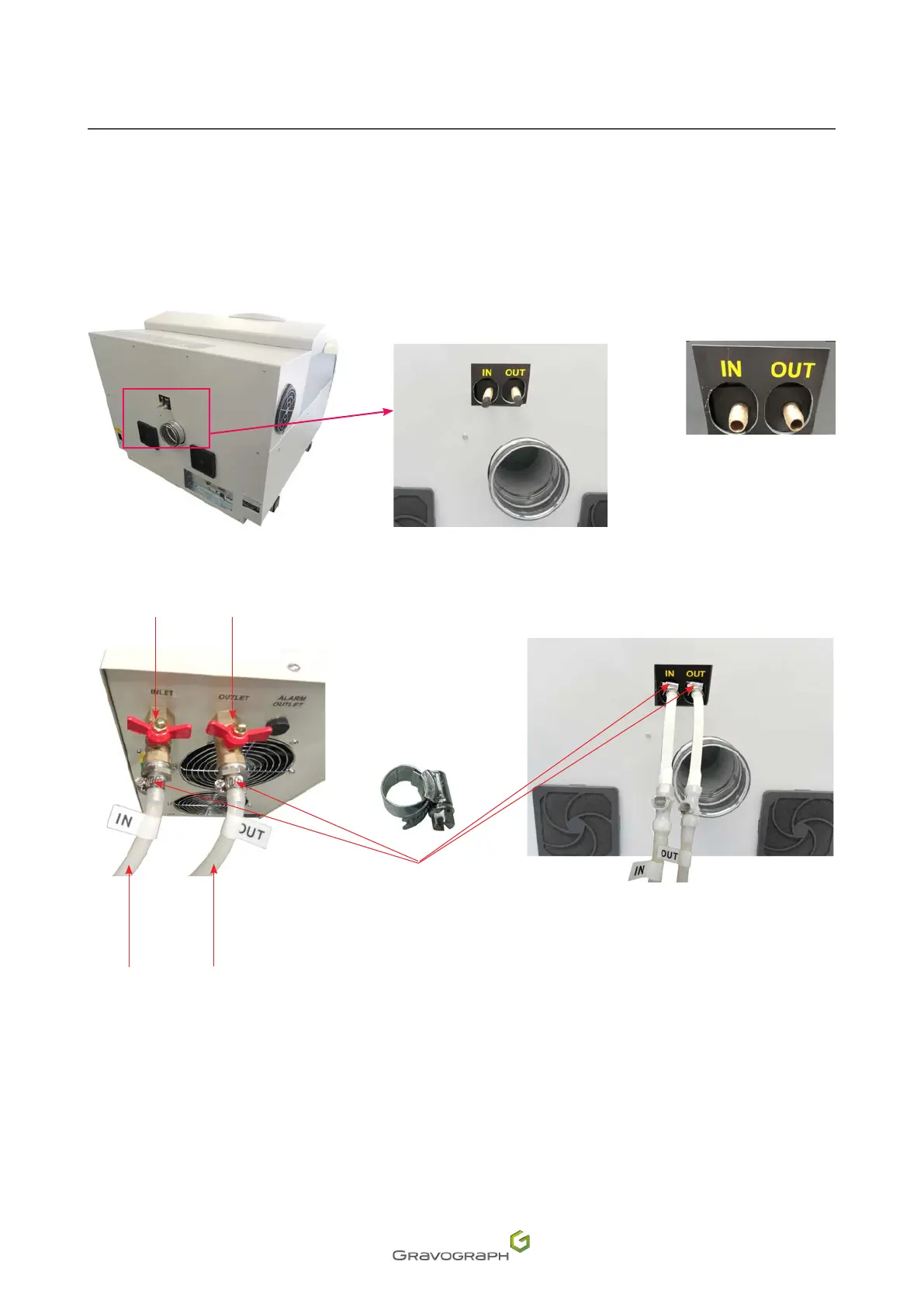

1. Remove the caps present on the water intake and outlet of the machine (retain them).
2. Fix the water hoses to the cooler and to the machine, using the hose clamps.
1 2
3 3
4
1. Coolingwaterintake(watertobecooled)
2. Cooling water outlet (cooled water)
3. Water hose(s)
4. Hose clamp(s)
