Model 11-R

GRIMM AEROSOL TECHNIK GmbH & Co.KG Seite 19 von 83

2.1.2 Filter chamber and certifications on the rear of the device

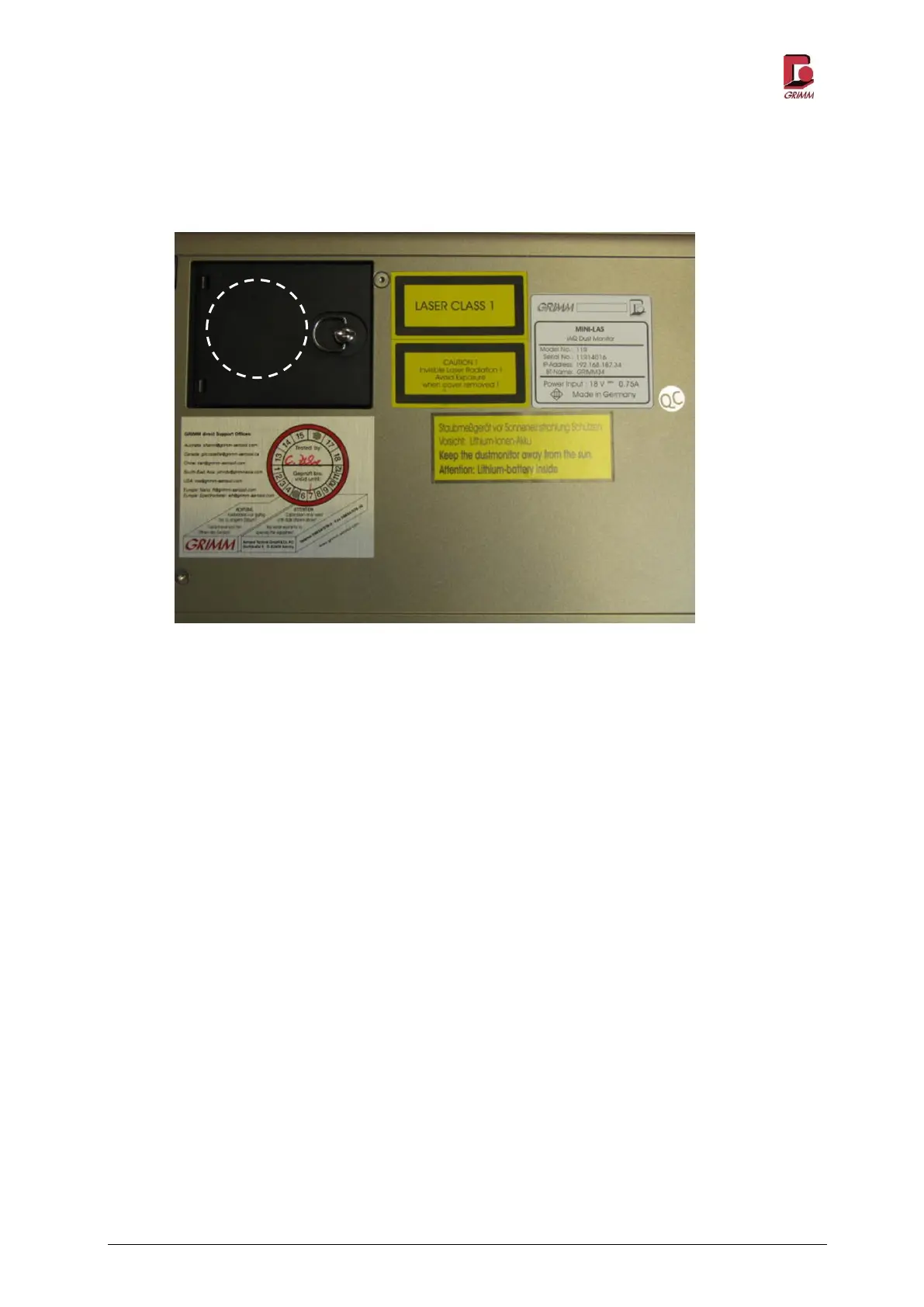

Figure 2-3: Control elements and labelling on the underside of the Mini-LAS 11-R

17 Filter chamber with bayonet closure

18 PTFE filter (not marked in the illustration)

19 Laser warning

20 Type plate 11-R

21 Calibration label

22 Sunlight warning label

23 QC label (proof of final inspection)
