Grimm Mini-LAS 11-R User Manual

Model 11-R
GRIMM AEROSOL TECHNIK GmbH & Co.KG Seite 50 von 83
2.) Configuring the transmission parameters
Check the connection by pressing {v}. Now the version of your device has to be displayed. By sending
a {?}, you obtain a table with all possible commands. Also see Section 6.1.3 “RS-232 commands”.
Once you have established a connection, you can change settings on the measuring device with corre-
sponding commands, start and end measurements or also record and transfer data. For the latter, se-
lect TRANSFER and RECORD TEXT in the HyperTerminal menu.
3.) Now enter the desired file name with the file extension *.TXT!
4.) Press “ENTER” to start the data transfer.
Once the data transfer is complete, OK appears under the final dataset. Then go again to TRANSFER -
> RECORD TEXT -> END.

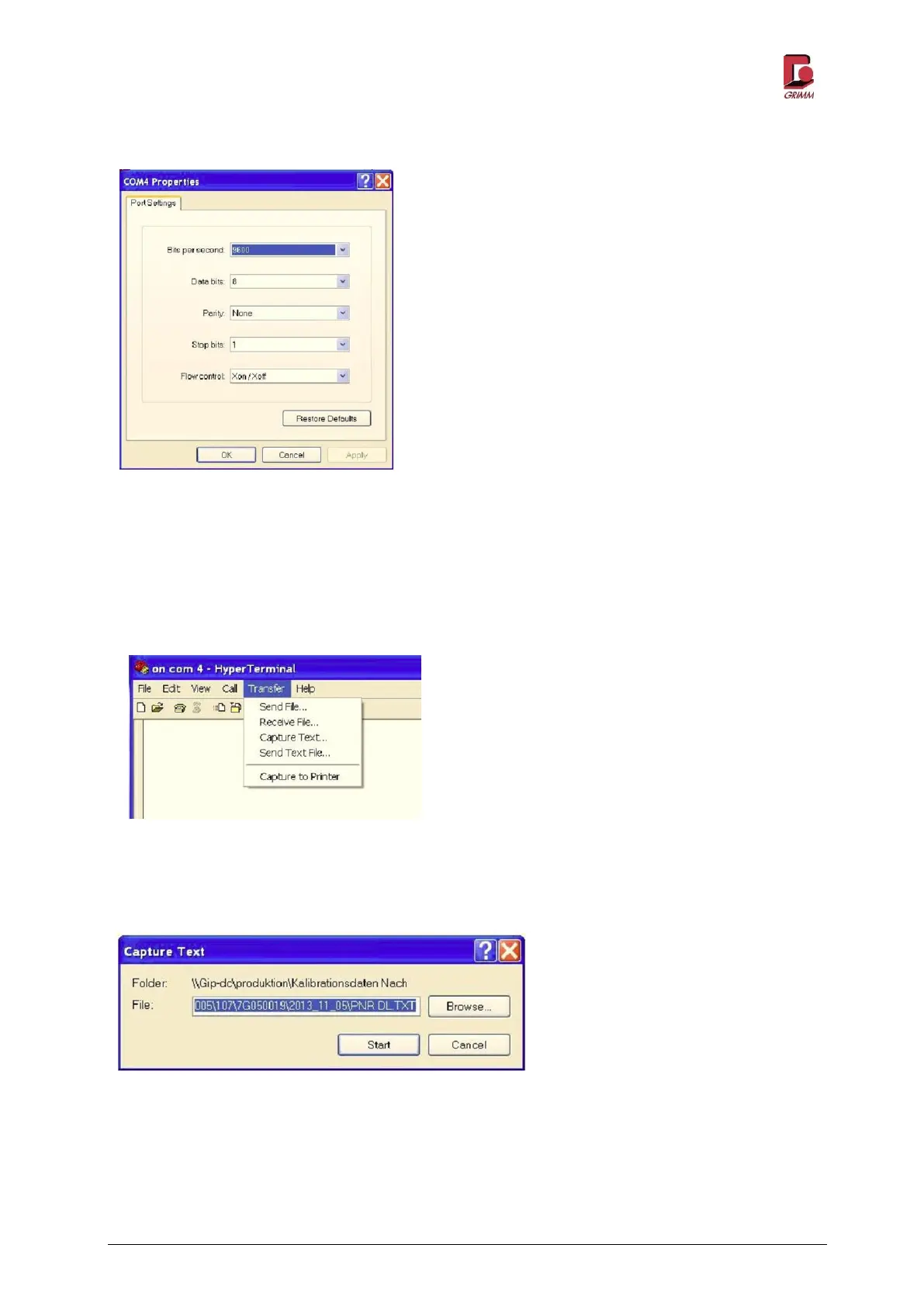

Figure 5-2: Transmission parameters
The illustration to the left shows the setting
parameters for the connection.
If communication is not established between
the 11-R and your terminal software, please
check the settings.
Figure 5-3: Recording text
Figure 5-4: Saving the text file
