Model 11-R

GRIMM AEROSOL TECHNIK GmbH & Co.KG Seite 55 von 83

; Autocal. The device stops during an ongoing measurements after the configured number of

hours.

The measurement begins again automatically after self-test.

Example:

; 99 After an ongoing measurement over 99 hours, the device turns off and starts with a self-

test.

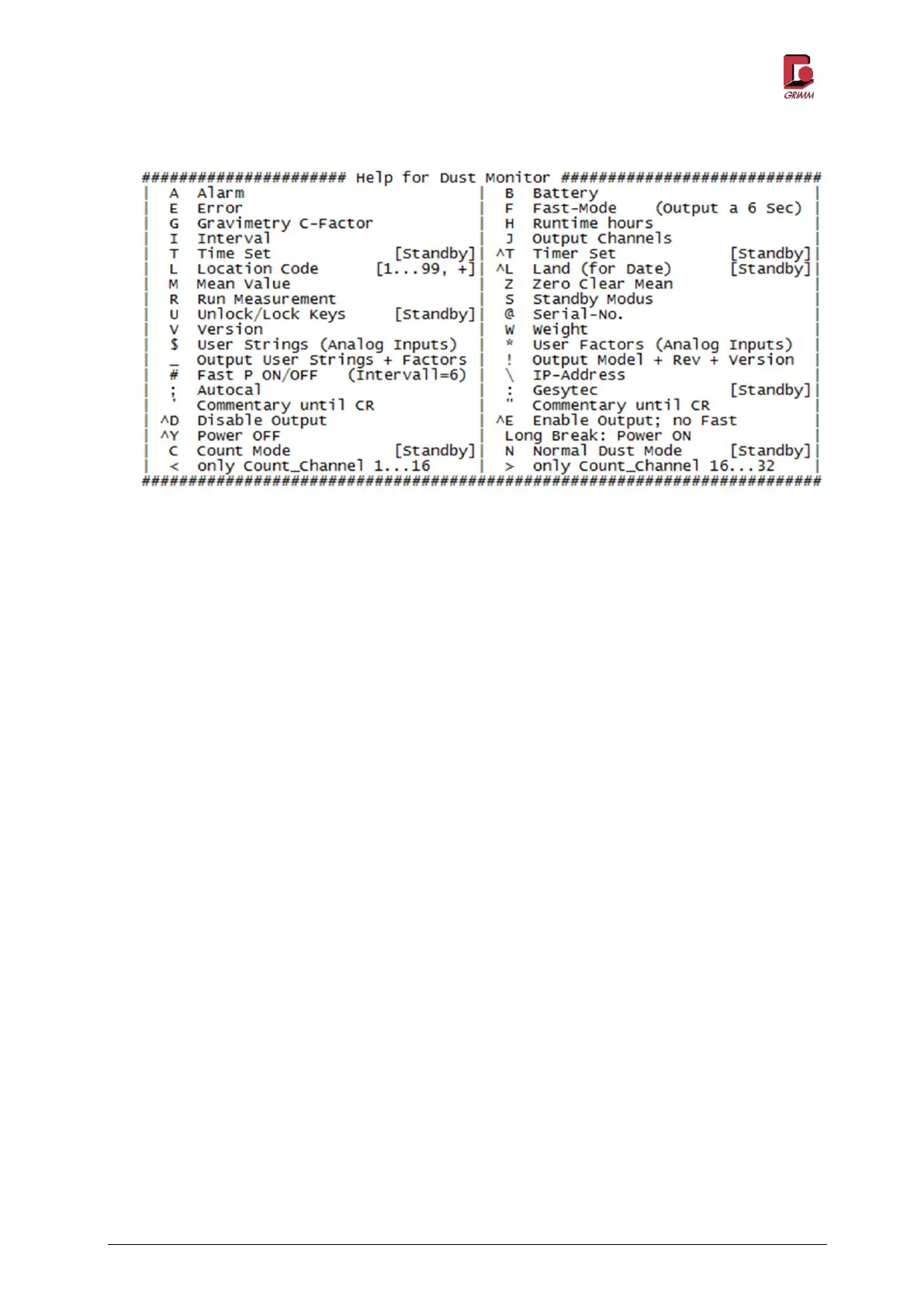

Figure 5-5: Help screen of the Mini-LAS 11-R
