6. Unscrew the xing nut clockwise with the
aid of the maintenance key (26) and re-
move the top ange (33b) and the metal
cutting blade (18).
Installing/Removing the Reel
Capsule (Picture 7)
Dismantling the metal cutting blade
is described in the section on “In-
stalling/Removing the Metal Cutting
Blade”.
Installing the protective cover/thread reel:
1. Screw the protective cover / reel capsule
(15) onto the protective cover / metal cut-
ting blade (20) using the 3 screws and
nuts (36) enclosed.
Installing the reel capsule:
2. Screw the reel capsule (16) anticlock-
wise
onto the cutting head holder
by hand, as indicated in the diagram.
3. Remove the protective cap on the thread
cutter (14).
Removing the reel capsule:
4. Unscrew the reel capsule (16) clockwise
by hand. To make the work easier,
the cutting head holder (19) and bottom
ange (33a) can be locked using the en-
closed metal pin (see also picture 6).
33a
1514 1620
36
pic. 7
4. Screw on the metal cutting blade (18)
anticlockwise
using the xing nut
(35) and with the aid of the maintenance
key (see picture 2, no. 26).
33b
33a
34
35
18
19
15

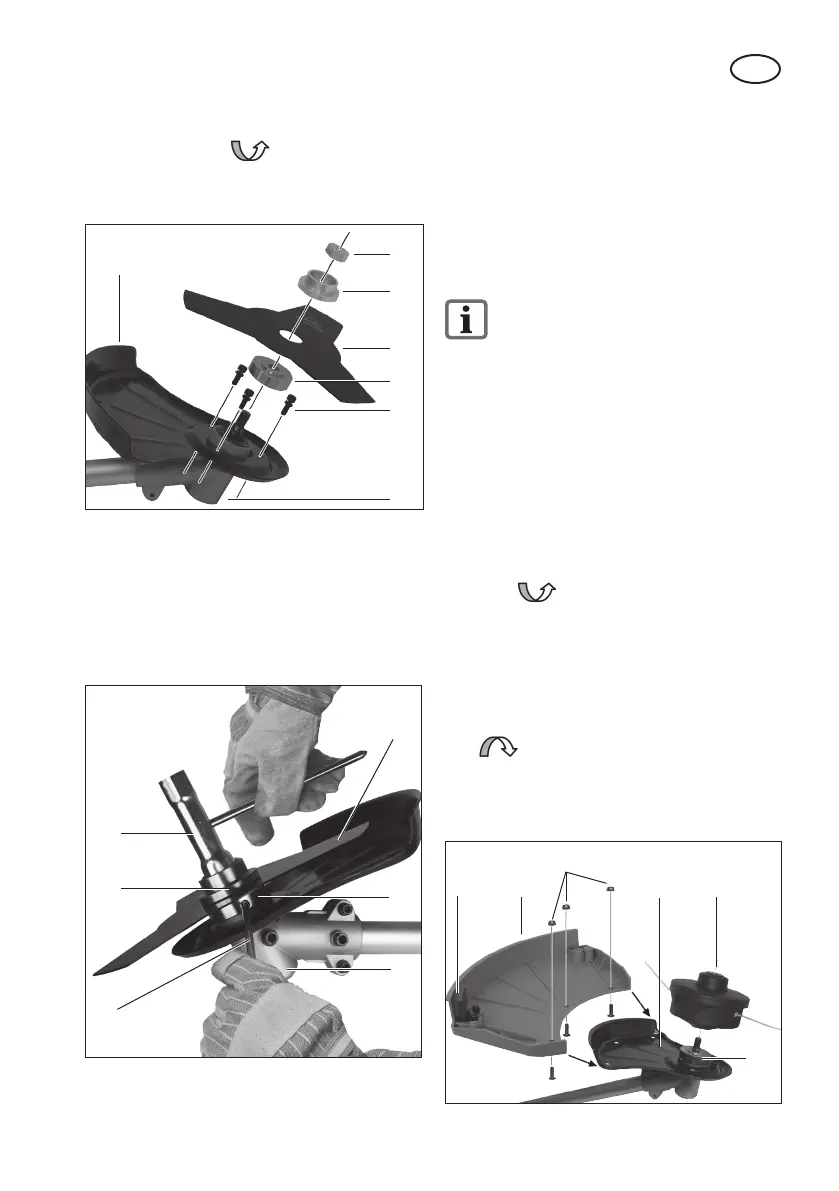

pic. 5
Removing the metal cutting blade (pic-
ture 6):
5. To lock the axle, push the enclosed
metal pin (25) sideways into the hole
provided on the cutting head holder
(19) and on the bottom ange (33a).
33a
33b
18
26
25
19
pic. 6
