6.3.3 Access to signal terminals
All signal terminals are behind the terminal cover of the CUE
front. Remove the terminal cover as shown in figs 23 and 24.

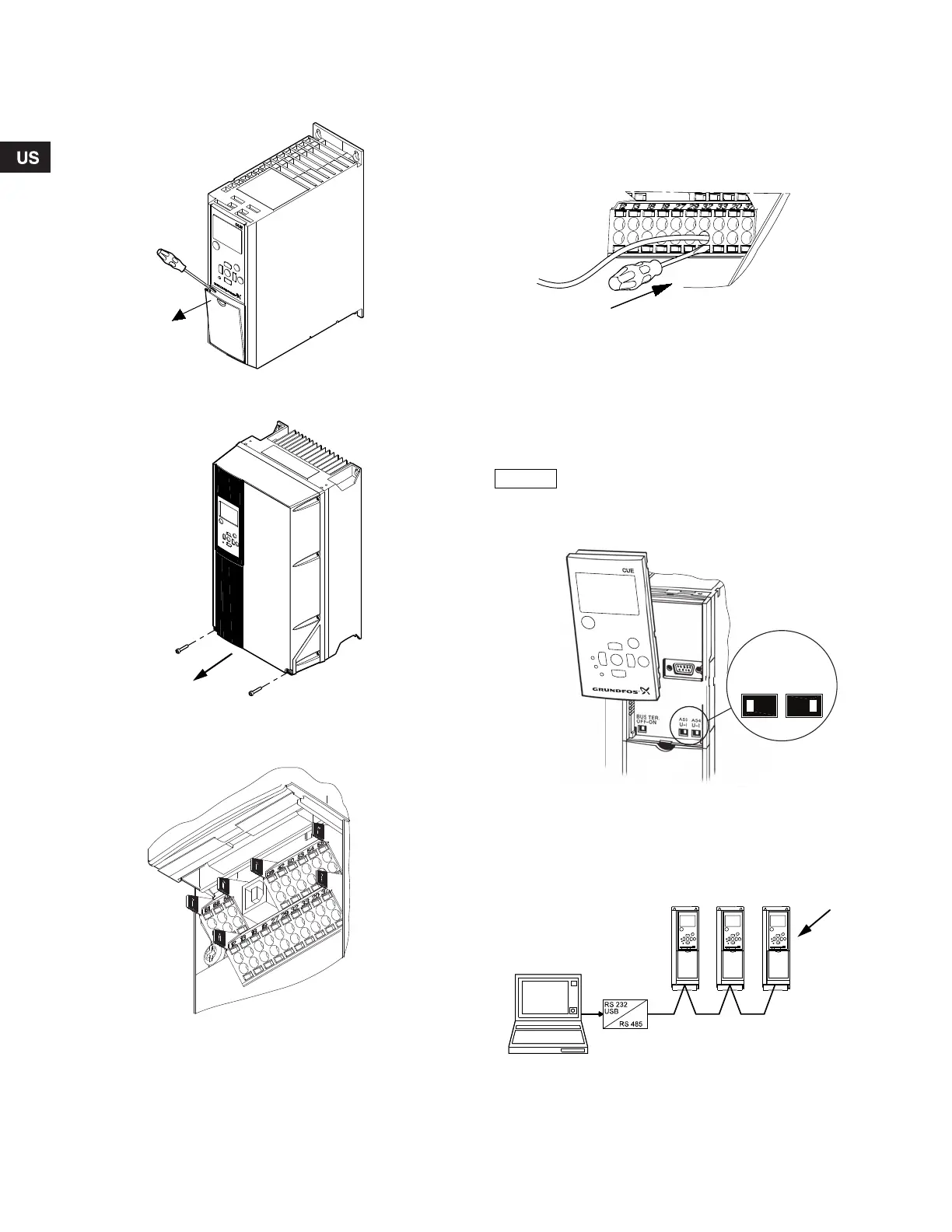

Fig. 23 Access to signal terminals, A2 and A3
Fig. 24 Access to signal terminals, A5, B1, B2, B3, B4, C1,
C2, C3 and C4
Fig. 25 Signal terminals (all enclosures)
6.3.4 Fitting the conductor
1. Remove the insulation at a length of 0.34 - 0.39 in (9-10 mm).
2. Insert a screwdriver with a tip of maximum 0.015 x 0.1 in
(0.4 x 2.5 mm) into the square hole.
3. Insert the conductor into the corresponding round hole.
Remove the screwdriver. The conductor is now fixed in the
terminal.
Fig. 26 Fitting the conductor into the signal terminal
6.3.5 Setting the analog inputs, terminals 53 and 54
The contacts A53 and A54 are positioned behind the control
panel and used for setting the signal type of the two analog
inputs.
The factory setting of the inputs is voltage signal "U".
Remove the control panel to set the contact. See fig. 27.
Fig. 27 Setting contact A54 to current signal "I"
6.3.6 RS-485 GENIbus network connection
One or more CUE units can be connected to a control unit via
GENIbus. See the example in fig. 28.
Fig. 28 Example of an RS-485 GENIbus network
TM03 9003 2807
TM03 9004 2807
TM03 9025 2807
TM03 9026 2807
If a 0/4-20 mA sensor is connected to terminal 54,
the input must be set to current signal "I".
Switch off the power supply before setting the
A54.
