GSK CNC Equipment Co., Ltd.
14

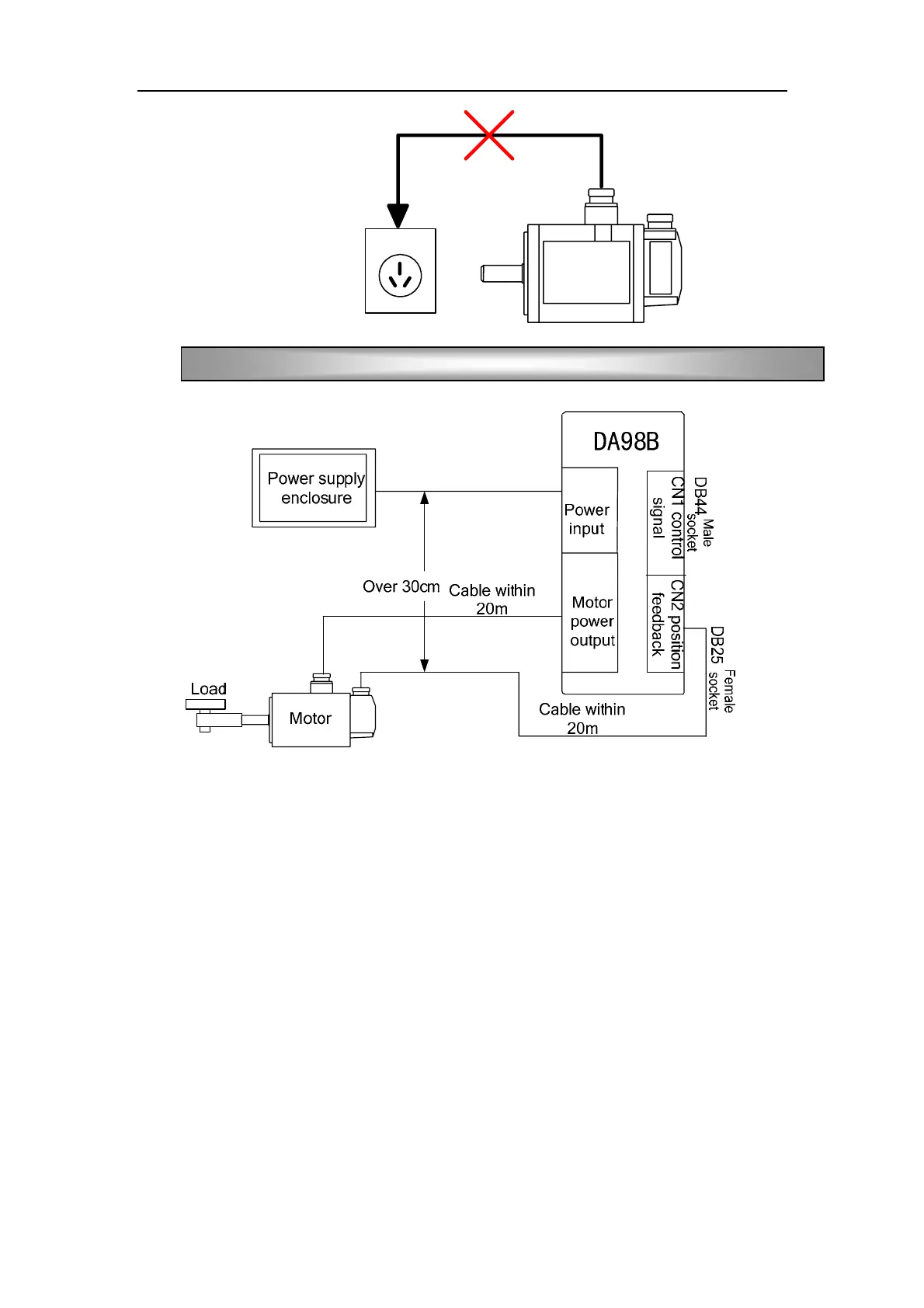

①The cable length between the servo unit and motor should be within 20 meters.
②The distance between the feedback cable of encoder and main circuit cable
should be over 30cm as well as the both cables should not use the same tube or be
bound together.
③Shielded cable with the size 0.15mm²～0.20mm²(AWG24-26) should be used for
feedback signal cable, and the shielded tier should connect with FG terminal.
④The cables and wares should be well fixed as well as not be adjacent to servo unit
radiator or motor for their protection of insulation against heating.
⑤The wiring of CN2 in the following sketch map is done by accordance of GSK SJT
series motor. If user uses motor from other manufacturers or self-made wires, the
wiring below should be followed by.
（Leading wires of temperature controller
connect to OH, OV terminals for motor with temperature controller.）
CN2 terminal wirin
