GSK DA98B - 3.5 Standard conection

Chapter 3 System configuration and assembly
23
3.5 Standard conection
3.5.1 Orientation control

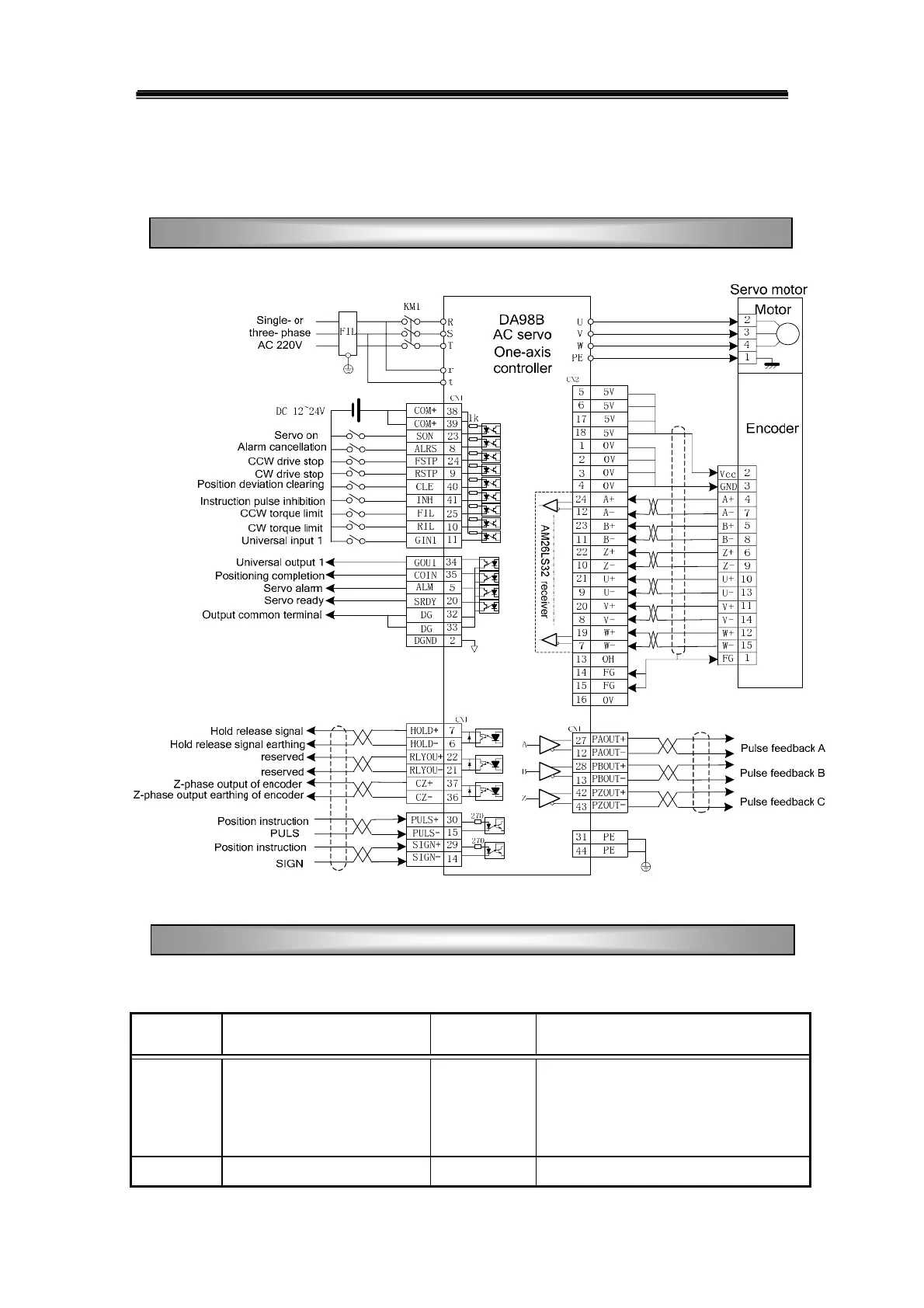

Fig.3.13 Standard wiring of orientation control mode
Table 3－6 Terminal functions of orientation control mode
Sign Function Sign Function
SON
Servo on input terminal
PAOUT+
PAOUT-
Encoder A phase differential positive
output
Encoder A phase differential negative
output
ALRS
Alarming cancellation input
PBOUT+
Encoder B phase differential positive
Standard Wirin
g
Terminal functions of position control mode
