Chapter 2 Installation
7
Servo driver
Servo driver
Servo driver
>100mm
>100mm
>100mm>25mm >25mm
Ventilation direction Ventilation direction

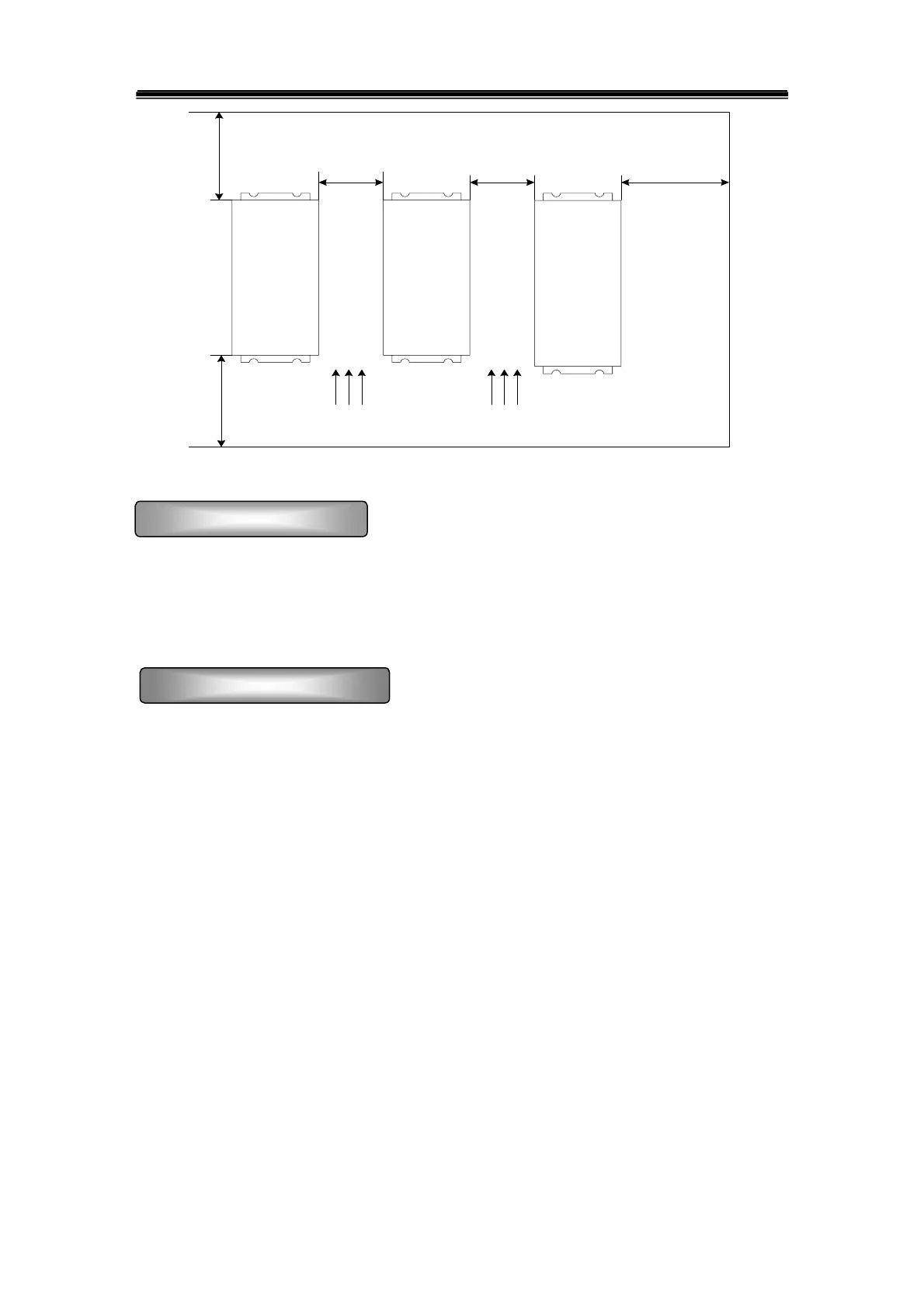

Fig. 2.4 Installation interval for servo units
There should be convective air to the radiator of the servo unit in electric cabinet to inhibit
its environmental temperature from continuously rising.
2.2 Installing motor
Be careful for the protection against rain and sunlight.
The motor must be installed in the electric cabinet to prevent dust, corrosive gas,
liquid, conductors and inflammable substances from entering it.
The motor should be fixed in the well ventilative, dampproof and dustproof
environment.
■ The motor should be fixed in a place that is convenient for the maintenance, check
and cleaning of the motor.
Heat radiation
Installation environment
