Chapter 3 System configuration and assembly
15
Vacancy

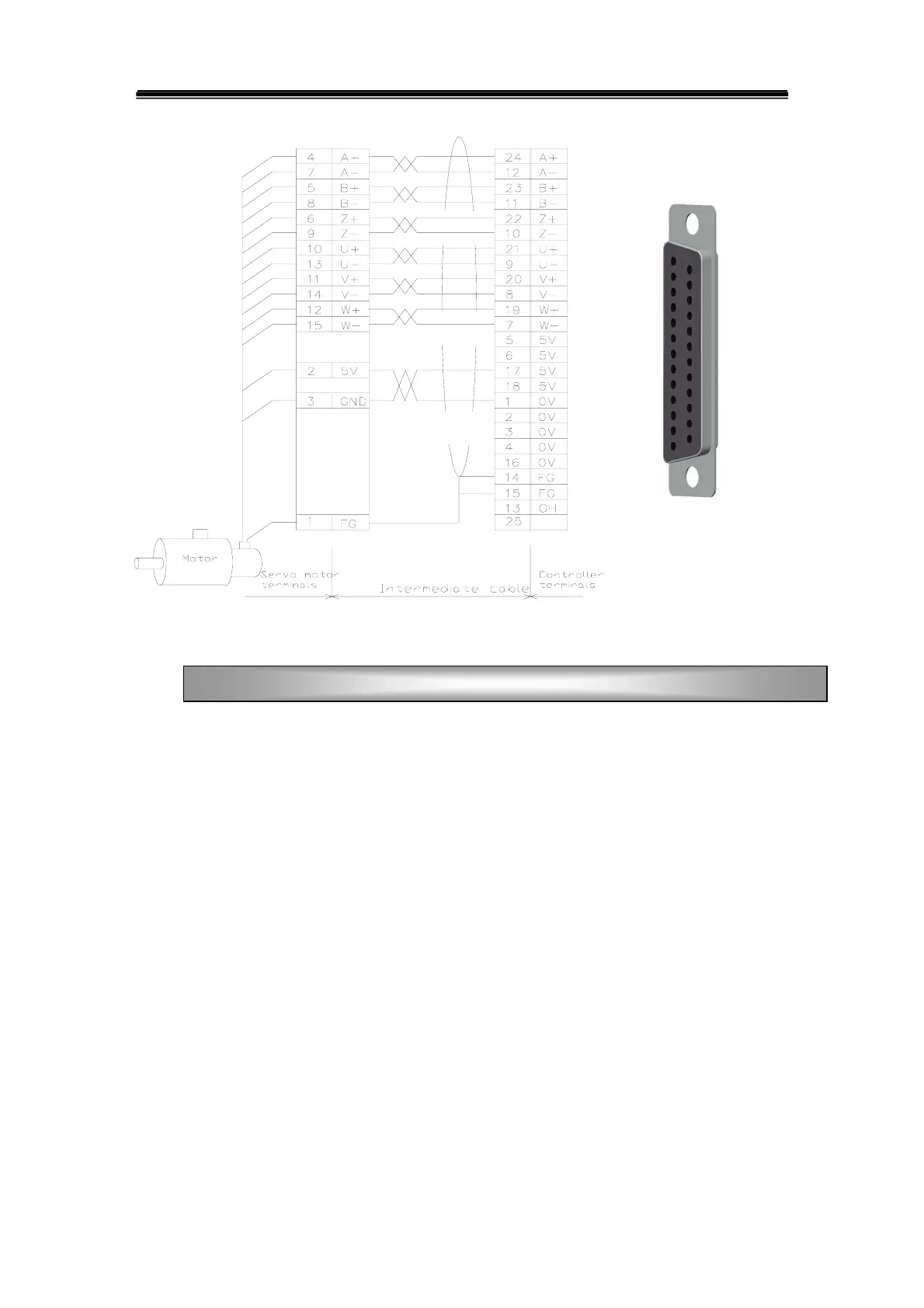

Fig.3.3 Encoder wiring
① The cable length of the control signal should be within 3m.
② The distance to the main circuit cable should be above 30cm as well as the both
cables should not use the same tube or be bound together for protection against
disturbance.
③ The external power supply should be provided by user.
④ There are different wirings for CN1 terminal in different control modes, see
section 3.5 for details.
CN2 (DB25F)
CN1 terminal wiring
