GETTING STARTED
29

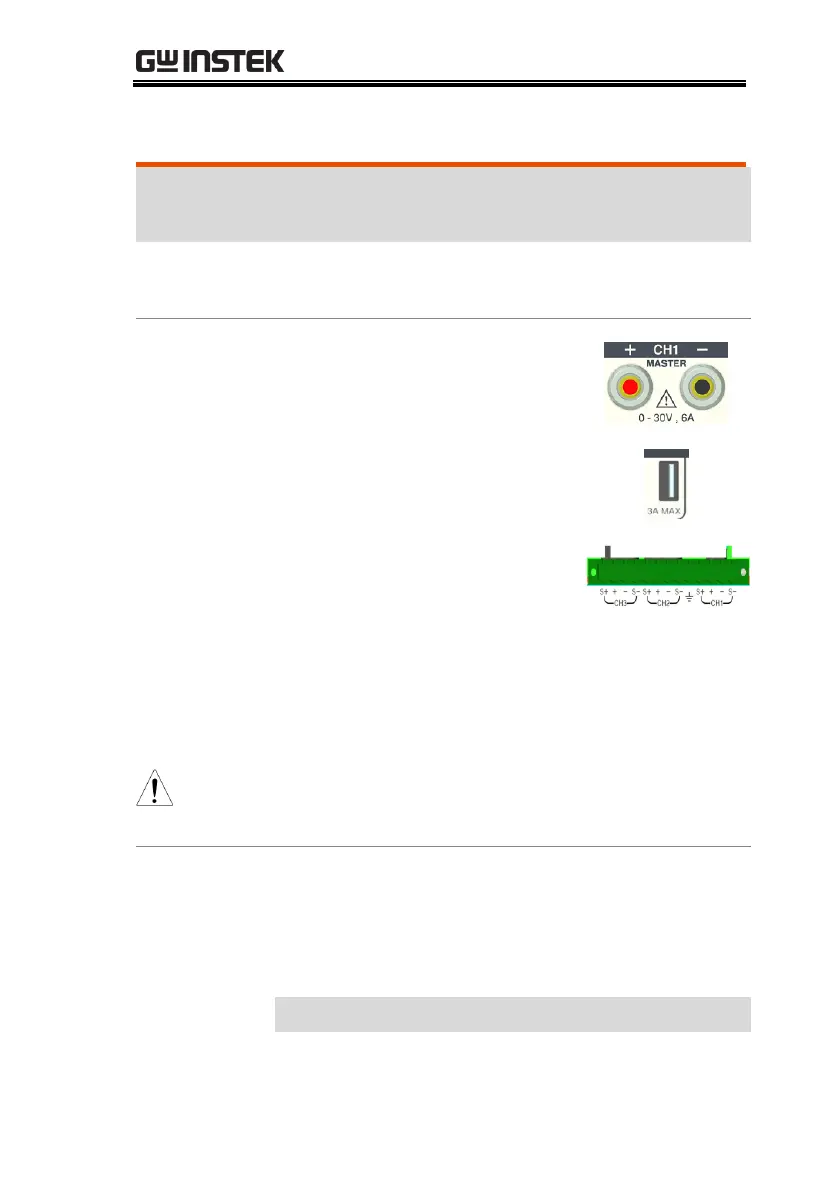

Load Connection
Use the GTL-104A cables for
the front panel source
connections.
USB Type A only
(Greater than 4A)
Self distribution wire:
+ / - need to be equipped with
awg12 or above
S + / S - can be equipped with
awg20, preferably twisted into
twisted pair.
When in LOAD mode, there is
no need to connect sense.
For safety considerations, please keep in mind
that the wiring must be equivalent to the wiring
on the front terminals.
Load wires must have enough current capacity to
minimize cable loss and load line impedance.
Voltage drop across a wire should not excess
0.5V. The following list is the wire current rating
at 450A/cm2.
