GW Instek PSU 100-15 User Manual

OPERATION
57
F-03
1 = CC High Speed Priority
3 = CC Slew Rate Priority

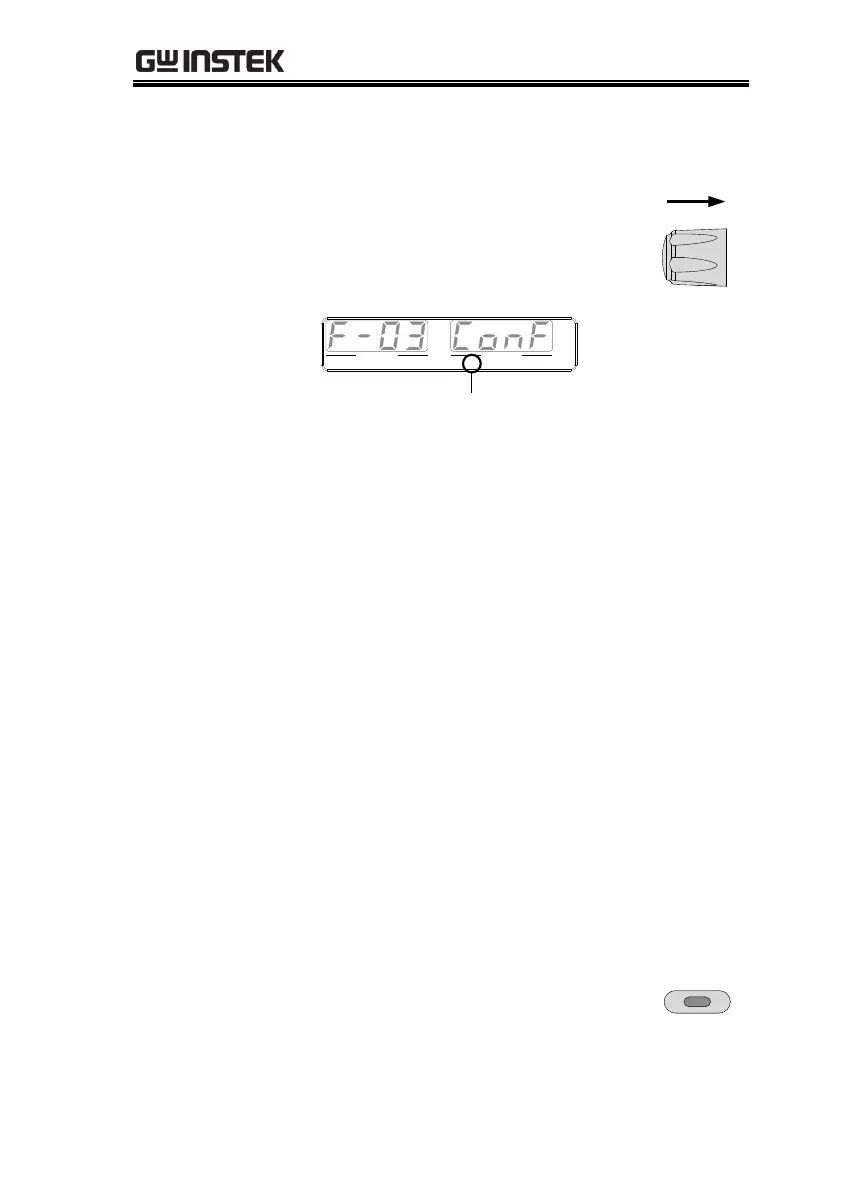

5. Press the Voltage knob to save the
configuration setting. ConF will be
displayed when it is configuring.
Voltage
VOLTAGE CURRENT
LAN RMT ERR DLY ALM ISR M 1 M 2 M 3 RUN
C V C C
V A
ISR indicator for CC Slew
Rate Priority (F-03=3)
6. If CC Slew Rate Priority was chosen as the
operating mode, set F-06 (Current Slew Rate
Up) and F-07 (Current Slew Rate Down) and
save.
F-06 / F-07
0.001A~2.000A / msec (PSU 6-200)
0.001A~1.800A / msec (PSU 8-180)
0.001A~1.200A / msec (PSU 12.5-120)
0.001A~1.000A / msec (PSU 15-100)
0.001A~0.760A / msec (PSU 20-76)
0.001A~0.500A / msec (PSU 30-50)
0.001A~0.380A / msec (PSU 40-38)
0.001A~0.300A / msec (PSU 50-30)
0.001A~0.250A / msec (PSU 60-25)
0.001A~0.190A / msec (PSU 80-19)
0.001A~0.150A / msec (PSU 100-15)
0.001A~0.100A / msec (PSU 150-10)
0.001A~0.025A / msec (PSU 300-5)
0.001A~0.008A / msec (PSU 400-3.8)
0.001A~0.006A / msec (PSU 600-2.6)
7. Press the Function key again to exit
the configuration settings. The
Function key light will turn off.
Function
