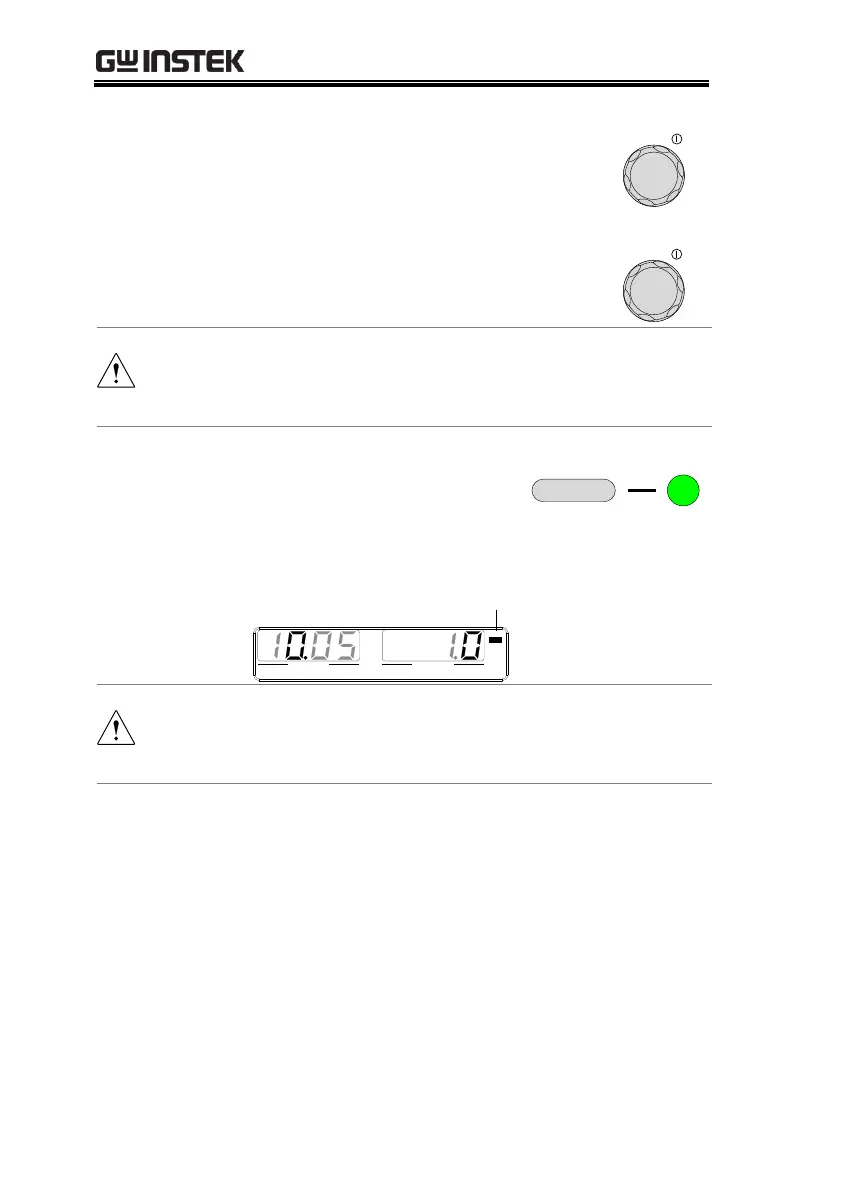

8. Use the Voltage knob to set the

voltage limit (crossover point).

Voltage

9. Use the Current knob to set the

current.

Current

Note

Notice the Set key becomes illuminated when setting

the current or voltage. If the Voltage or Current knobs

are unresponsive, press the Set key first.

10. Press the Output key. The

Output key becomes

illuminated.

Output

CC will become

illuminated (right)

VOLTAGE CURRENT

VSR LAN RMT ERR DLY ALM ISR M 1 M 2 M 3 RUN

C V C C

Note

Only the current level can be altered when the output

is on. The voltage level can only be changed by

pressing the Set key.

For more information on the Normal Function

Settings, see page 101.
