User Manual
H3C S1526 Smart Ethernet Switch Chapter 2
Web-based Configuration
2-36

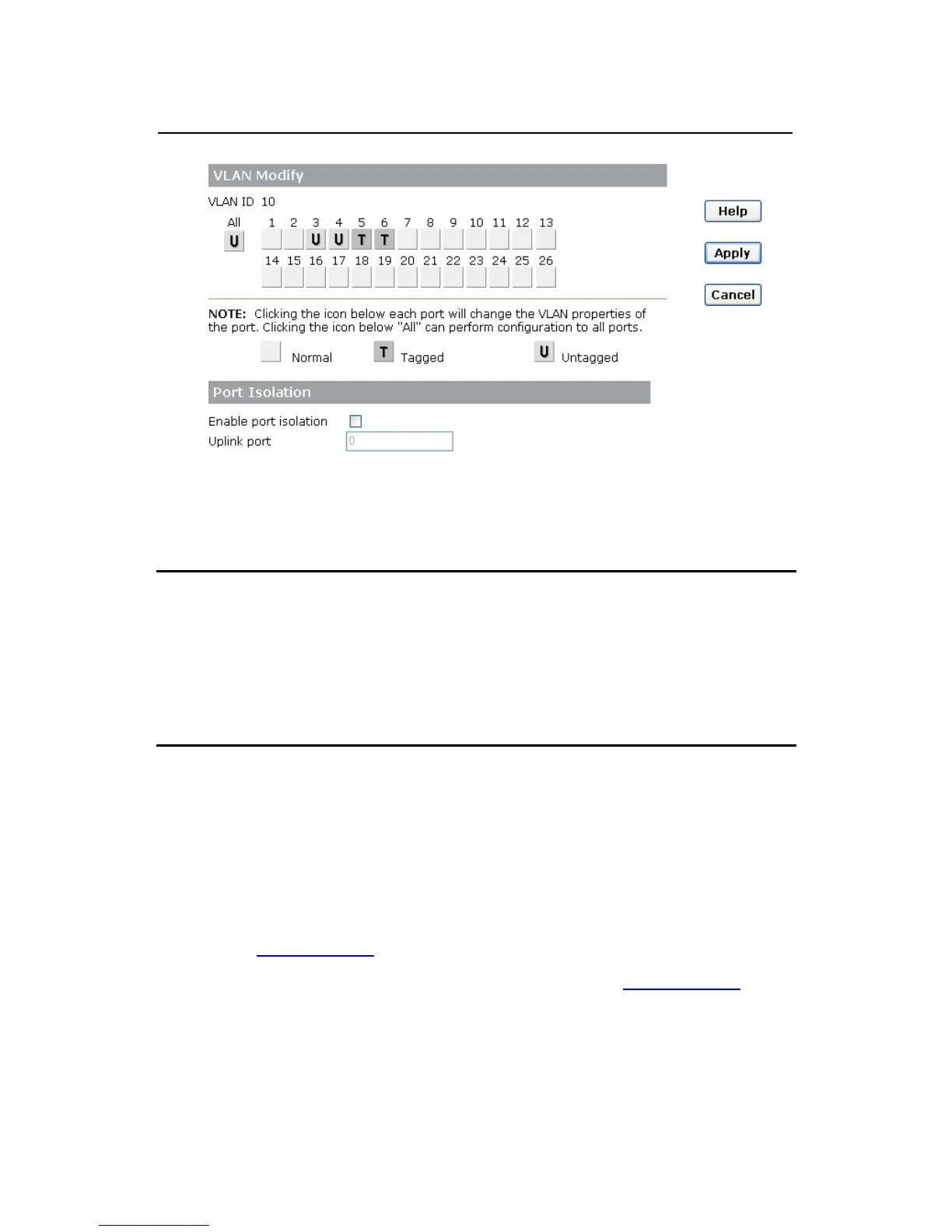

Figure 2-23 VLAN modification
Note:
If you modify the VLAN configuration of a port that belongs to a
trunk group, the VLAN configurations of the other member
ports of that trunk group will change accordingly.
IV. Configuring PVID
PVID is the default VLAN ID for all ports.
Click [VLAN/PVID] to enter the PVID display page, as
shown in
Figure 2-24. Click the port number to enter the [PVID
Configuration] page for that port, as shown in
Figure 2-25, and
set the PVID settings.
