H3C S1526 Smart Ethernet Switch Chapter 2
Web-based Configuration
2-37

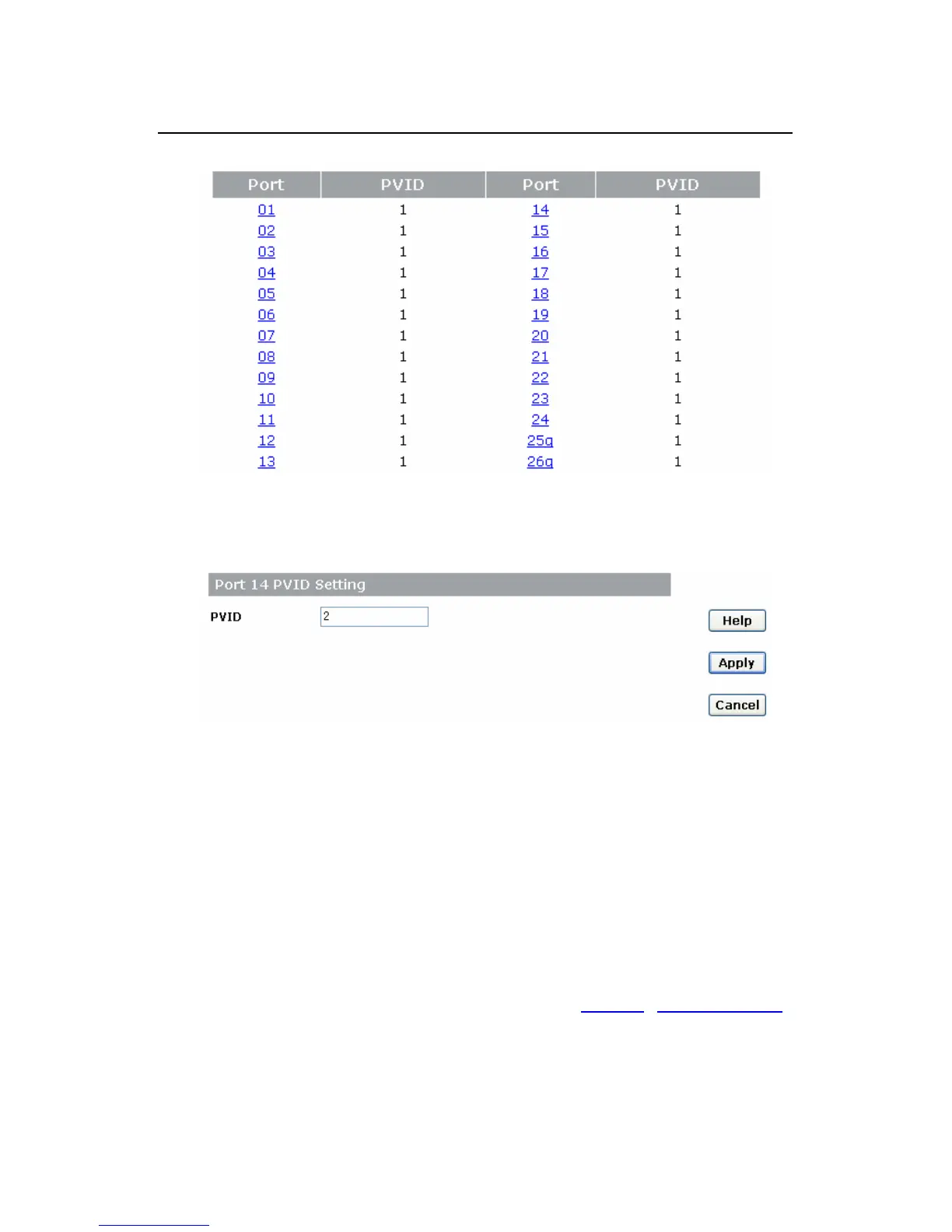

Figure 2-24 PVID display
Figure 2-25 PVID configuration
2.6.3 Port-based VLAN
The S1526 supports up to 26 port-based VLANs. One port
can belong to multiple port-based VLANs.
I. Display
Use the method described in section 2.6.1 “ VLAN Types”
to set the VLAN type to port-based VLAN. Enter the
[Port-based VLAN] screen. Each page can display the
information of 10 port-based VLANs. Click <Next Page> to
