H3C S1526 Smart Ethernet Switch Chapter 4
Typical Configuration
4-3
4.2 Networking Diagram

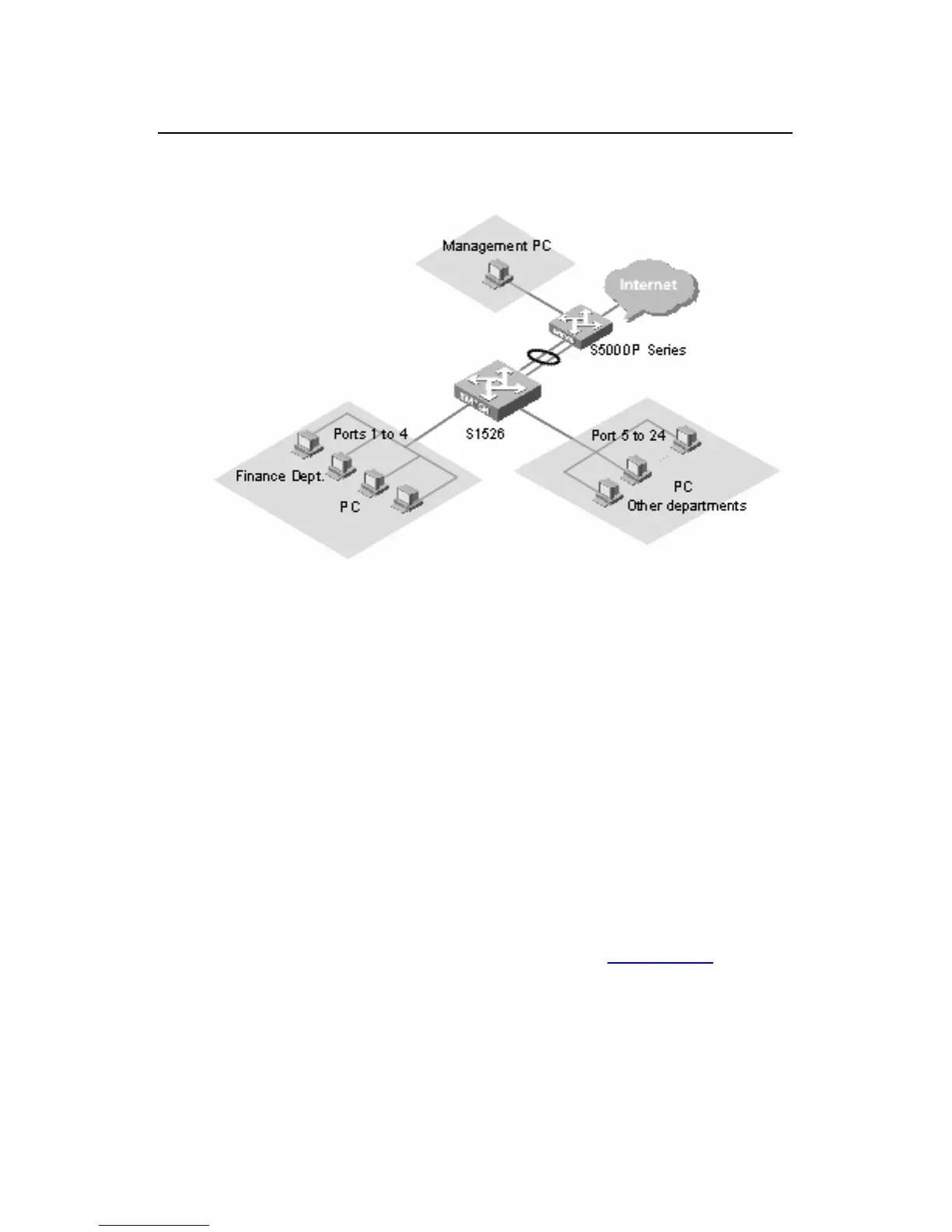

Figure 4-1 S1526 802.1Q VLAN typical configuration
4.3 Configuration Steps
Launch the Web browser and type the default IP address
of the switch http://192.168.0.234 (this address can be
modified after login) in the address bar. Press <Enter> and a
login dialog box appears. Type the default username admin
and password admin in the login dialog box. Click <OK> to
enter the Web configuration page.
1) Select the VLAN type. Click [VLAN/Advanced] to enter
the [VLAN Type] page as shown in
Figure 4-2. Select
the 802.1Q VLAN from the drop down list (system
default).
