H3C S1526 Smart Ethernet Switch Chapter 4
Typical Configuration
4-6

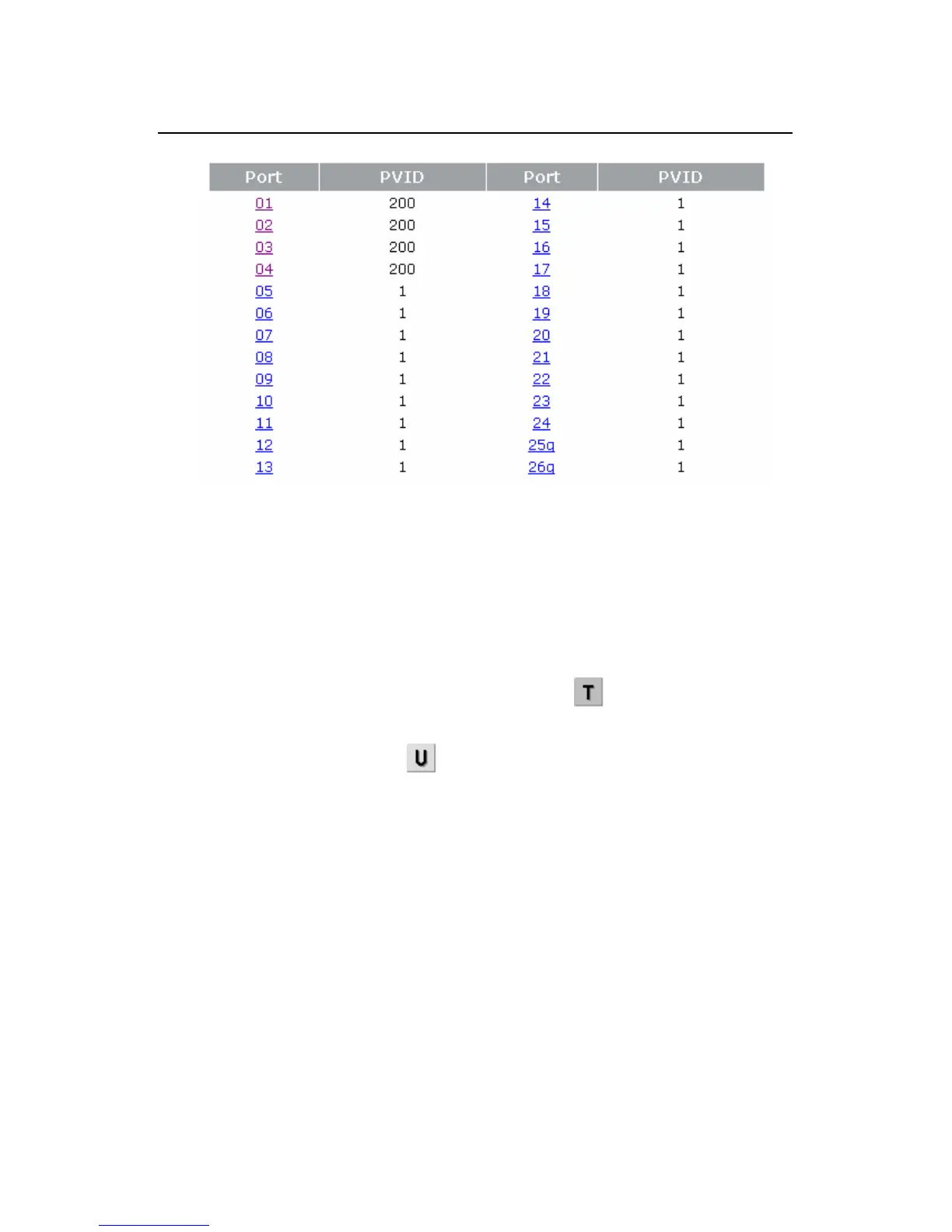

Figure 4-6 Port PVID
5) Add ports 5 through 26 to VLAN 10. Repeat the
previous steps 2 to 4: create VLAN 10, add ports 5
through 26 to VLAN 10 (note that the port icons of
ports 25 and 26 should be set to
and those of other
ports be set to
), remove ports 5 through 24 from
VLAN 1 and set port PVID to 10 for ports 5 through 24.
6) Enable port trunking for ports 25 and 26. Click
[Port/Trunk] to enter the following page. Set ports 25
and 26 in the same trunk group and click <OK>. Note
that for trunking ports, the duplex mode must be full
duplex, and the speed setting must be the same and
cannot be auto-negotiation.
