Starting, commissioning, operation
4.7 Commissioning via the HTP610H configuration tool
After start-up, the configuration unit supplies the trip unit of the h3+ circuit breaker
and therefore enables the embedded display of the Energy trip unit to be used.
Connecting to the configuration server via Wi-Fi

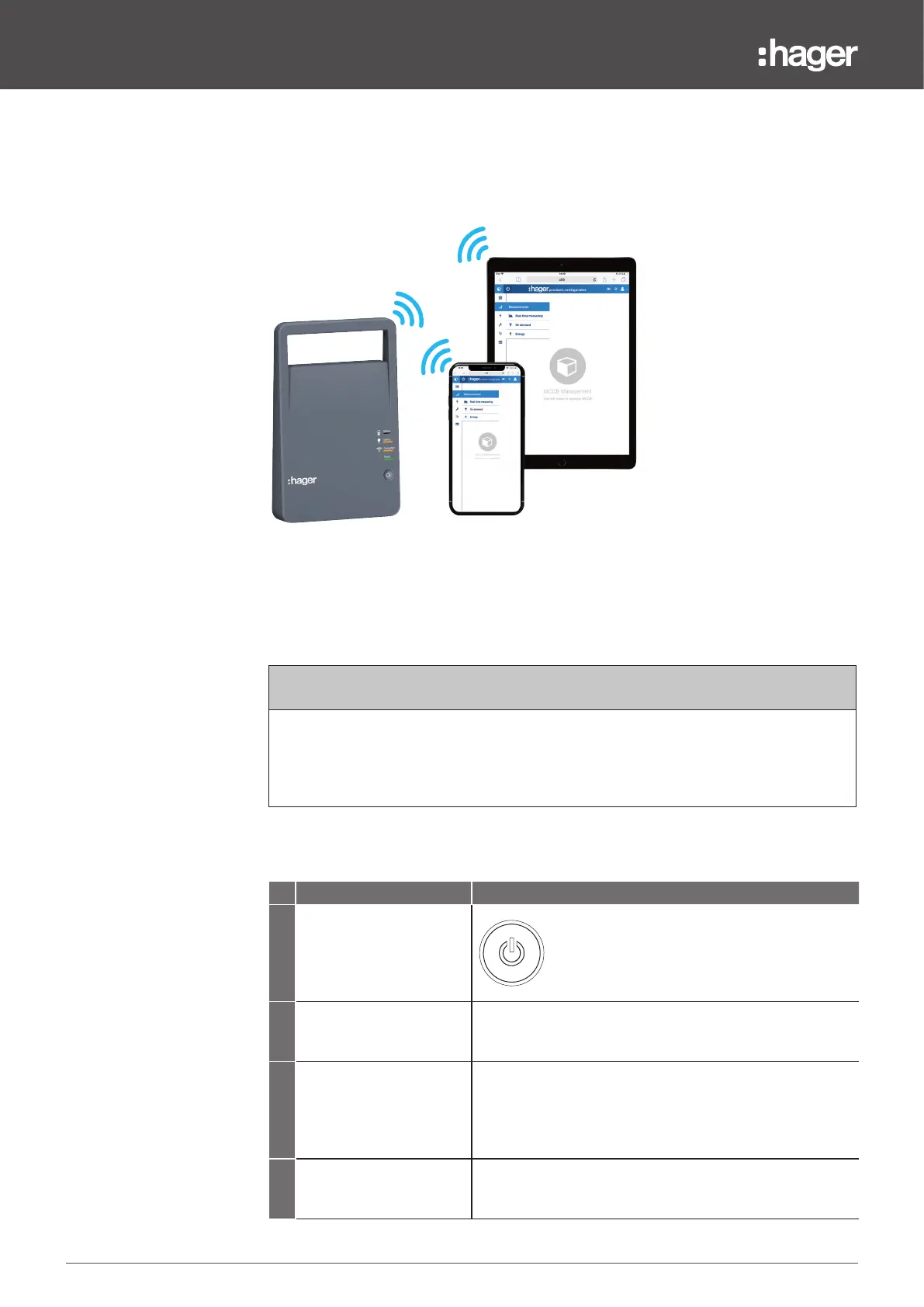

Configuration unit and Wi-Fi.
This is the procedure to follow in order to log into the configuration server via Wi-Fi
from a multimedia tablet:
ATTENTION
Risk of interruption following inadvertent loss of the Wi-Fi connection
Use of the HTP610H configuration tool requires a stable Wi-Fi connection
throughout the entire duration of use of the configuration software.
Please deactivate any automatic Wi-Fi connections.
Action Note/Illustration
1 Start the configuration
server:
- Press the power button
- Wait until the Power LED
remains green
2 Deactivate data roaming
(cellular) on the tablet then
activate the Wi-Fi
3
Select the SSID name
"HTP610H_XXXX" of your
configuration tool in the list
of available networks.
The SSID name is given on the label at the back of the
configuration unit.
4 Enter the Wi-Fi password
for the HTP610H tool:
MCCB_Configurator
The Connection LED lights up orange on the
configuration unit.
