HALE RSD - Figure 44. Slots Cut in Clearance Ring - Suction Head; Figure 45. Clearance Ring Driven out - Suction Head

115

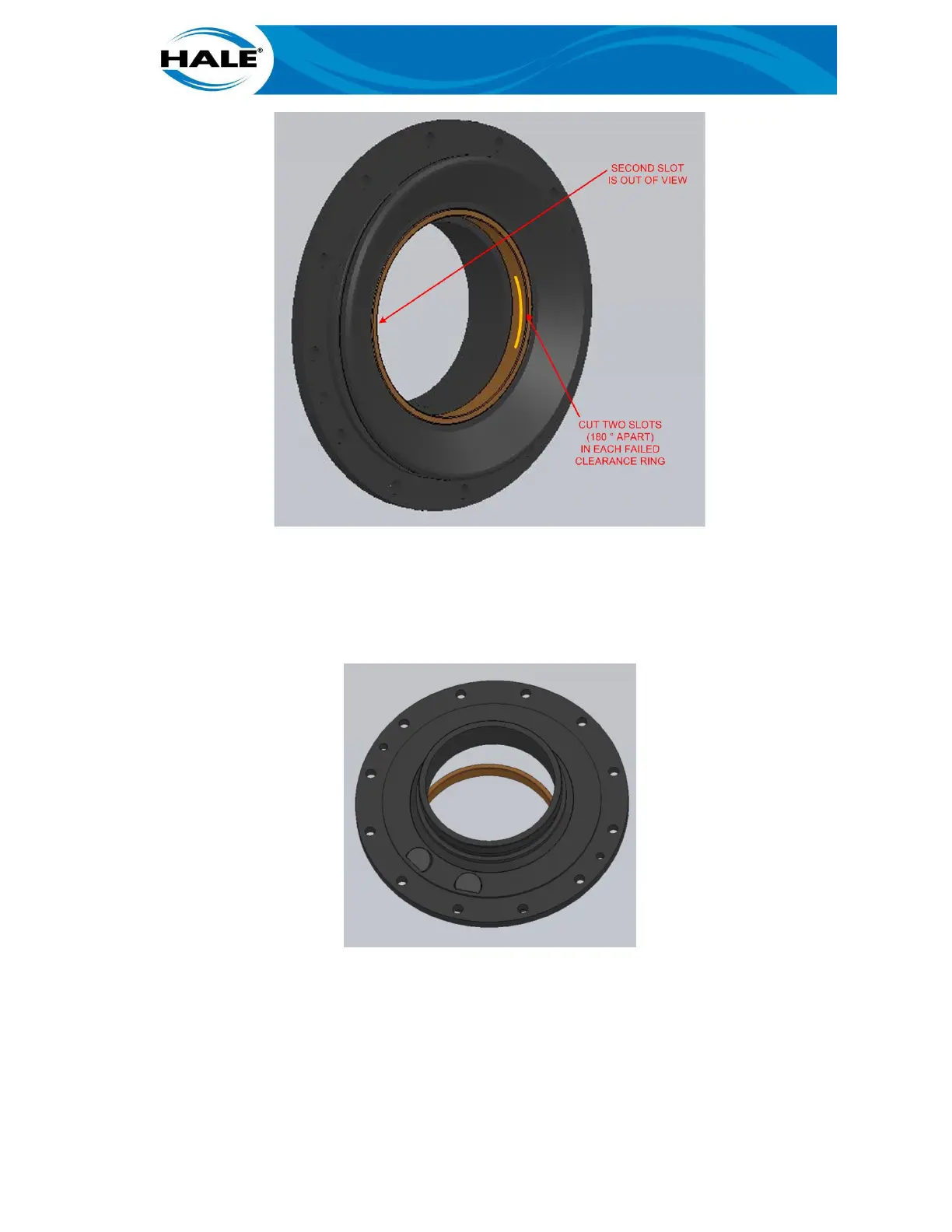

Figure 44. Slots Cut In Clearance Ring - Suction Head
C. Place suction head on stable work surface with suction opening up.
D. Using a chisel and hammer, drive clearance ring out of suction head. See
Figure 44.
Figure 45. Clearance Ring Driven Out – Suction Head
RSD Suction Head Clearance Ring Installation
A. Clean suction head to remove old Loctite. (Use Loctite Clean-Up Solvent and
a wire brush.)
B. Place suction head on stable work surface with suction opening down.
C. Coat ONLY outer (mating) surface of new clearance ring with Loctite 680.
