Set parking brake and chock front and rear wheels. 3.
B. Disassemble/remove all items required to access pump and gearbox. See
Figure 17.
Support pump and gearbox using appropriately sized lifting device and 1.
rigging or jack.
Match mark and tag all items/connections before removal. 2.
Remove ONLY items/connections required to access pump and gearbox. 3.
Follow all OEM provided instructions to disassemble/remove items when 4.
required to access pump and gearbox.
C. Prepare pump for removal.
Remove drain plugs (water ONLY – do NOT drain oil until instructed) and 1.
drain pump.
Place catch pan under magnetic oil drain plug. 2.

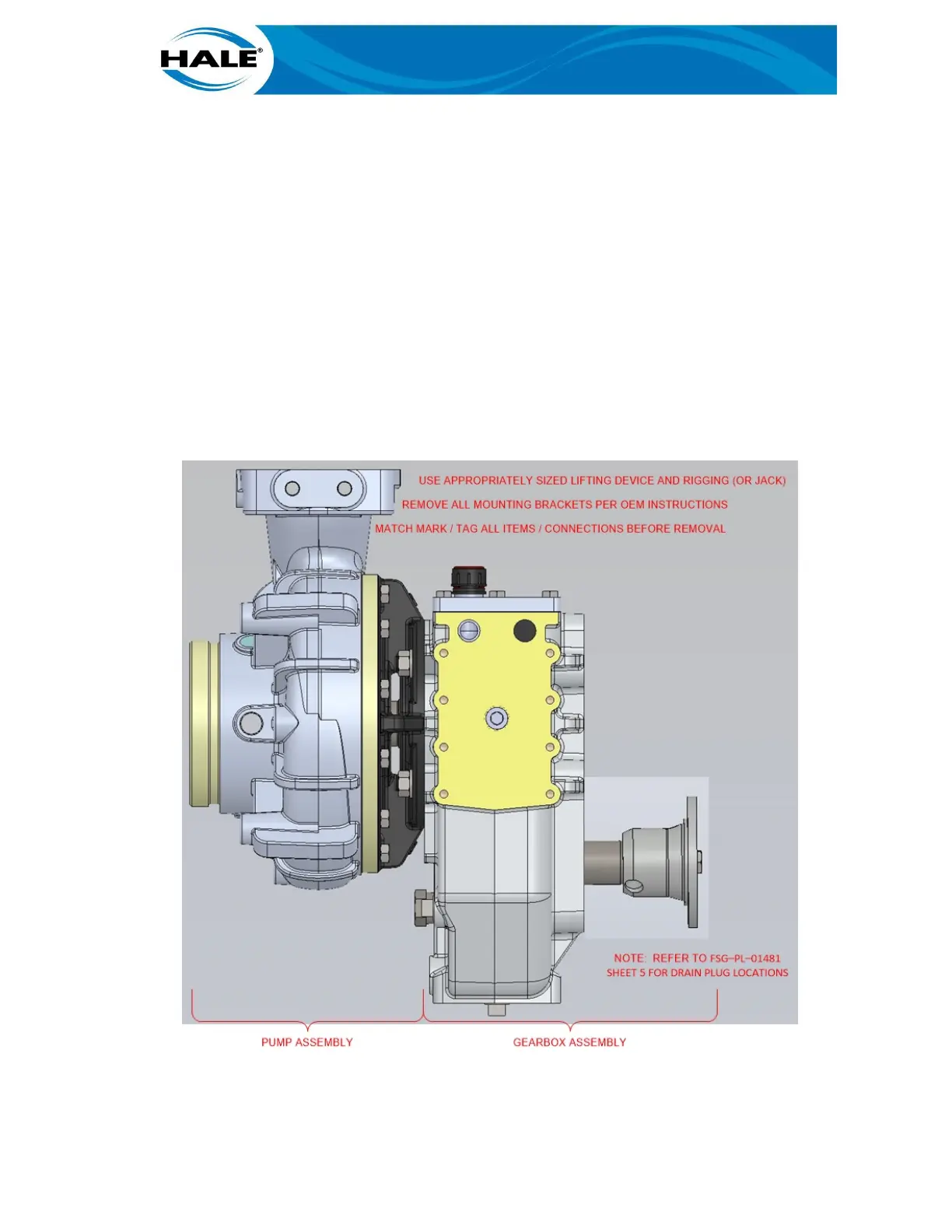

Figure 18. Pump And Gearbox Assembly R&R
Remove magnetic oil drain plug. (See Figure 17.) 3.
To Next Page
