HALE RSD - Figure 30. MBP Impeller R&R; Table 30. MBP;RSD Impeller R&R Tools and Consumables List

82

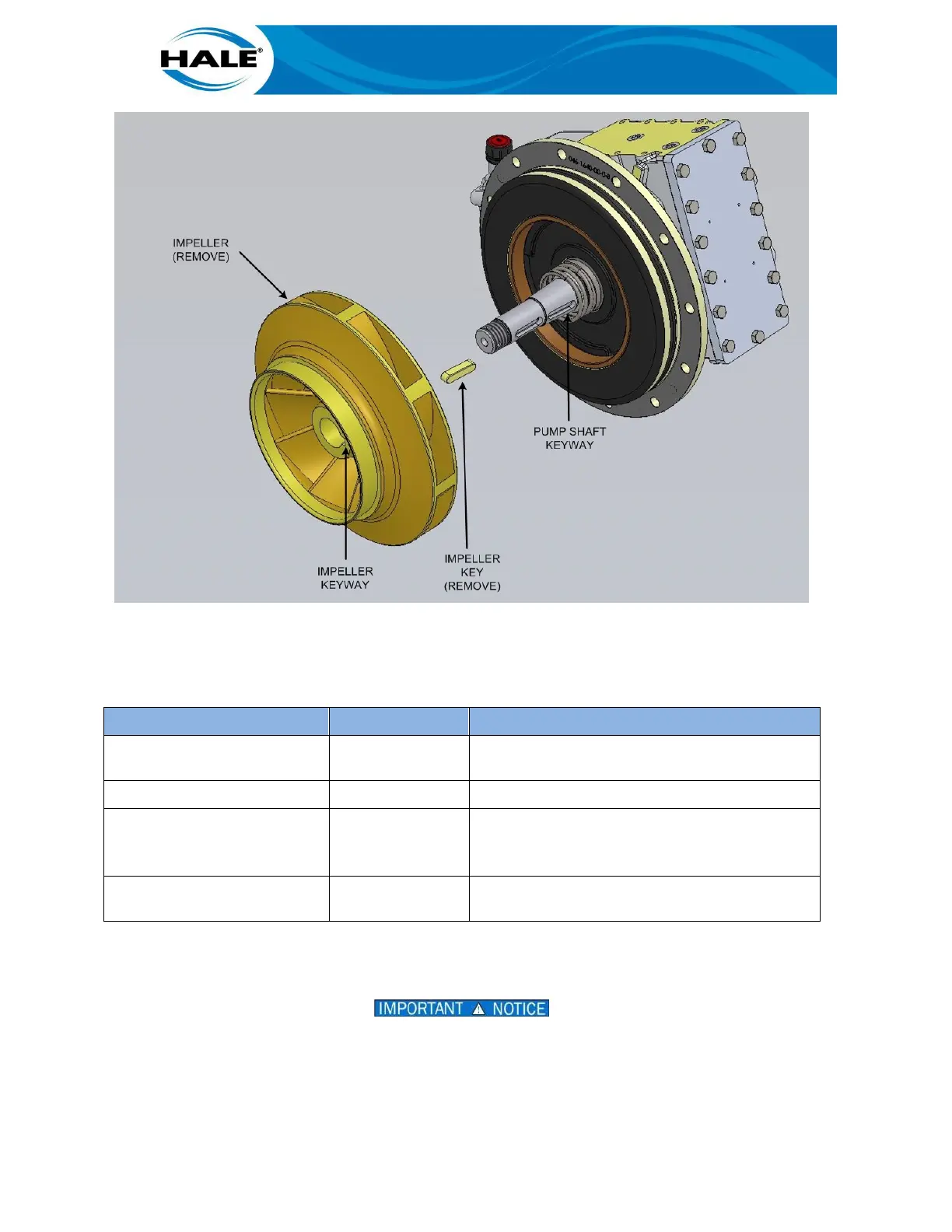

Figure 30. MBP Impeller R&R
Refer to Table 30 for a list of tools and/or consumables required for this procedure.
Table 30. MBP/RSD Impeller R&R Tools And Consumables List
Standard Tools
Special Tools
Consumables
PPE (Eye and Hand Protection) Puller Set
(See APPENDIX B)
Shop Rag(s) (As Required)
Brush (For Grease) Grease (See paragraph 5.7.2, page 49)
IMPELLER
<See FSG–PL-01486, Sheet 4, Item 7> (MBP)
<See FSG–PL-01487, Sheet 4, Item 21> (RSD)
Key (Impeller To Pump Shaft)
<See FSG–PL-01486 or –01487 Sheet 5 Item 3>
Perform the following to remove and replace the impeller.
MBP/RSD Impeller Removal
DO NOT STRIKE THE IMPELLER. STRIKING THE IMPELLER MAY RESULT IN IRREPA-
RABLE DAMAGE.
A. Pull impeller off pump shaft by hand if possible.
