HALE RSD - Figure 28. MBP Inducer R&R; Figure 29. RSD Inducer R&R

77

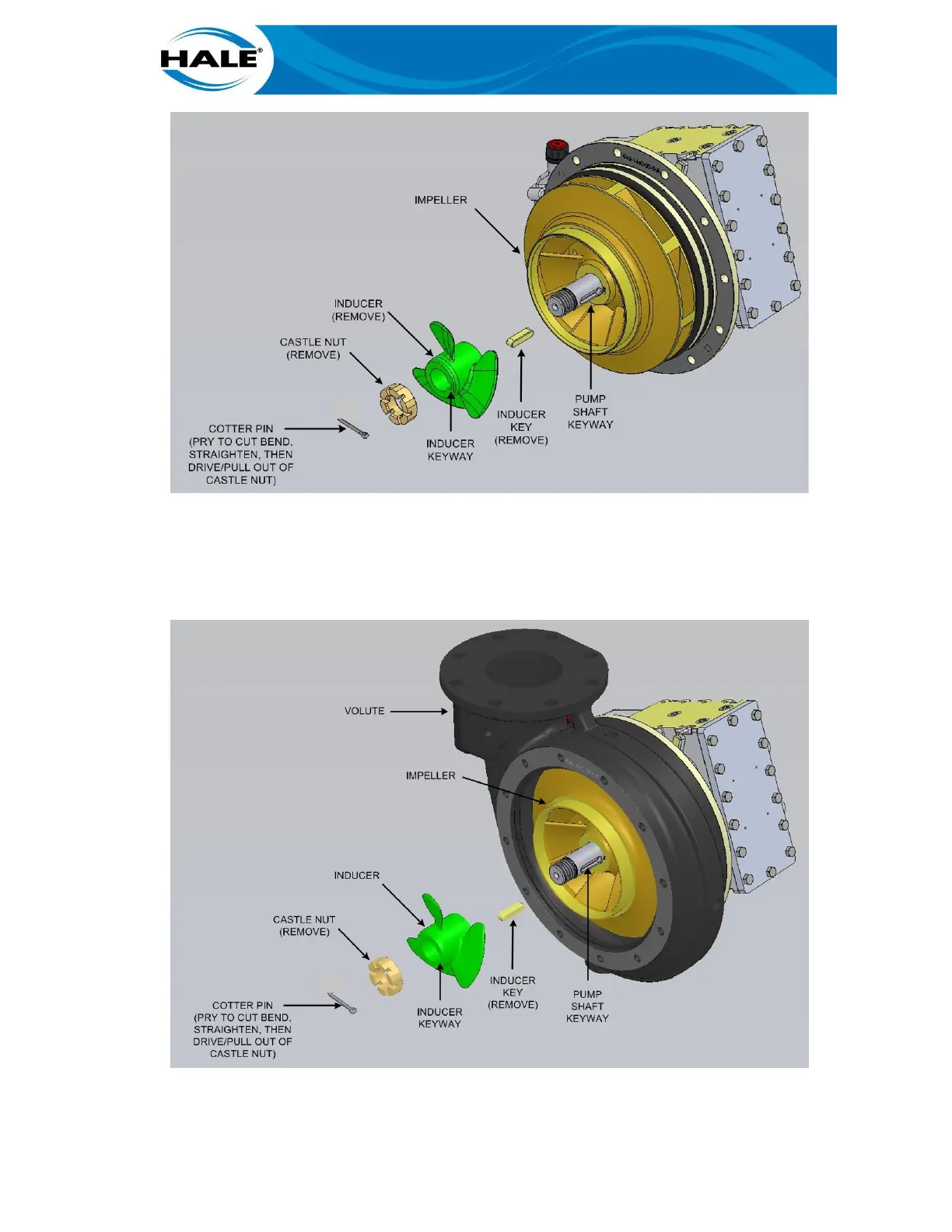

Figure 28. MBP Inducer R&R
If the pump is a RSD, prior to performing this procedure, remove the suction head as described
in paragraph 5.8.4.1, RSD Suction Head R&R (on page 67). Figure 28 shows the RSD pump with
the suction head removed and depicts the inducer removal.
Figure 29. RSD Inducer R&R
