5.8.4.3 AP/MBP Volute R&R
In addition to gasket/O-ring failure the volute requires removal to examine or access internal
pump components (clearance rings, impeller, mechanical seal, etc.). See Figure 26 for AP volute
removal. Typically the volute would not require replacement unless it has been damaged by al-
lowing the pump to freeze with water in it or a large piece of debris was allowed into the pump by
not using or maintaining strainers.

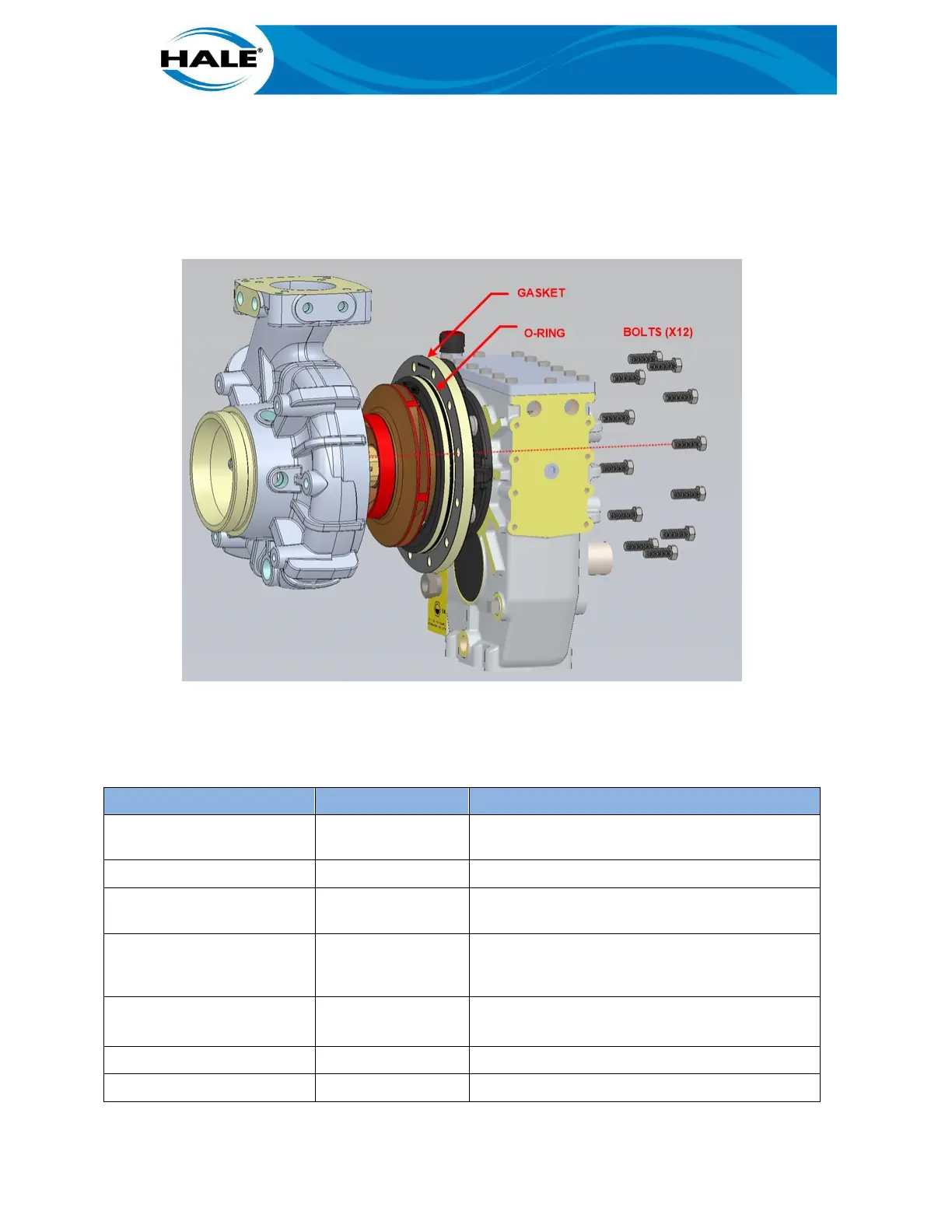

Figure 27. AP/MBP Volute R&R
Refer to Table 27 for a list of tools and/or consumables required for this procedure.
Table 27. AP Volute R&R Tools And Consumables List
PPE
(Eye and Hand Protection)
None Shop Rag(s) (As Required)
Gasket Scrapper O-ring Lubricant (See Table 20 )
Hooked-end Dental Pick
(or Hose Removal Tool)
O-RING, <See FSG–PL–01483 Sheet 4 Item 7>
(Volute to Pump Head)
5/8-in Wrench
(Or Ratchet Wrench)
(Or Pass Thru Ratchet)
Gasket <See FSG–PL–01483 Sheet 4 Item 6>
(Volute to Pump Head)
5/8-in Torque Wrench Volute: (ONLY ONE REQUIRED – SELECT FROM: )
<See FSG–PL–01483 Sheet 4 Item 1>
Loctite™ Clean-Up Solvent
Loctite™ 243 (Or Equivalent)
