Hammer HS 950 - Setting Up the Machine; Machine Overview

18
&
%
$
!
#
"
/
(
)
BL
BM
BN
BO
Edge sanders
HS 950
! Machine framel
" Sanding unit (tiltable from)
# Vacuum connector
$ Machine table
% side working table
& Drive motor
/ Infeed fence
( On/Off switch
) Rear cover abrasive belt
BL extraction flap (tiltable from)
BM Handwheel - Height adjustment
BN sanding belt oscillation
BO mitre fence (Accessories)
Setting up the machine
5 Setting up the machine
5.1 Overview

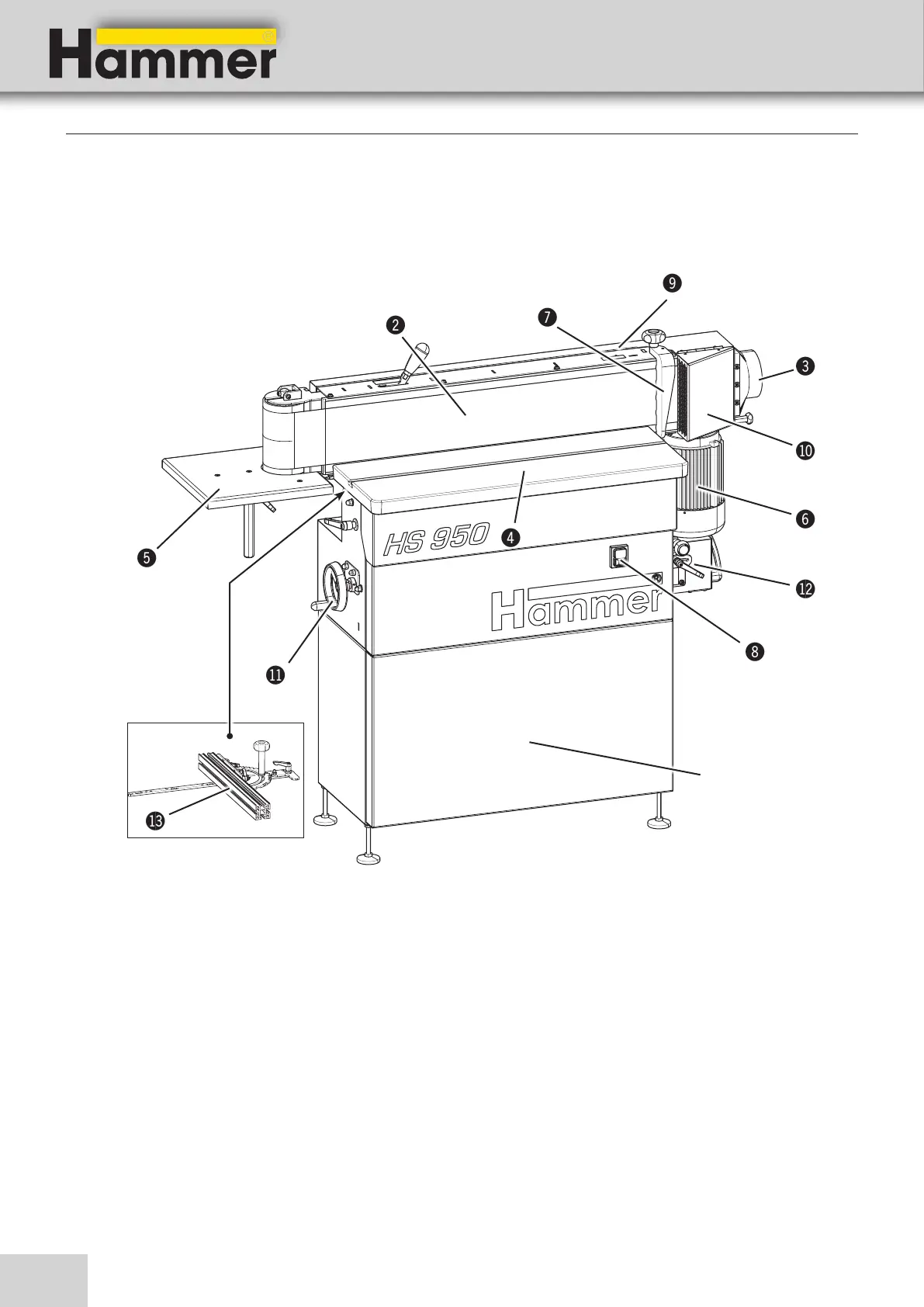

Fig. 5-1: Overview
