11.6 Adjusting the angle - Sanding module inclination
90° - Angle :
1. Before beginning any maintenance work on the
machine, switch it off and secure it against acciden-
tally being switched on again.
2. Release the clamping lever.
3. Loosen the locking nut.
4. tilt in 90 degrees direction
5. Place the test piece or 90° angle on the working
table and the grinding belt support.
6. adjust the fence screws (set at 90°)
7. Tighten the lock nut again.
8. Test the adjustment and if required, readjust.
! Clamping lever
" 90° stopscrew
# Locking nut
$ 90°- Angle
0° - Angle :
1. Before beginning any maintenance work on the
machine, switch it off and secure it against acciden-
tally being switched on again.
2. Release the clamping lever.
3. Loosen the locking nut.
4. tilt in 0 degrees direction
5. Place the test piece or 90° angle on the working
table and the grinding belt support.
6. adjust the fence screws (set at 0°)
7. Tighten the lock nut again.
8. Test the adjustment and if required, readjust.
! Clamping lever
" 90° stopscrew
# Locking nut
$ 90°- Angle

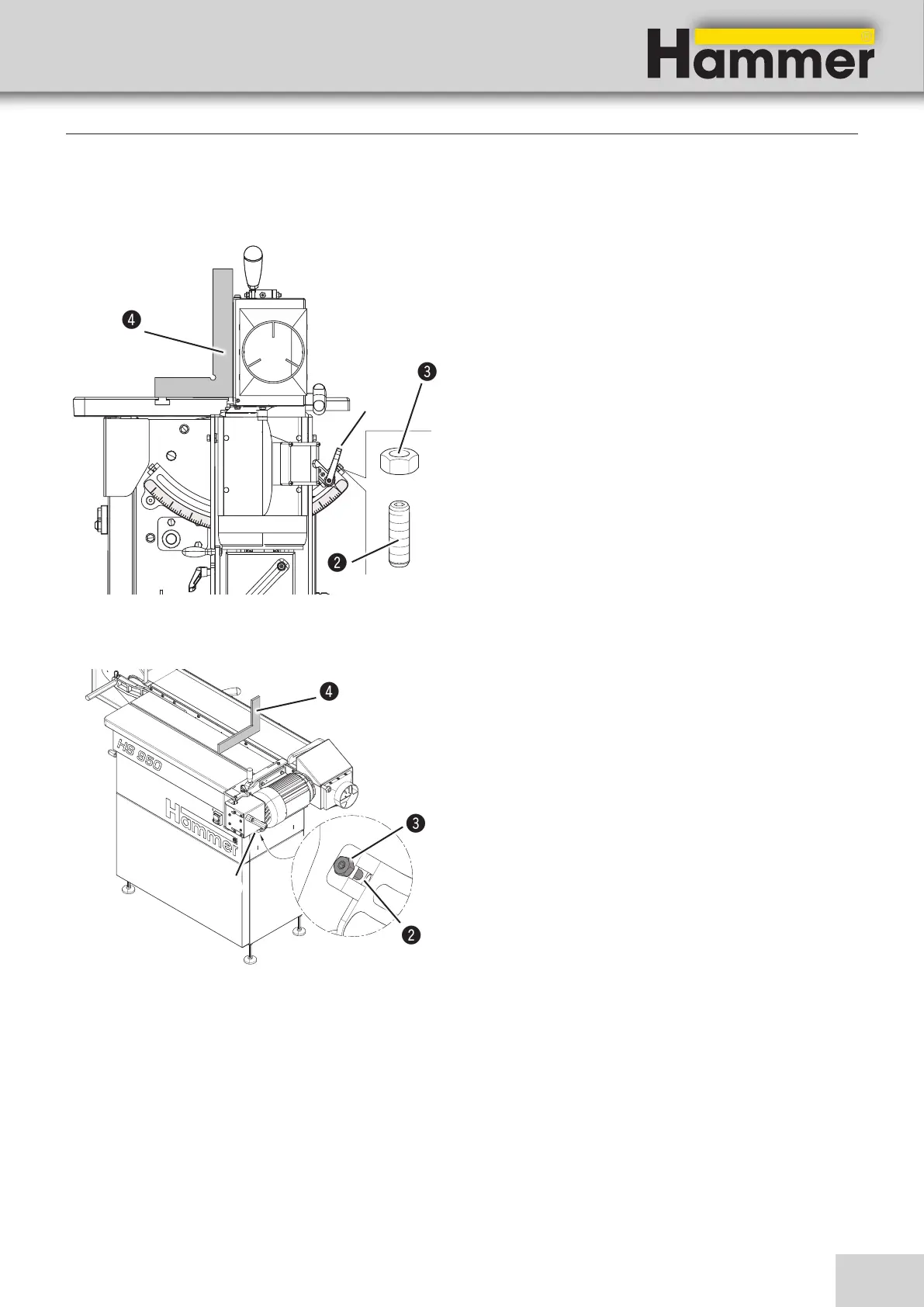

Fig. 11-2: Adjusting the angle - 90°
Fig. 11-3: Adjusting the angle - 0°
