Hammer HS 950 - Transport Locking Device; Transporting with a Crane

23
!
"
!
!
!
!
!
Edge sanders
HS 950
Transport, packaging and storage
6.2.1 Transport locking device
The machine is mounted to the pallet with transport
brackets.
Remove the transport brackets before moving the machine
to the installation location.
! Transport brackets

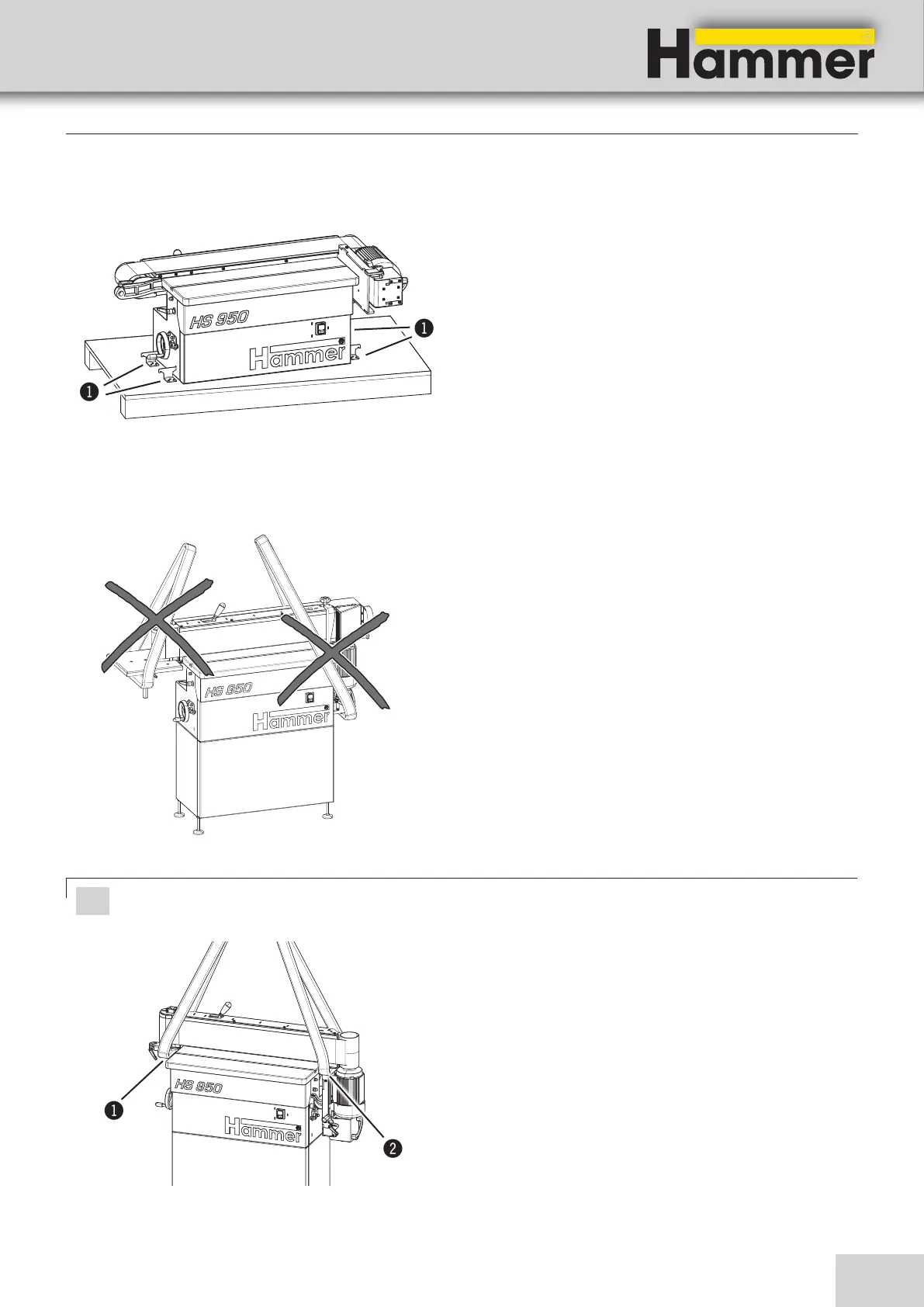

Fig. 6-1: Transport locking device
6.2.2 Transport with a crane
Fig. 6-2: Transport with a crane
Only use belts or chains to transport the machine.
Attention! Risk of material damage!
Do not lift the machine by its work table, extension frames or handwheels
Fig. 6-3: Transport with a crane
To lift the machine with the crane, the following compon-
ents must be removed:
• Rear cover abrasive belt
• Infeed fence
• side working table
Thread the belts or chains through the cutout holes in the
machine frame. Position 1/2
! Position 1
" Position 2
!
!
