Hammer HS 950 - Rear Cover Abrasive Belt Assembly; Infeed Fence Installation; Side Working Table Setup

29
"
#
!
.epsOutkennung:
!
"
#
!
"
#
"
Edge sanders
HS 950
1. Thread the infeed fence with the positioning pin on
the hole.
2. Tighten the clamping screw
! Infeed fence
" Clamping screw
# Positioning pin
1. Insert the guiding shaft of the side work table into the
hole. Place the worktable at the bottom.
2. Clamp the clamping lever.
! guiding shaft - side working table
" Bore
# Clamping lever
1. Hook the recesses of the rear abrasive belt cover
onto the retaining screws. Tighten the clamping
screws
2. To reassemble, follow the instructions in the reverse
order.
! Rear cover abrasive belt
" Clamping screws
# Retaining screws
Setup and installation

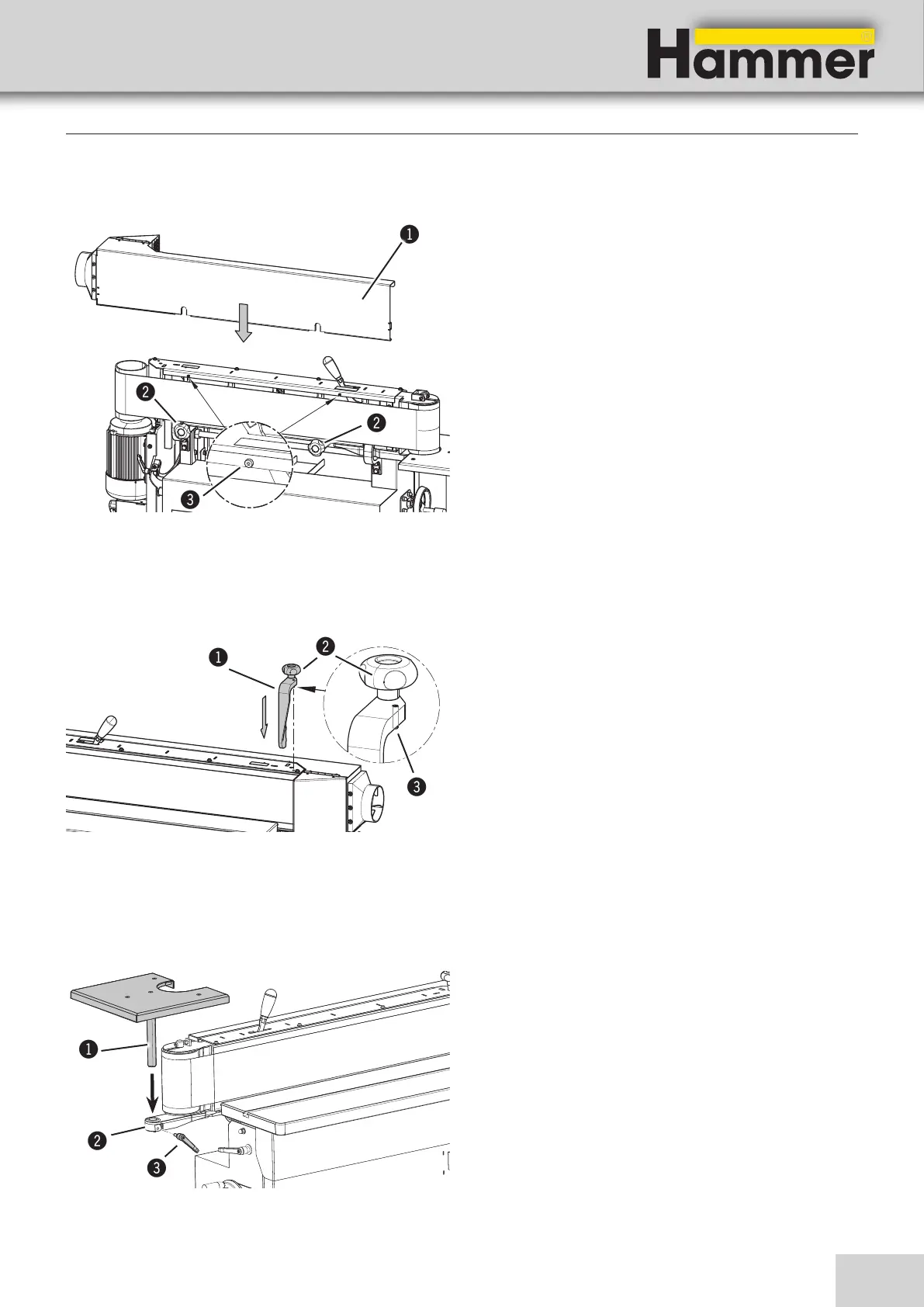

7.3.3 Assembly - Rear cover abrasive belt
Fig. 7-8:Assembly - Rear cover abrasive belt
7.3.4 Assembly - Infeed fence
Fig. 7-9:Assembly - Infeed fence
7.3.5 Assembly / Setting - side working table
Fig. 7-10: Assembly - Infeed fence
