Edge sanders
HS 950
10.3.1 Lubricating the height adjustment
1. Vor Beginn der Arbeiten muss die Maschine aus-
geschaltet und gegen Wiedereinschalten gesichert
werden.
2. Loosen the screws to remove the cover plate. (4 x
M6)
! Cover plate
" Screw (M6)
Lubricating the height adjustment
1. Release the clamping lever.
2. Move the worktable all the way to the lowest position
with the handwheel.
3. Clean the gear rack and gear wheel on both sides
and lubricate with normal machine grease.
4. Turn the worktable up to the highest position with the
handwheel and turn it to the lowest position again.
5. Clamp the clamping lever.
! Gear rack
" Gear wheels
Service
10.3 Maintenance work

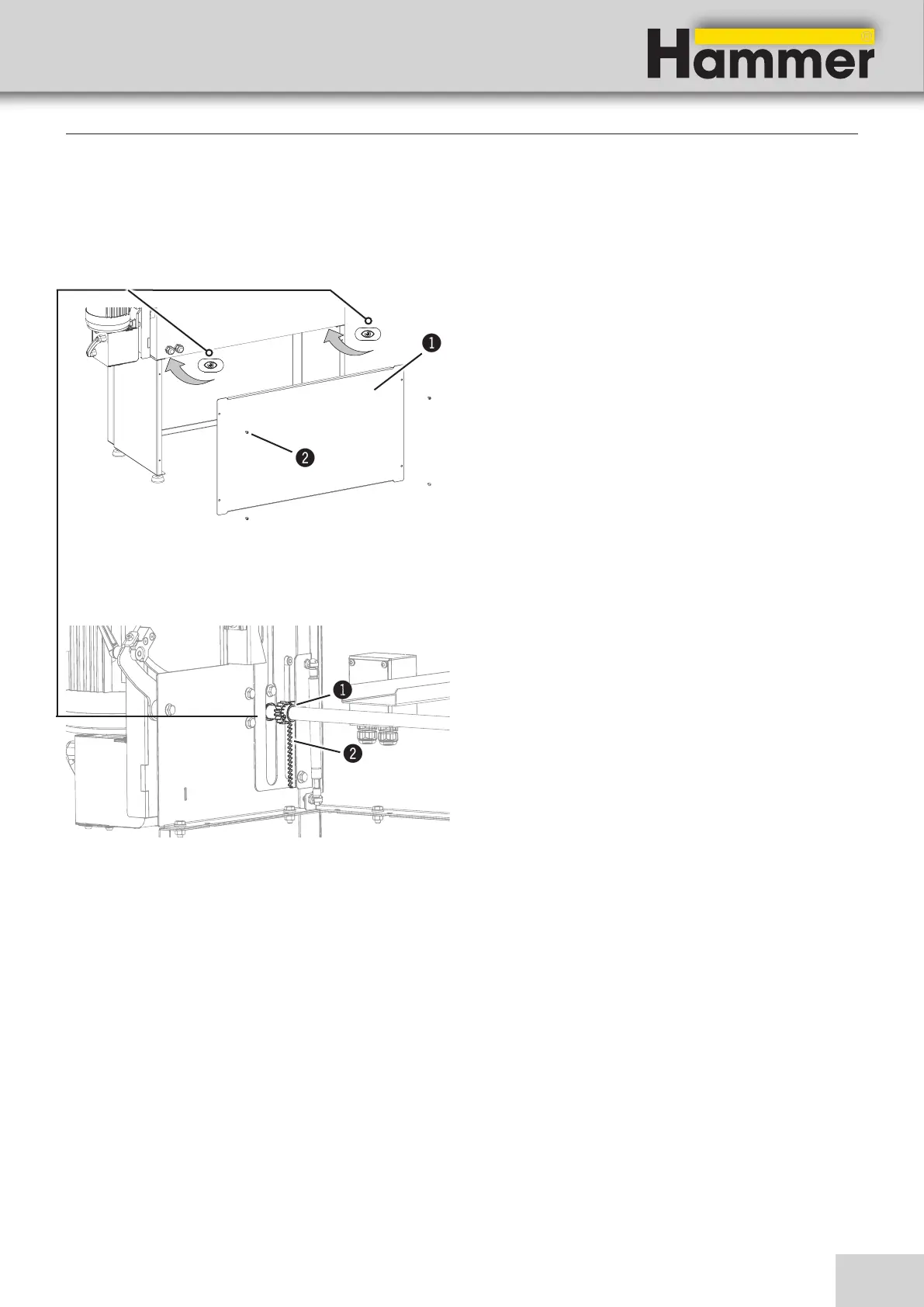

Fig. 10-1: Preparation - Lubricating the height adjustment
Fig. 10-2: Grinding on the roller
