6 - Maintenance
105

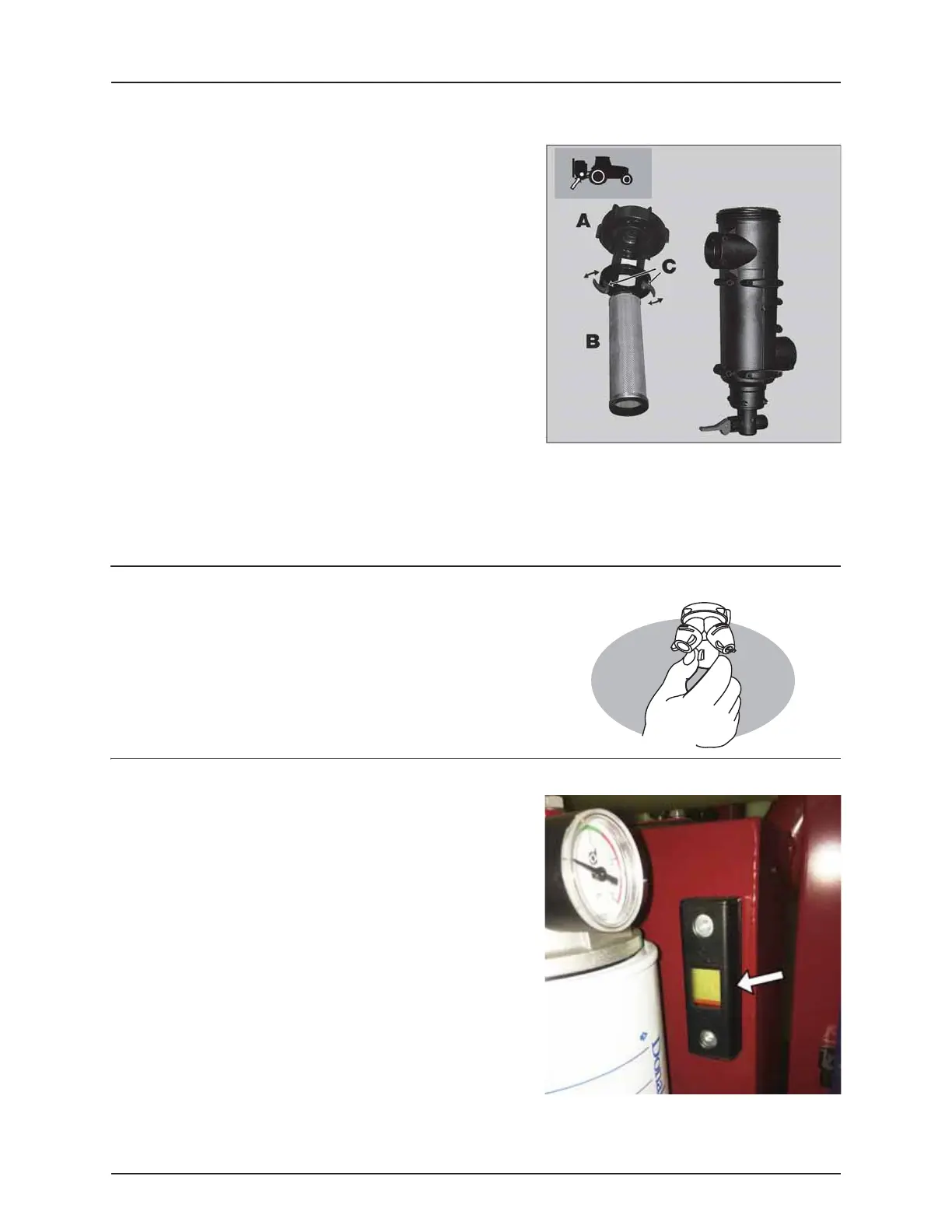

10 Hours Service - CycloneFilter
Servicing the Filter
1. Turn the pressure SmartValve to a function other than “Spraying”.
2. Unscrew the filter lid (A).
3. Lift lid and filter (B) away from the housing.
4. Turn the two locks (C) outwards to unlock the filter from the lid.
5. Separate filter from the integrated filter guide in the lid. Clean the
filter.
To Reassemble
1. Grease the two O-rings on the lid/filter guide. Due to small space
at the lid, use brush or similar item to apply the grease.
2. Mount the filter onto the recess (do not grease) in the lid/filter
guide.
3. Turn the two locks (C) inwards to lock the filter into position.
4. Place the filter/filter lid into the housing and screw the lid until it
hits the stop.
±
WARNING! Always wear protective clothing and gloves, before servicing the filter!
€
DANGER! Never open the CycloneFilter unless the pressure SmartValve is closed (turned to unused position).
Otherwise, contaminated spray liquid can escape when opening the filter, and drain the main tank contents
10 Hours Service - Nozzle Filters
The filters are located in the nozzle holder.
Check the filter condition and clean the filter.
10 Hours Service - Hydraulic Oil Level
Check the oil level in the tank. The oil level must cover the sight glass.
The minimum oil level is indicated by the red line.
If the oil level is too low, clean the area around the filling cap carefully
and fill fresh, clean oil.
For details on oil type, see “Recommended Lubricants” on page 95.
